Wood shredders
MS-80BD
Gasoline
90 mm
3 m3/h

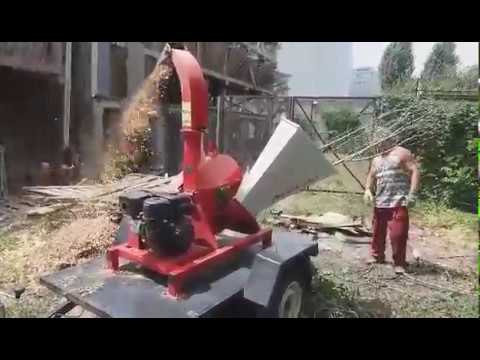

Wood shredder MS-80BD disk type with two input bins is designed for processing and disposal by the method of grinding branches, vines, leaves, bark and other garden waste. Wood shredder turns raw materials into technological chips. The resulting chips can be 10, 15, 20 and 25 mm in size. Wood shredder MS-80BD is equipped with a gasoline engine of brand WEIMA of 16 hp.
Technical parameters
Extended description
OVERALL DIMENSIONS AND MASS CHARACTERISTICS
Length:
1450 mm
Width:
787 mm
Height:
1390 mm
Weight:
120 kg
MAIN WORKING CHARACTERISTICS
Max. productivity:
3 m3/h
Soft wood max. diameter:
90 mm
Hard wood max. diameter:
50 mm
Size of splinter:
25, 20, 15, 10 mm
Number of knives / hammers:
20 pcs
Quantity of knives:
2 pcs
ENGINE CHARACTERISTICS
Engine power:
16 h.p.
Max. turns on engine shaft:
3600 rpm
Fuel type:
Regular
Fuel expenditure:
800 g/h

Wood shredder MS-80BD disk type with two input bins is designed for processing and disposal by the method of grinding branches, vines, leaves, bark and other garden waste. Wood shredder turns raw materials into technological chips. The resulting chips can be 10, 15, 20 and 25 mm in size. Wood shredder is completed with 3 sieves to change the fraction of crushed raw materials. The MC-80BD machine is capable of cutting branches up to 90 mm in diameter, depending on the humidity and the breed of the tree. The resulting chips can be used as fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating devices. Chips can also be used as mulching material or fertilizer for plants.

The main feature of the leaf chopper MC-80BD is its raw material loading system, which is two bins. The top-loading hopper is designed for grinding leaves, bark and garden waste. The side loading hopper is designed for grinding branches up to 90mm in diameter. Unloading of the chips is carried out through a direct bunker embankment.

The working body of the MC-80BD shcheporez is a disk on which are placed two blades made of 55WCrV8 steel. Necessarily, the knives undergo a heat treatment process on a modern HDTV unit.

The productivity of the MC-80BD wood shredder is a maximum of 3 cubic meters of finished products per hour of work. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.

Wood shredder MS-80BD is equipped with a gasoline engine of brand WEIMA of 16 hp. fuel consumption is only 800 g / h of gasoline A-92. This engine is one of the highest quality in the territory of Ukraine, service centers of the company are located in each region. The motor is protected from overload by a special friction clutch of our design. The engine is covered by a 12-month manufacturer's warranty.

Wood shredder MS-80BD is equipped with pneumatic wheels for ease of movement shcheporez across the territory.

The grass chopper  is equipped with a hook that is used to transport the cutter with a quad bike or a motor block. The hook is easily removed when it is not needed or for storage.

Wood shredder MS-80BD is completely made in our production. We control the quality of all stages of our production, all the landing surfaces undergo mandatory grinding. Quality control of welds is carried out. All structures are stripped before painting. The cutter is covered with powder paint, which significantly extends the life of the shredder.

We are confident in our products, so we provide a 36-month warranty for the MC-80BD. In addition, as a manufacturer, we carry out warranty and post warranty service of MC-80BD cutter.

Buying a cut from us you get a reliable assistant on the way to your energy independence!

Tell your company manager if you would like to purchase a shredder by installments. Call or fill out the feedback form now.
