ARPAL MAX Wood Shredder
MK-170TR-B
ARPAL MAX Wood Shredder
335 000₴
Wood Shredders

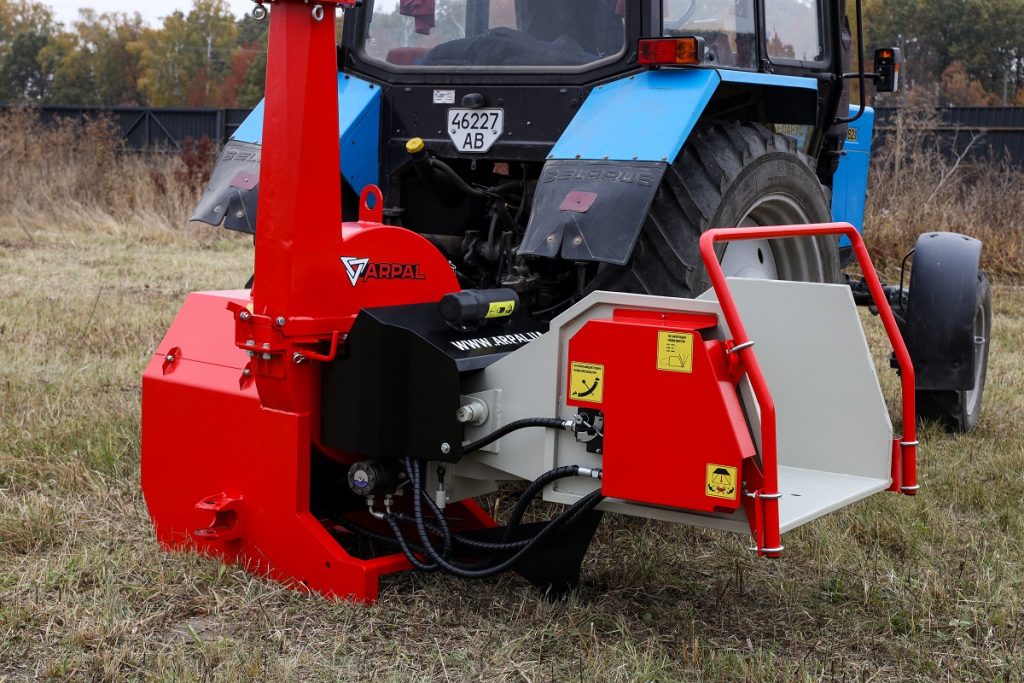

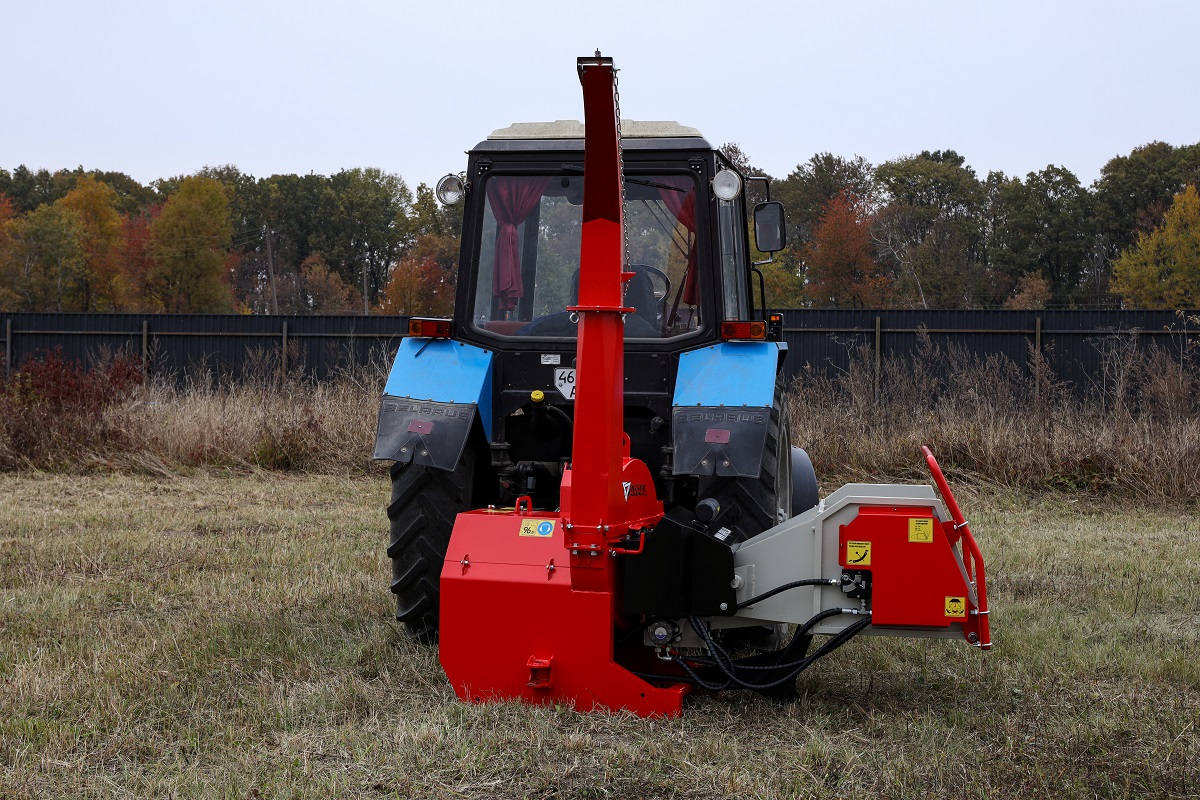

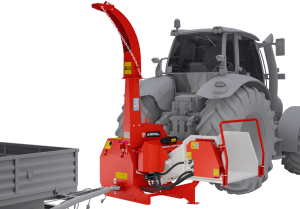

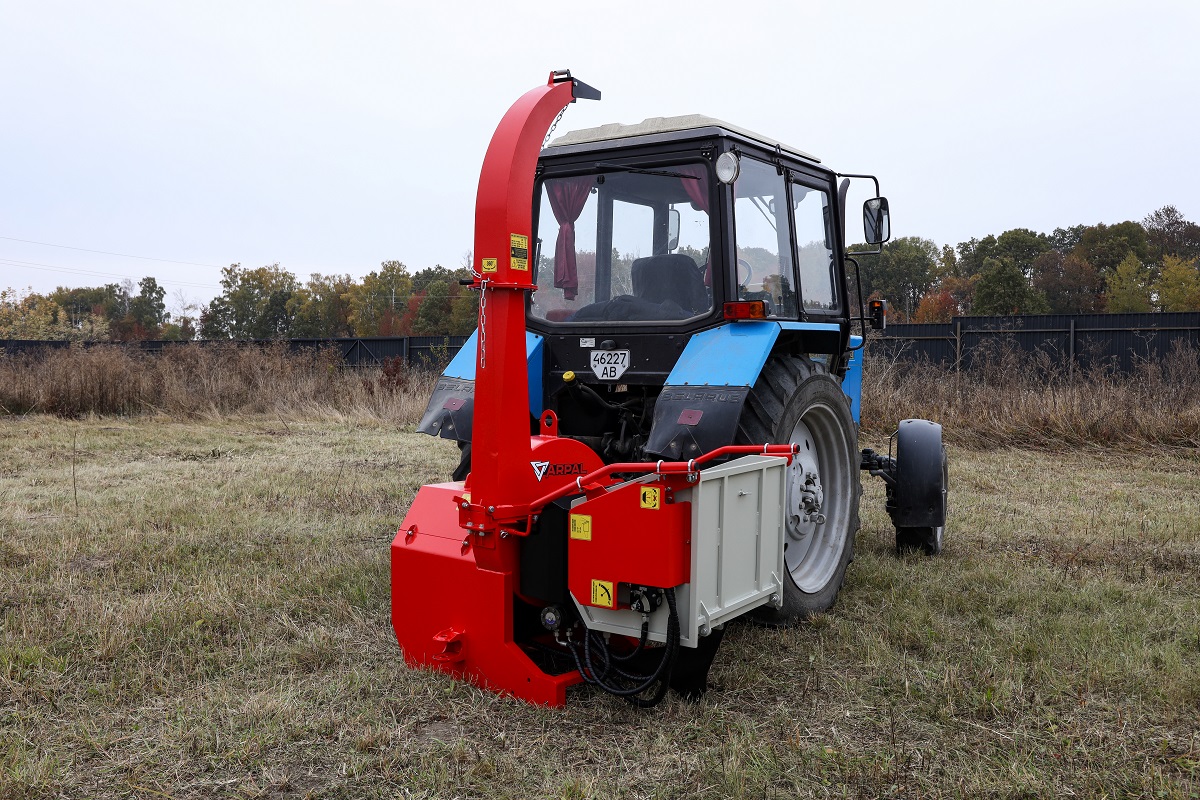

ARPAL MAX Wood Shredder

with Hydraulic Feed for Tractors

SKU: MK-170TR-B
Availability: On backorder
335 000₴
Delivery:
Store Pickup, Nova Poshta
Payment:
Cash, Visa/Mastercard
Warranty:
3 years
Installment plan:
5 months interest-free
Up to 36 months with a fee
State Compensation:
25% for agribusinesses
Description Specifications Manual Warranty Installment plan Compensation Technologies Service and support Wholesale purchases Payment and delivery

description

Maximum performance.
The ultimate equipment for the toughest tasks. Designed for professionals who handle high volumes, it delivers exceptional power and unmatched reliability to keep operations running without interruption.

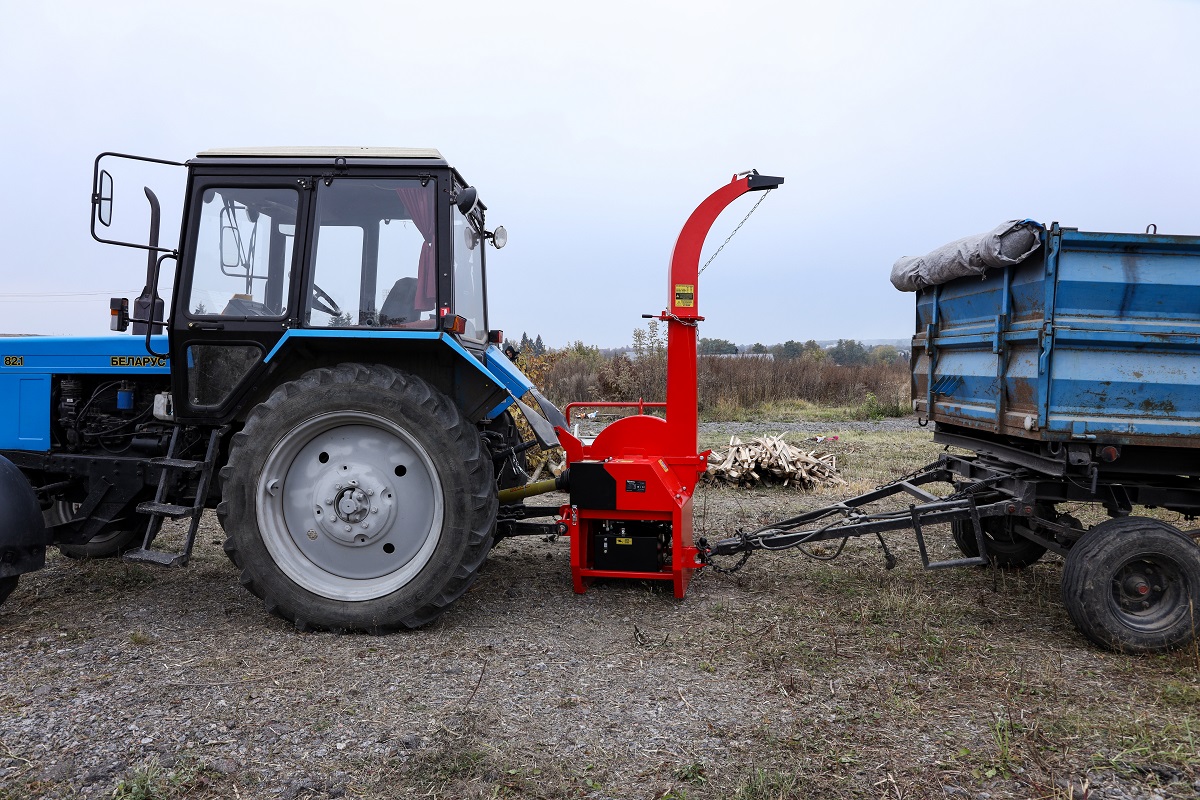

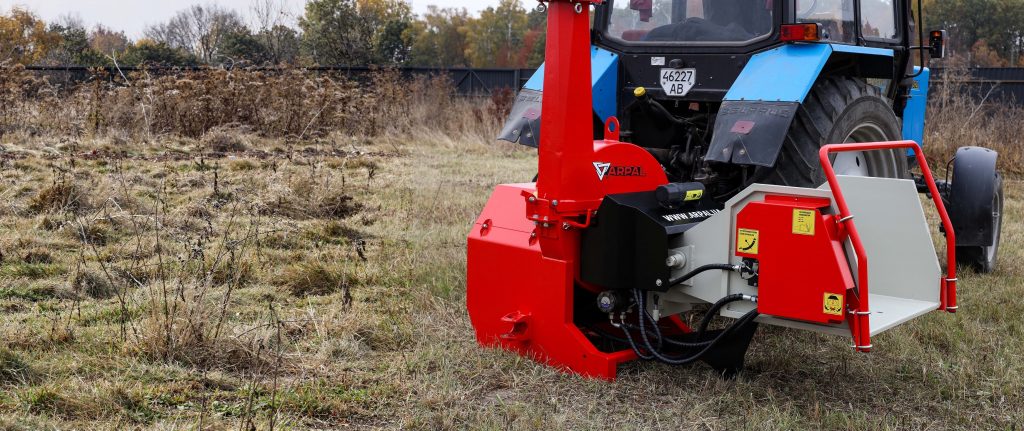

MK-170BD is a tractor-mounted shredder from the ARPAL MAX series, equipped with a hydraulic feed system that delivers branches to the cutting mechanism. The wood shredder is designed for processing the thickest branches with a diameter of up to 170 mm. This machine provides maximum power for professionals working with high volumes, such as forestry enterprises, municipal services, arborists and contractors responsible for maintaining large areas. It is an ideal solution for disposing of wood waste after site clearance or forest belt maintenance, as well as for producing low-cost fuel.
The model delivers exceptional performance, safety, and reliability, fully compliant with the highest European standards.

Download Manual

Detailed steps for connection,
setup, and maintenance.

Download

It is a wonderful choice if you want to

Obtain wood chips in the 5-50 mm size range, without “chewing”, and with consistent discharge through the directed chute.

Shred branches up to 170 mm in diameter, including softwoods such as willow and poplar.

Operate with peace of mind – thoughtful protection and strict compliance with EU regulations ensure safe and reliable performance.

Have a shredder compatible with tractors with a power of 50 HP.

Independently adjust the discharge direction into a cart, a bag or directly onto the ground.

Have a reliable assistant with a 3-year warranty and friendly support that is always just a call away.

specifications

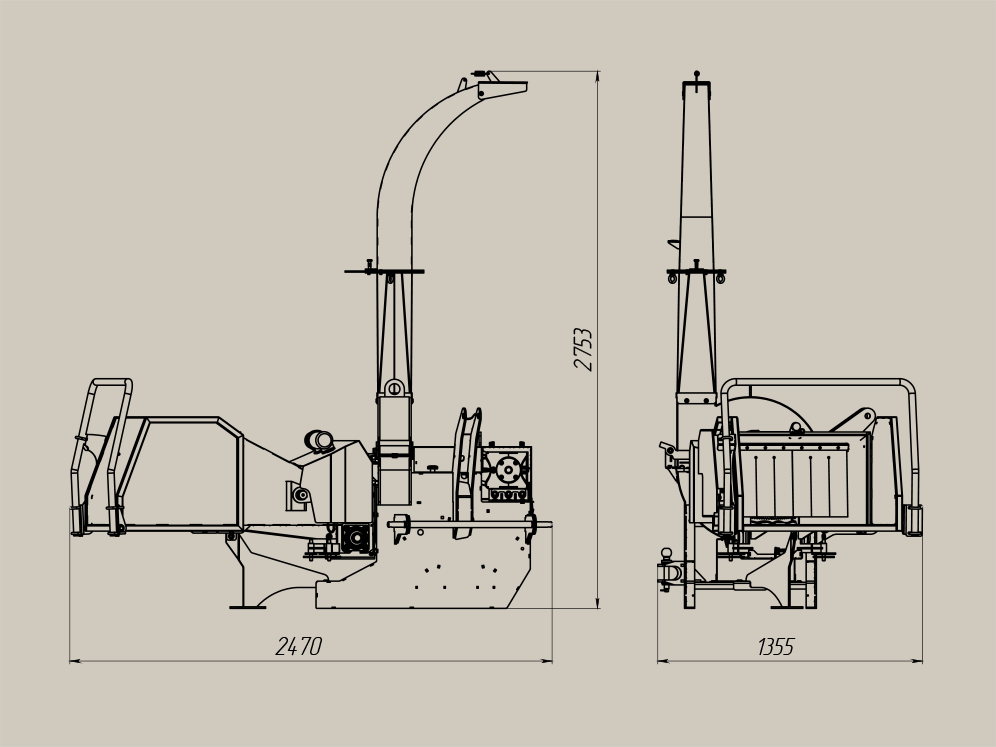

OVERALL DIMENSIONS AND WEIGHT CHARACTERISTICS
Length 2470 mm
Width 1355 mm
Height 2753 mm
Weight 710 kg
Diameter of the tractor mounting axle 28 mm
MAIN OPERATING SPECIFICATIONS
ENGINE SPECIFICATIONS

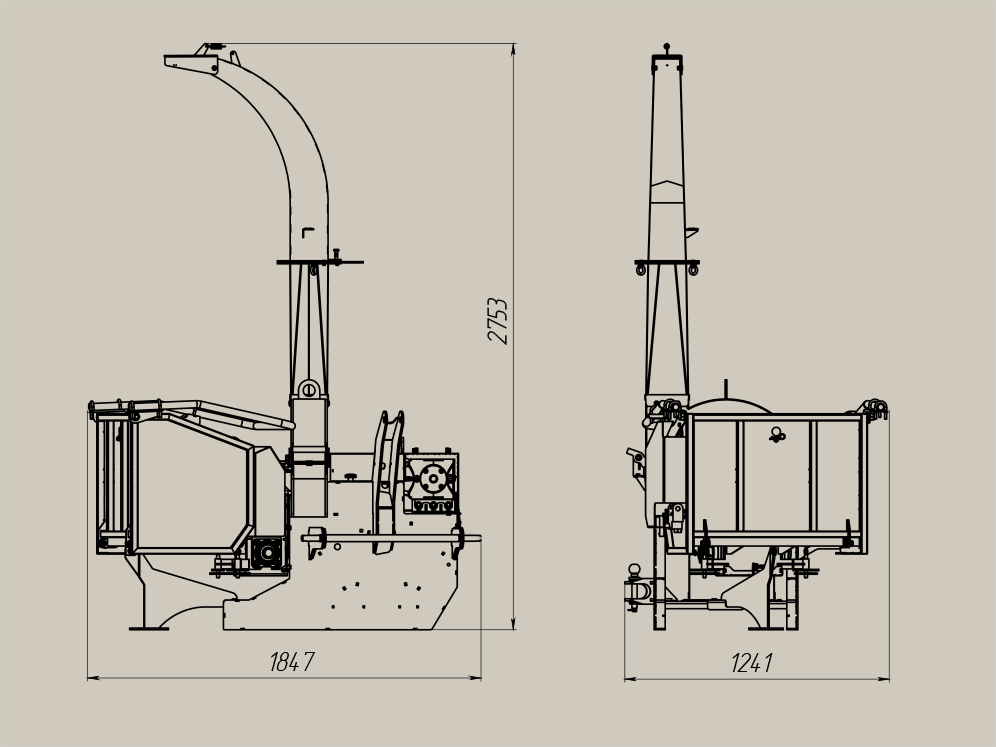

Storage specifications
Length 1847 mm
Width 1241 mm
Height 2753 mm
Weight 710 kg

Related products

0%
Installment Plan
25%
Compensation
ARPAL Light Wood Shredder

with a gasoline engine

49 000₴
0%
Installment Plan
25%
Compensation
ARPAL Classic Wood Shredder

with a gasoline engine

66 000₴
0%
Installment Plan
25%
Compensation
ARPAL PRO Wood Shredder

with a gasoline engine on a trailer

141 000₴
0%
Installment Plan
25%
Compensation
ARPAL PRO Wood Shredder

for tractor

76 000₴
69 000₴
0%
Installment Plan
25%
Compensation
ARPAL PRO Wood Shredder

with a gasoline engine

104 000₴
99 000₴
0%
Installment Plan
25%
Compensation
ARPAL MAX Wood Shredder

for a tractor with an Antistress system

389 000₴
0%
Installment Plan
25%
Compensation
ARPAL MAX Wood Shredder

with a gasoline engine on a trailer

520 000₴
509 000₴
Conveyor to AM-120BD-K
100 000₴
Conveyor to AM-120TR-K
110 000₴
Conveyor to AM-200BD-K
Conveyor to AM-200TR-K
135 000₴
Dual-bagging attachment
6 000₴
Calibration sieve 20 mm

for ARPAL Classic wood shredder

700₴
Calibration sieve 15 mm

for ARPAL Classic wood shredder

700₴
LineCut knife set (drum) PRO series

2 pcs

4 000₴
CircleCut knife set for MAX series

6 pcs

12 000₴
Go to products

StormBlade Shredding Technologies

It cuts confidently and discharges evenly, even when cutting wet or thin branches.
It is a well-designed package comprising a drum with air blades, hardened AISI 4140 blades, an adjustable counter-blade and an intelligent Antistress branch feed system. Together, these components ensure a clean cut and stable operation while reducing the load on the engine. There is no “chewing”, stalling or issues with chip discharge.

TurboCut Cutting Unit

  • Stable cutting and flywheel energy. The disc is equipped with four circular knives that uniformly shred branches, creating a powerful airflow that easily ejects the chips through the discharge chute.

  • The disc is made of 20 mm-thick steel and has a diameter of 524 mm and a weight of 34 kg. Its substantial mass enables it to function as a flywheel, accumulating kinetic energy and reducing the load on the engine. Integrated blades generate an intensive airflow based on the fan principle, ensuring that chips are discharged evenly and without clogging. After welding, the disc undergoes mandatory balancing to eliminate vibrations and prevent premature wear.

20 mm
Disc thickness

It doesn’t clog at all. It discharges the chips consistently even when the branches are wet – it’s really convenient.

Ivan, private user, Volyn Region

LineCut Blades

  • Cut longer. Hold their edge. Impact resistant. The blades are made from AISI 4140 alloy steel, which can withstand heavy loads without chipping and will stay sharp for a long time, even when processing dry hardwoods.

  • High-impact toughness AISI 4140 tool steel is used. The cutting edge undergoes heat treatment using the HFC (High-Frequency Current) induction hardening method, combining a hard surface (60 HRC) with a ductile core. This enables the blades to withstand impact without breaking and to operate stably even under intense loads. The drum blades and hammers are made of AISI 5140 steel.

  • Hardened cutting edge
    (60 HRC)

I was cutting dry hornbeam all day long—the blades are like new. They didn’t dull or chip. Extremely impressive quality.

Roman, Lviv Region

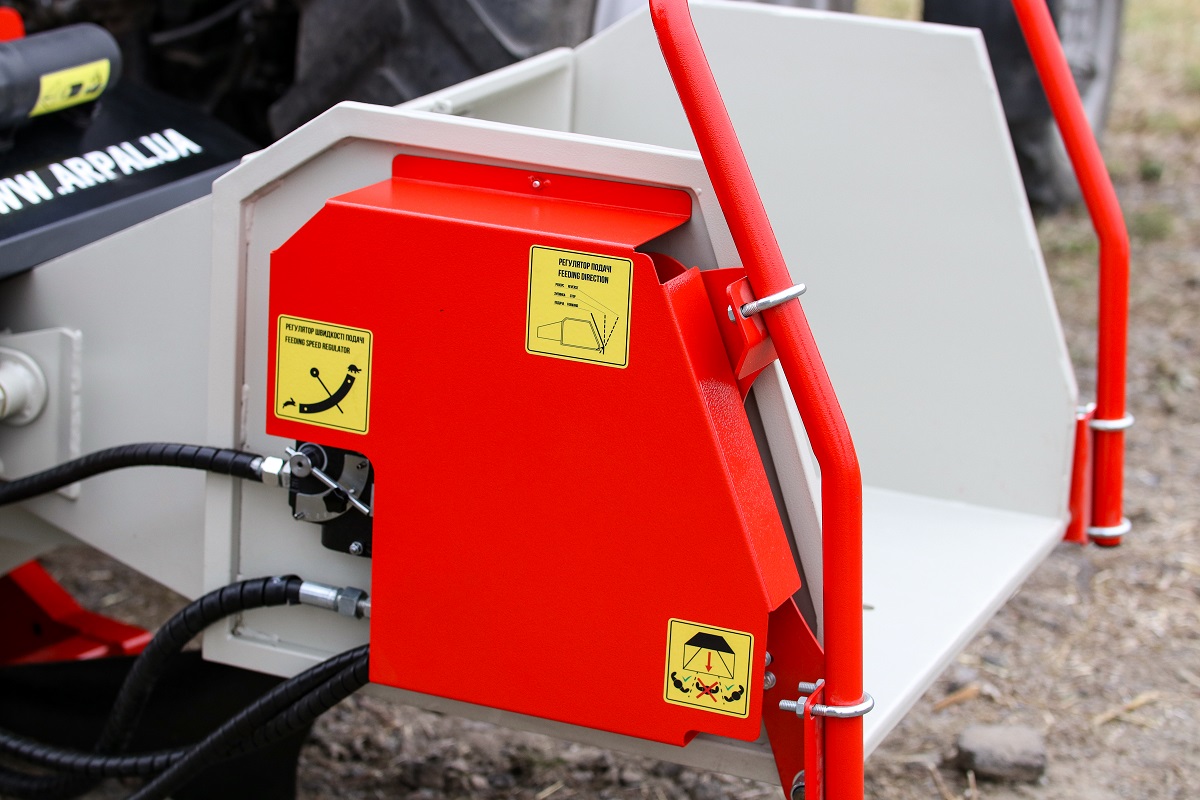

Hydraulic Feed System

  • Thanks to the hydraulic system, branches are fed to the knives automatically. The operator can set the feed speed and stop or reverse the branches with a single movement of the handle, making the process fast, convenient and safe.

  • The hydraulic system is powered by an independent pump that drives the feed rollers via two hydraulic motors. The feed speed is adjusted using a specialised control valve – set to a faster speed for thin branches and a slower speed for thick timber. The control handle has three settings: feed / neutral / reverse, and also functions as an emergency stop. The system is fully autonomous and does not require the hydraulics of the tractor.

The feed operates smoothly and powerfully. You can really feel that this is high-quality machinery!

Adjustable Counter-blade

  • It secures the branch for precise, even cuts. The adjustable, ground counter-blade holds the branch firmly in place during the cutting process, ensuring clean cuts without “chewing”, particularly when processing thin or flexible wood.

  • Thanks to its precision-ground surface, the counter-blade is installed with minimal clearance to the main knives. The counter-blade can be moved closer to the drum as the knives wear down via slots on the body. This design ensures secure branch fixation and consistent shredding quality.

12.9
Bolt grade

ARPAL Total Protect Security Package

Security isn’t a luxury — it’s a standard.
ARPAL Total Protect offers comprehensive solutions to safeguard you and your equipment, ensuring a safe and worry-free work environment.

Certificates
of conformity
to EU standards

  • We are a trusted brand in Germany, the UK, Switzerland, Ireland, and Australia. ARPAL is available in over 20 countries, thanks to its compliance with strict EU safety standards. This technology is rigorously tested — and it truly sets the standard.

Ensuring the chipper meets occupational health and safety standards is crucial for us. Thanks to ARPAL’s certification, we can confidently put it into operation.

Serhiy, agricultural company, Lviv region.

The machinery complies with
a number of standards, including:

  • EN 13525:2020 — protection against accidental contact with knives
  • EN ISO 12100:2010 — designed for safety with minimal risk
  • EN ISO 13854:2019 — optimal clearances to safeguard hands
  • EN 1005-4:2008 — ergonomic design to prevent physical overload
  • EN ISO 4413:2010 — stable hydraulics, without leaks
  • EN ISO 3744:2010 — noise levels below 80 dB, ensuring comfort during extended use
  • EN 55012:2009 — electromagnetic compatibility; does not cause radio interference

These standards are more than just a formality. They ensure safe operation, precise control, hand protection, and consistent material feeding. ARPAL represents a mindset that values not just productivity, but also the people who operate the machine every day.

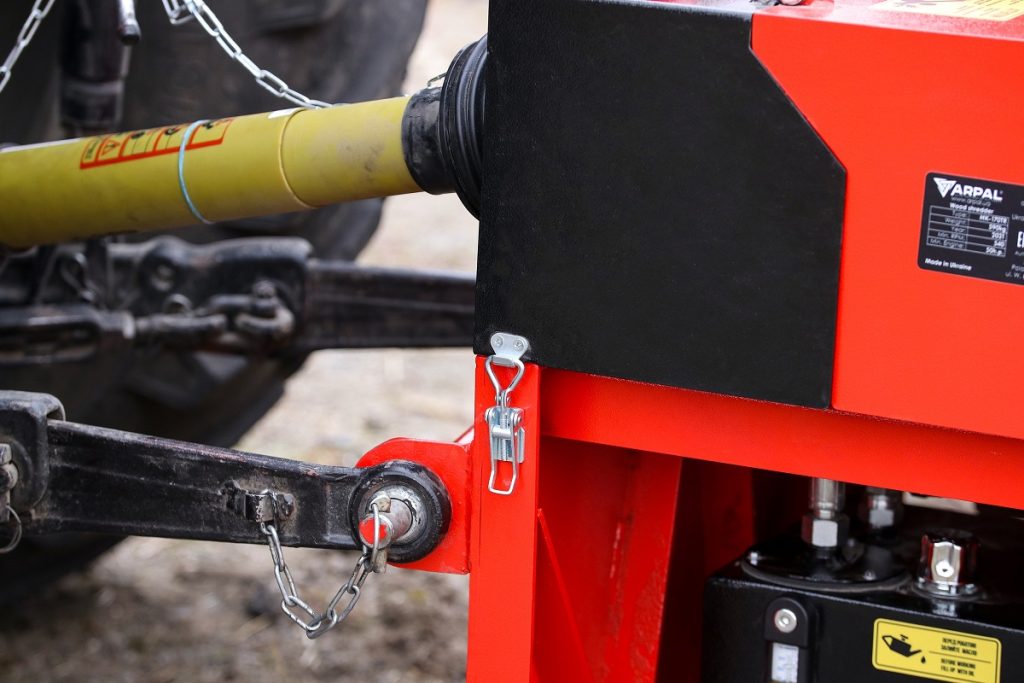

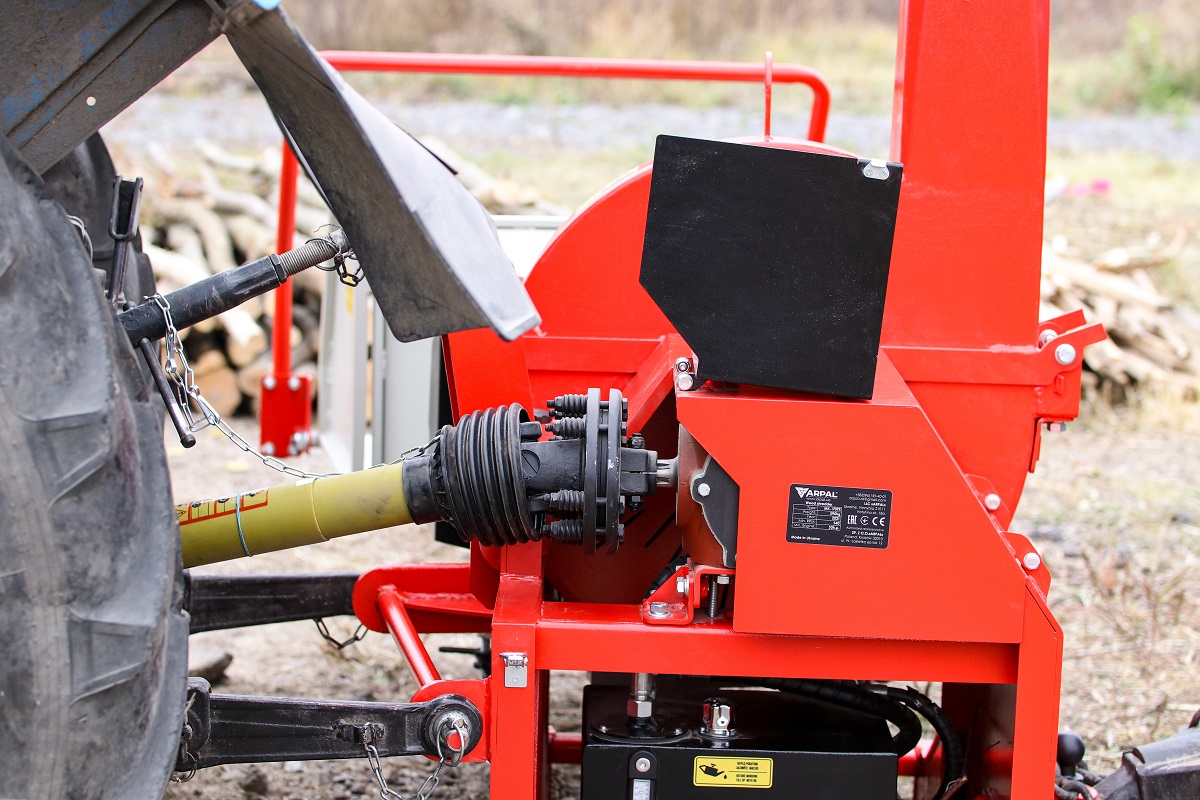

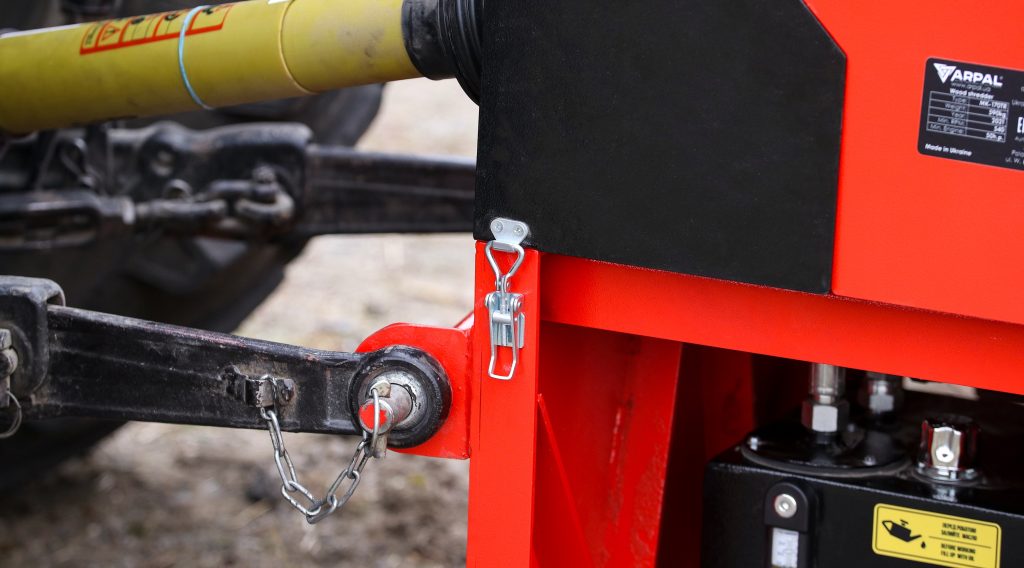

Using a Cardan Shaft
With a Friction Clutch

  • For optimal safety and performance, we recommend connecting the wood shredder to the tractor using a Class T5 cardan shaft equipped with a friction clutch.

    At a critical moment, this system absorbs the impact, preventing damage. Instead of the tractor breaking down or coming to a halt, the wood shredder stops, keeping your equipment safe and intact.

  • The clutch is composed of friction discs compressed by spring-loaded bolts. The force of the springs determines the moment of operation. Operating principle: when the shredder knives become jammed, the clutch discs begin to rotate, disengaging the load from the tractor.

  • ⚠️ The cardan shaft is not included with the wood chipper, but it is available for purchase separately from us.

A few times it happened so that the branch was just too big. The engine didn’t stall – it simply idled. I stopped the PTO, removed the branch and carried on. It’s smooth and stress-free.

Mykola, private gardener.

An Extended Hopper

  • You simply can’t reach the knives — the hopper is designed to make it physically impossible.

  • The input hopper’s depth and design comply with European safety standards for garden machinery.

  • Hydraulic Feed Handle

The feed operates smoothly and powerfully. You can really feel that this is high-quality machinery!

Protective shields and curtains

  • All hazardous elements are fully protected with guards, preventing accidental contact with the belt or flywheel. Yet, when maintenance is required, accessing these parts is quick and convenient.

  • The transmission components (clutch, belt, and pulley-flywheel) are enclosed within a double-sided casing for enhanced safety. The hopper allows crushed raw materials to be ejected in one direction only, minimizing the risk of injury. Additionally, the input is equipped with a protective curtain to guard against flying chips.

When I work, I don’t worry about my hands or clothes. Everything is closed. If I need to remove the casing, it’s quick and easy — I don’t have to spend an hour disassembling the equipment.

Taras, landscape designer.

ErgoBase functional design

ARPAL shredders are designed with convenience, durability, and smart functionality in mind. Simply switch it on, and it works — no complicated settings or adjustments needed.

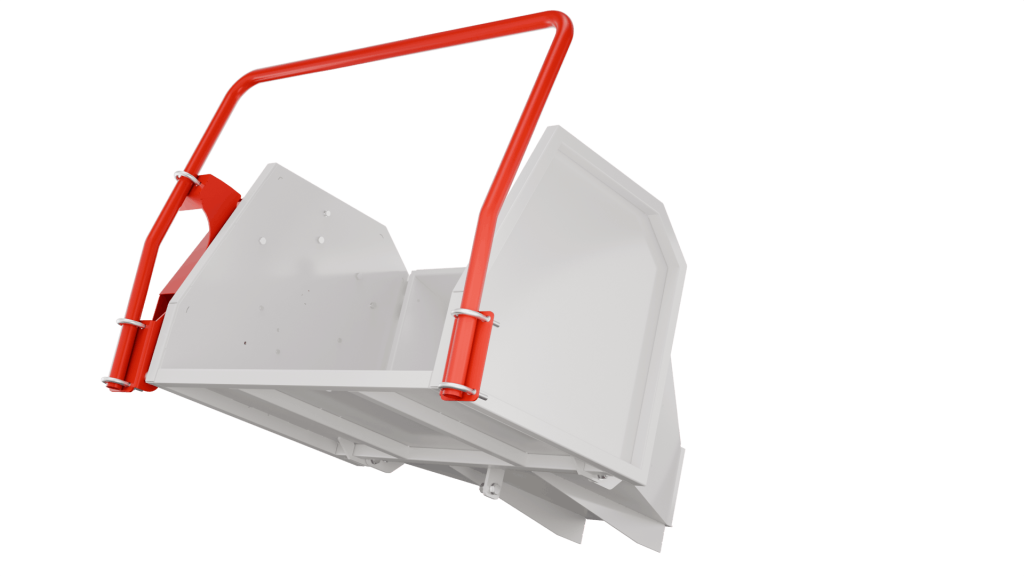

Reinforced Input Hopper

  • A robust bunker built to withstand impacts. During operation, branches frequently hit the bunker walls. Therefore, we designed it to be as rigid and deformation-resistant as possible.

  • The hopper is reinforced with additional stiffening ribs around the perimeter and has a thickened base for protection against impacts from branches. Thanks to its solid, rigid design, it remains stable even when carrying heavy loads for long periods of time. High durability that can support the weight of an adult – you can comfortably sit or stand on top of it.

Not some flimsy tin shed — the bunker is solid. It can take a hit and hold.

Vasyl, homeowner

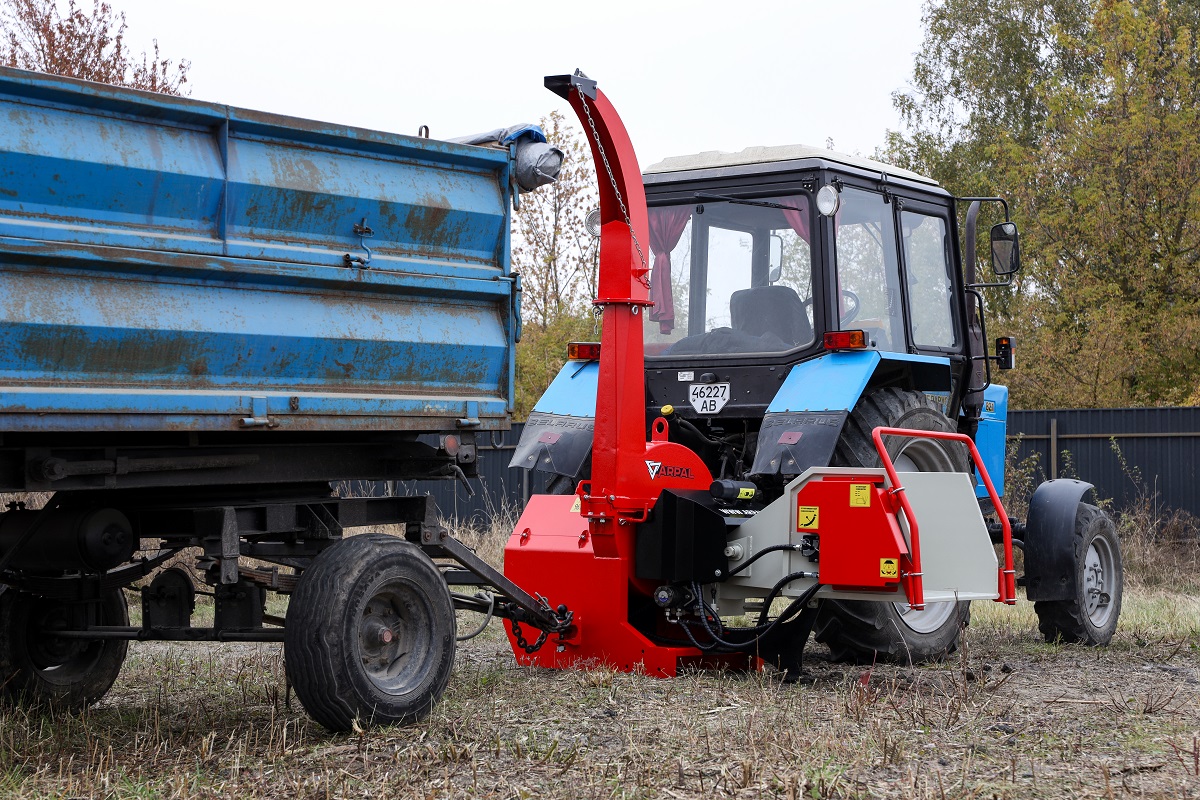

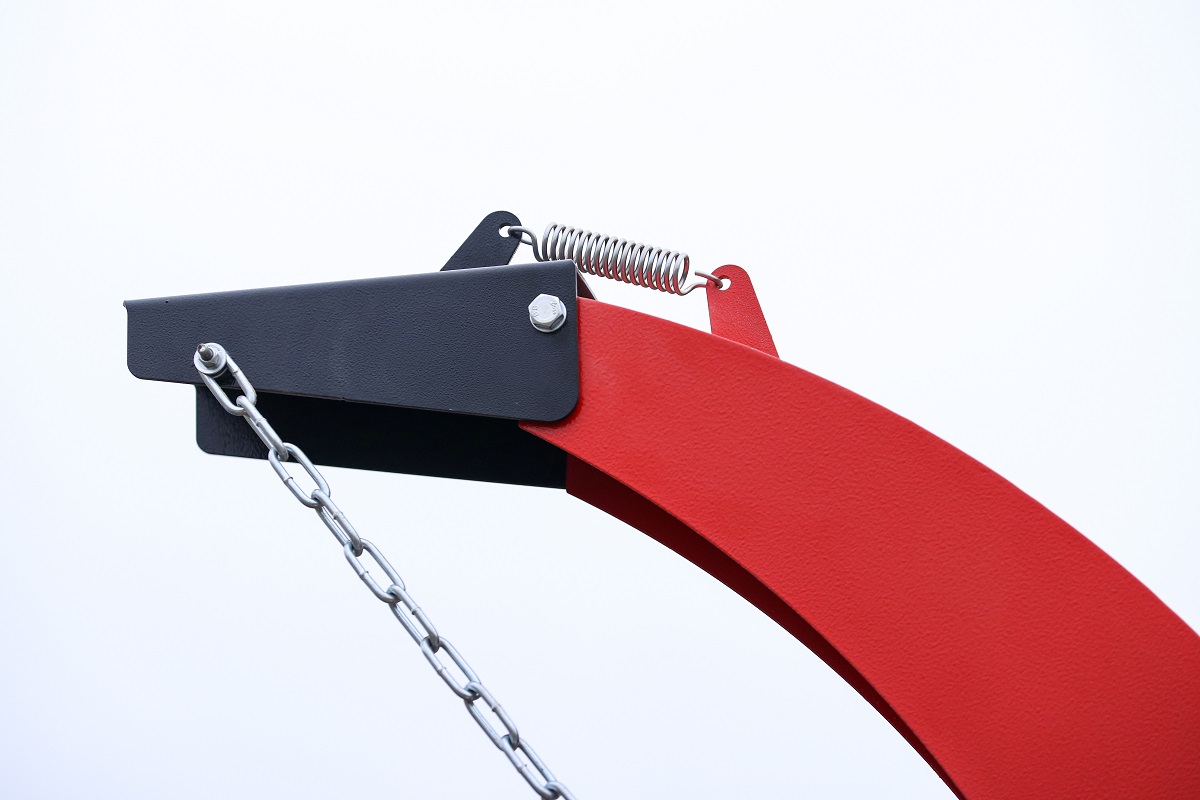

Adjustable Discharge Deflector

  • The wood chips land exactly where you need them. Thanks to the adjustable deflector on the discharge chute, you can set the discharge direction precisely — into a cart, a container or directly onto the ground. You can change the angle in seconds without any tools.

  • The deflector is secured by two hand knobs for easy manual adjustment of the discharge angle. The discharge chute can rotate through 360° and provides an ejection height of up to 2700 mm, allowing you to direct the chip flow in any direction without having to reposition the wood shredder. This significantly simplifies the process of loading into various containers and saves time during operation.

Simple and convenient. I set the direction, and all the chips fly straight into the cart. No need to clean up after the job is done.»

Vitaliy, “Yablunevyi Sad” Household, Vinnytsia Region

2700 mm
Discharge height

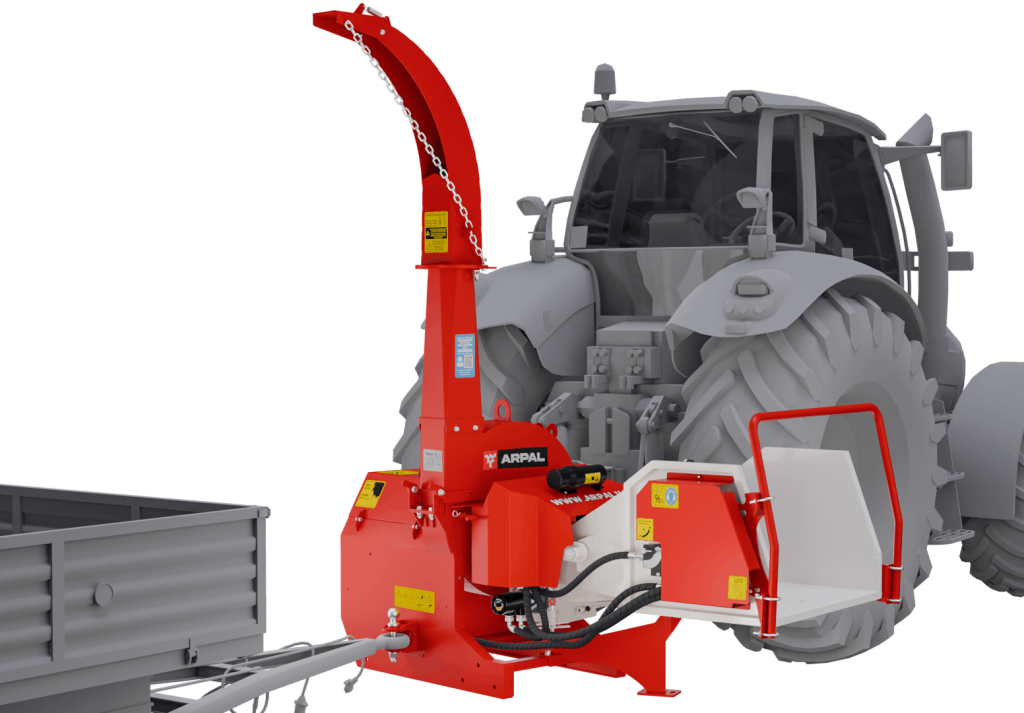

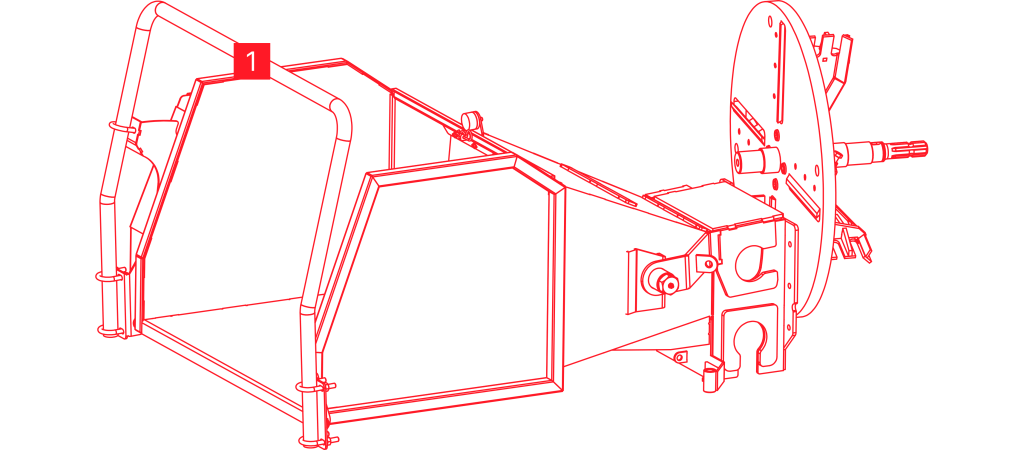

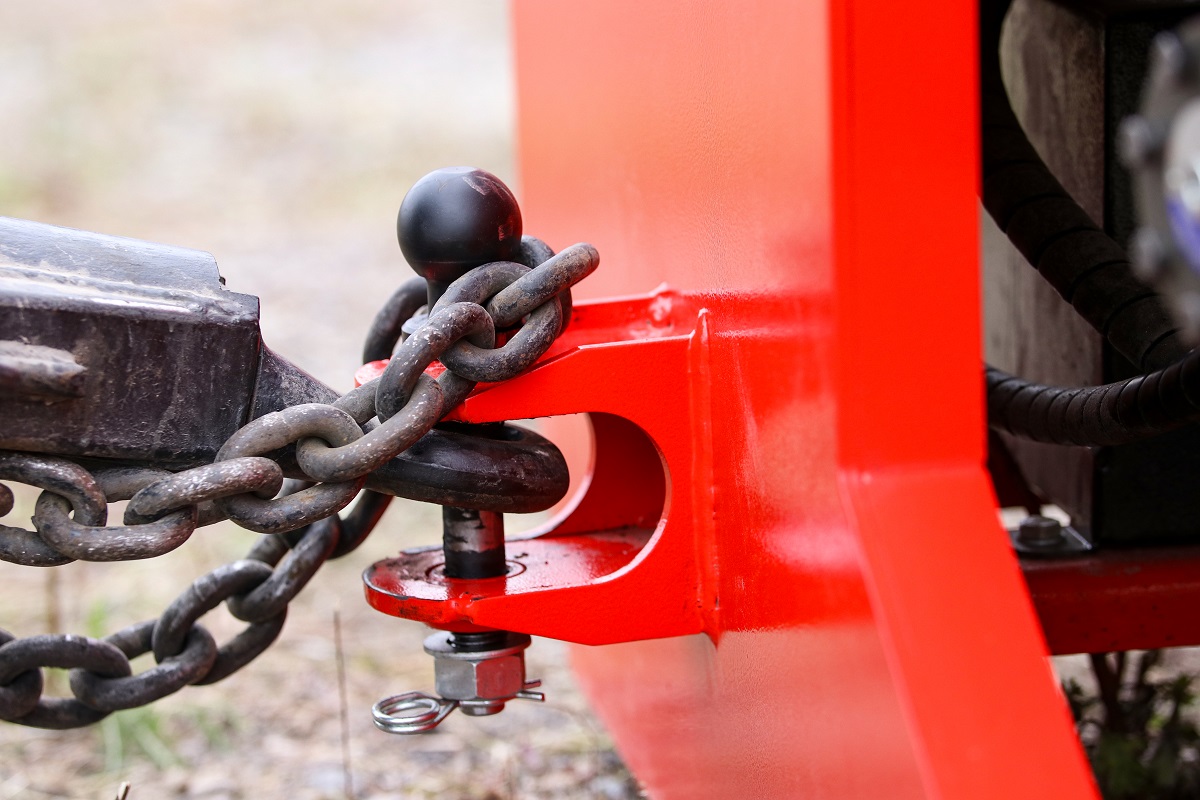

Rigid Frame With a Tow Bar

  • A solid base for long-term loads. The wood chipper can be easily transported being hitched to a tractor or trailer, thanks to its universal hitch compatible with both a towbar and a tractor trailer.

  • The frame is constructed from thick-walled pipe, designed to handle constant working loads. Its reinforced design effortlessly supports the weight of the entire chipper while withstanding the dynamic forces of operation. The universal hitch lets you connect the trailer directly to the shredder, enabling a seamless tractor–chipper–trailer setup.

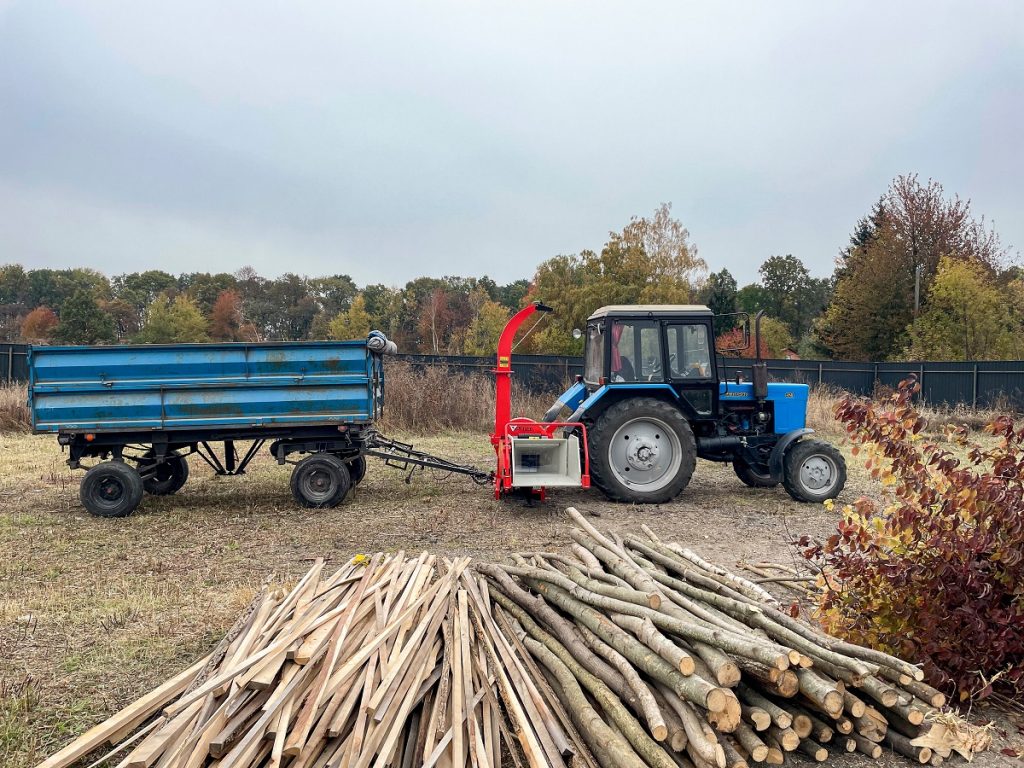

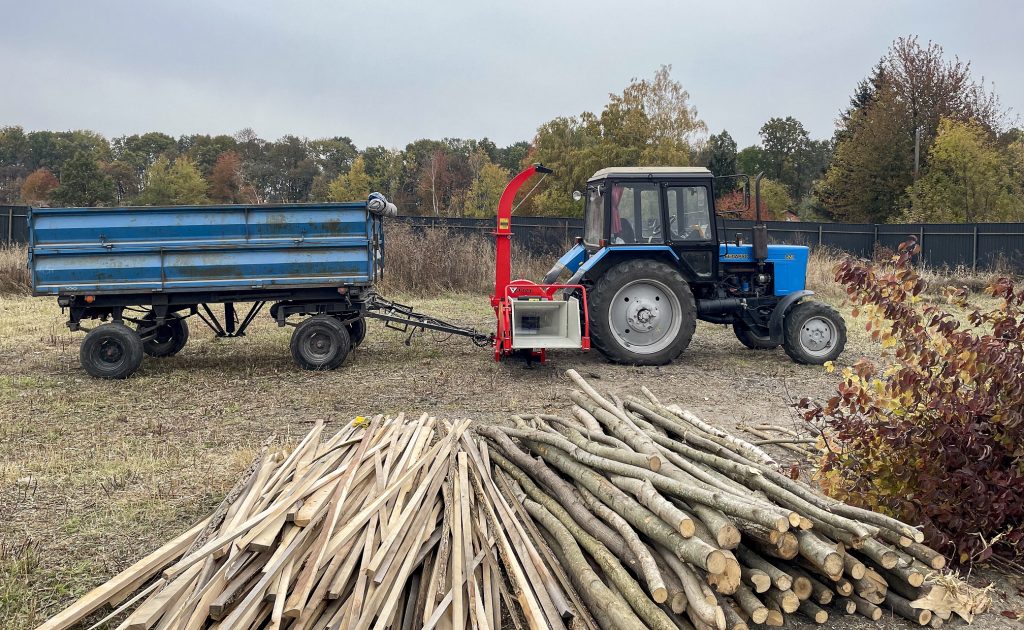

I hitch everything at once: tractor, wood shredder, and trailer. I get the work done and drive on. It saves so much time.

Vasyl, farmer from Vinnytsia region.

Powder coating

  • Long-lasting protection — no rust or peeling. The coating stays strong, vibrant, and intact without fading or cracking over time.

  • Polymer powder paint is applied using a static charge and then baked at high temperatures, forming a dense, durable, and long-lasting protective coating.

Customers often send us videos after 3–4 years of use and it is hard to believe the feedback — the wood chipper still looks as if it just rolled off the production line.

Not a single tool needed

  • All components are easily unscrewed and removed by hand — no keys or screwdrivers required. Maintenance can be carried out effortlessly, without any additional tools.

here isn’t always a tool set handy when you are on the go  —
and that might really save the day.

0
tools needed

Advantages that speak
for themselves

A 3-Year Warranty

Work with complete peace of mind — we stand behind the quality of our products.

Our warranty covers all major components and mechanisms for three years, excluding consumables such as knives, belts, and friction clutch cams.

The engine carries a separate 1-year warranty from the manufacturer.

Even if an original paint defect appears, we are ready to fix it. Our commitment to reliability means your equipment will perform season after season, without issues.

Durability

The first ARPAL wood chipper was delivered to a client 12 years ago—and it’s still running flawlessly.

Enjoy a 3-year warranty, with post-warranty care available throughout the equipment’s entire service life.

Owning ARPAL equipment means you always have access to genuine spare parts and expert service. We maintain full specifications, carefully select parts, and provide support whenever you need it.
