Wood Shredder ARPAL MAX
MK-170TR Antistress

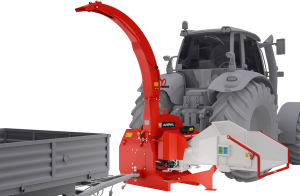

Wood Shredder ARPAL MAX
389 000₴
Wood Shredders

Wood Shredder ARPAL MAX

for a tractor with an Antistress system

SKU: MK-170TR Antistress
Availability: On backorder
389 000₴
Delivery:
Store Pickup, Nova Poshta
Payment:
Cash, Visa/Mastercard
Warranty:
3 years
Installment plan:
5 months interest-free
Up to 36 months with a fee
State Compensation:
25% for agribusinesses
Description Specifications Manual Warranty Installment plan Compensation Technologies Service and support Wholesale purchases Payment and delivery

description

Maximum performance.
The ultimate equipment for the toughest tasks. Designed for professionals who handle high volumes, it delivers exceptional power and unmatched reliability to keep operations running without interruption.

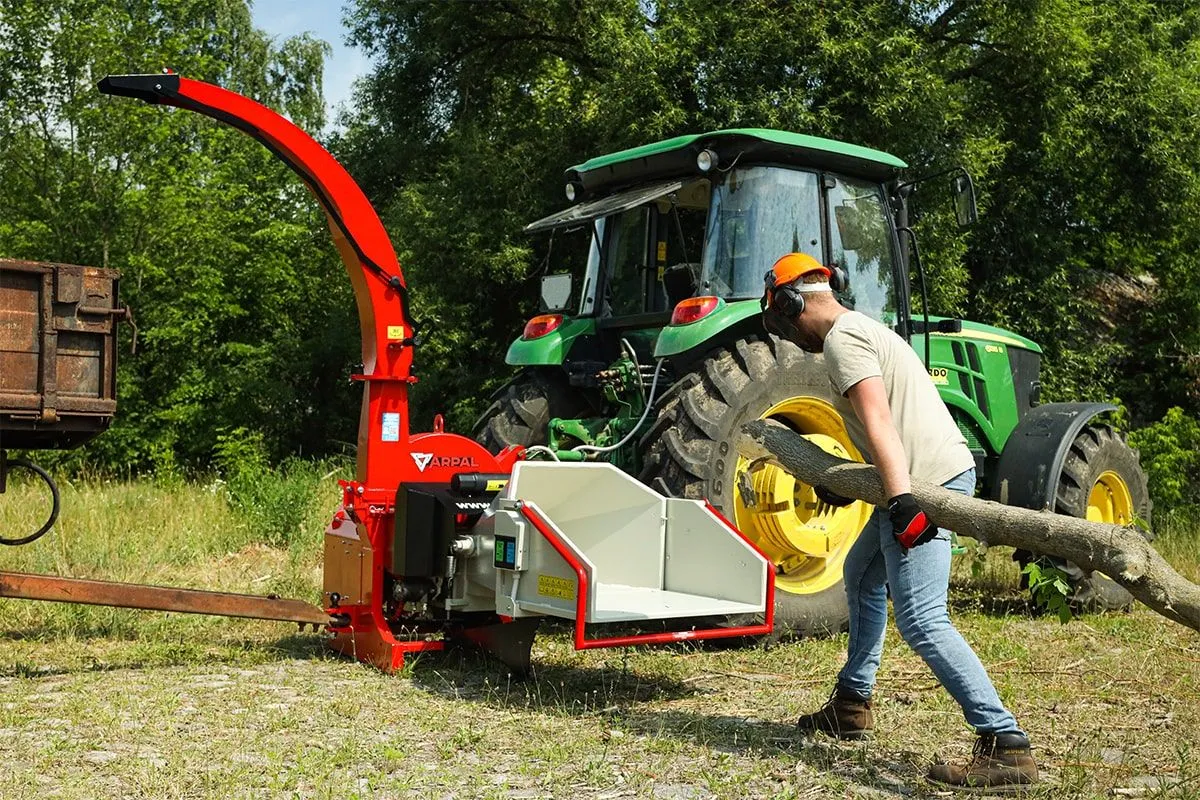

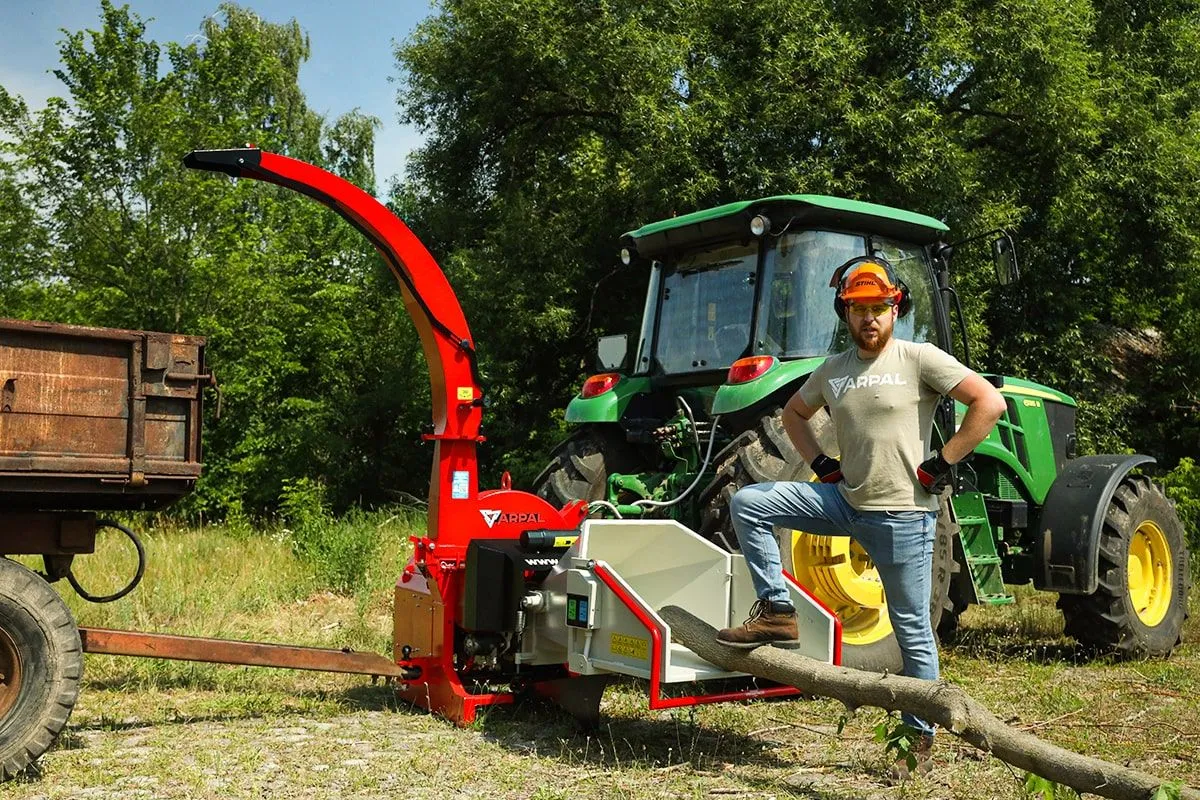

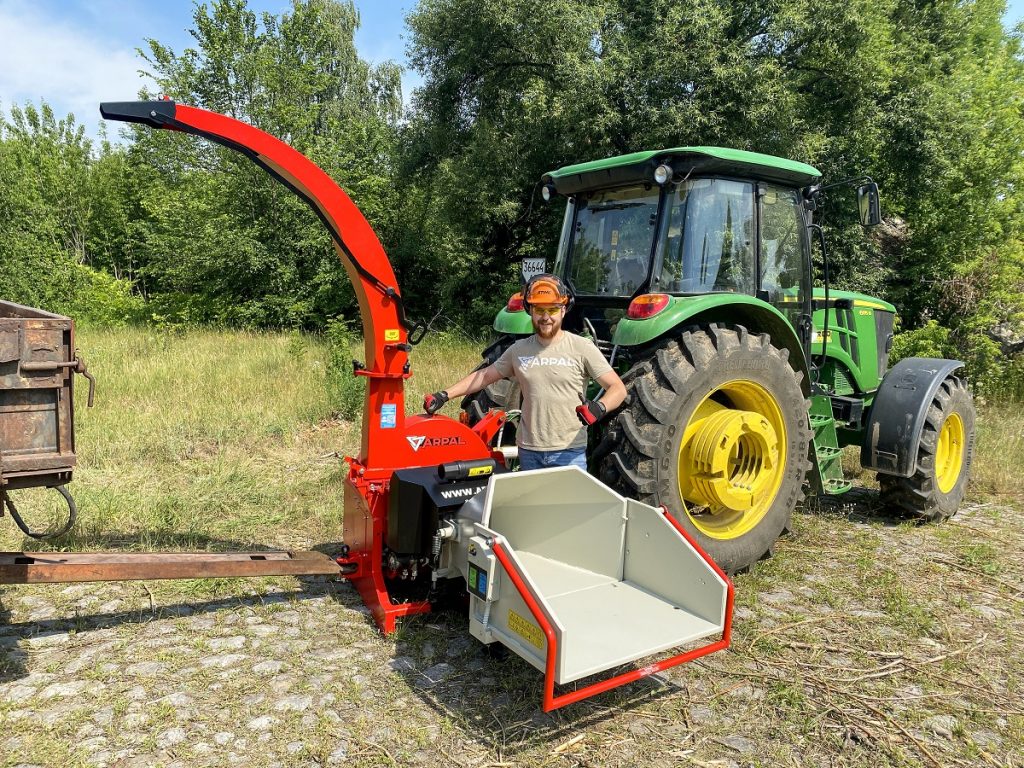

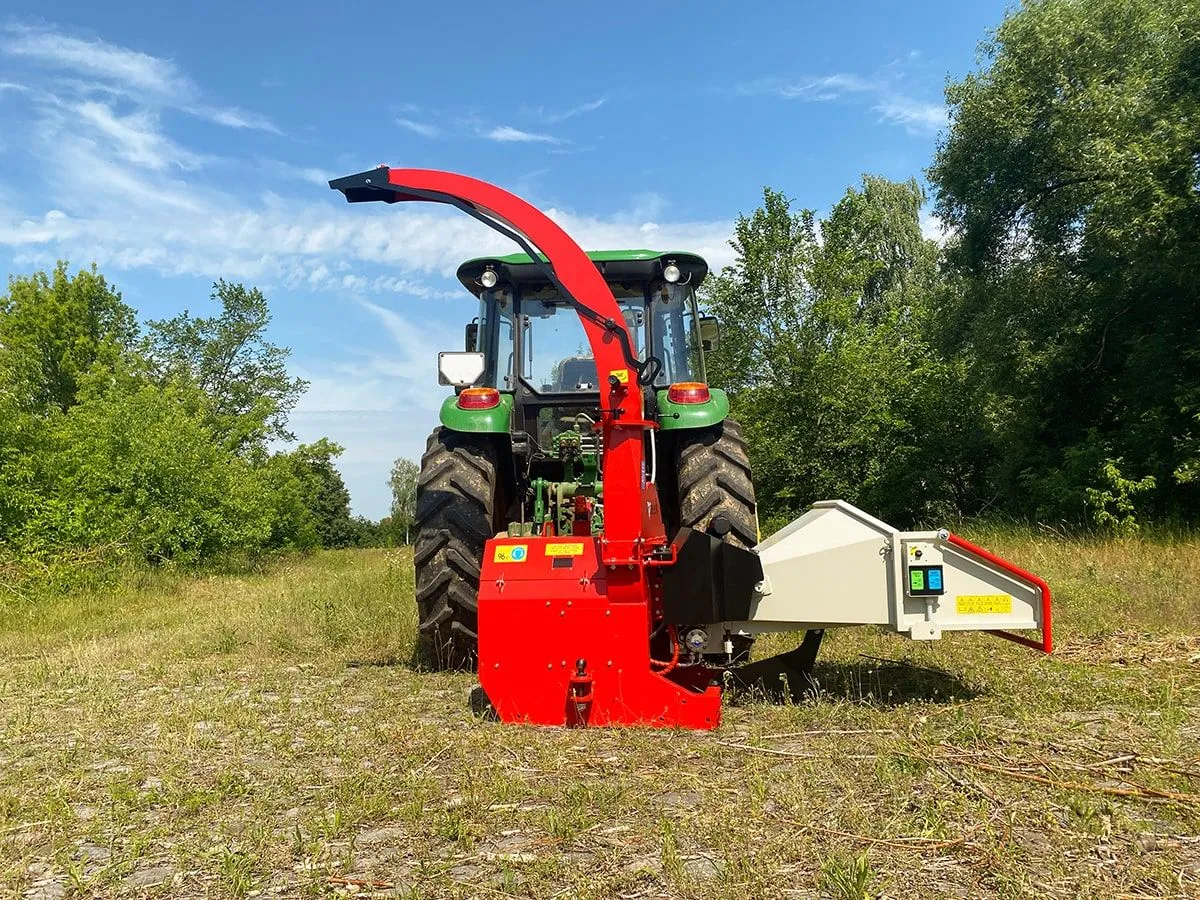

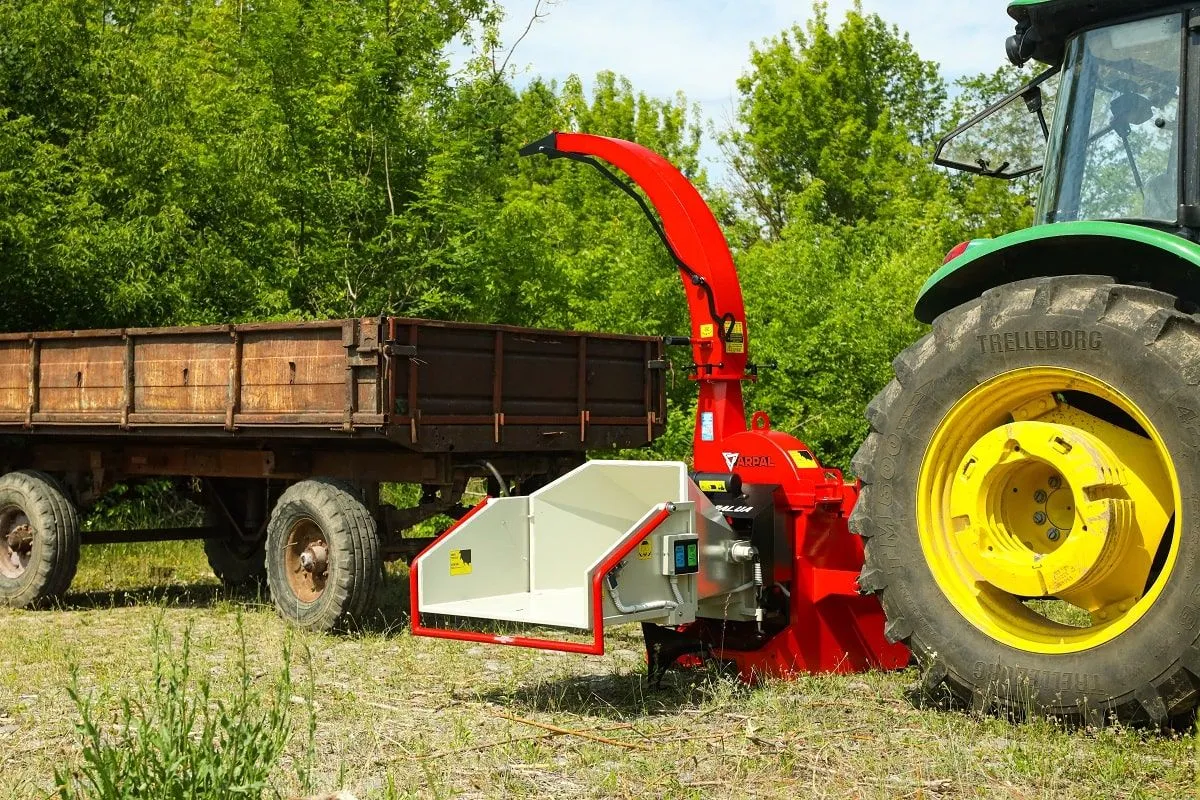

ARPAL MAX MK-170TR Antistress is a powerful, professional tractor-driven wood chipper designed for highly efficient processing of wood waste. It is engineered to handle the thickest branches with a diameter of up to 180 mm. Thanks to the integrated smart Antistress system, the equipment automatically monitors the load on the tractor’s engine, ensuring uninterrupted operation without any risk of jamming or overloading.

This is an ideal technical solution for forestry enterprises, municipal utilities, arborists, and contractors who manage large areas, clear land, maintain shelterbelts, or produce low-cost, eco-friendly fuel.

Download Manual

Detailed steps for connection,
setup, and maintenance.

Download

It is a wonderful choice if you want to

Obtain wood chips in the 5-60 mm size range, without “chewing”, and with consistent discharge through the directed chute.

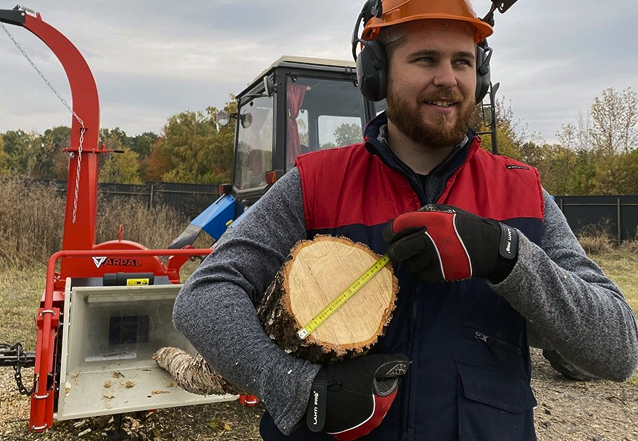

Shred branches up to 180 mm in diameter, including softwoods such as willow and poplar.

Operate with peace of mind – thoughtful protection and strict compliance with EU regulations ensure safe and reliable performance.

Have a shredder compatible with tractors with a power of 50 HP.

Independently adjust the discharge direction into a cart, a bag or directly onto the ground.

Have a reliable assistant with a 3-year warranty and friendly support that is always just a call away.

specifications

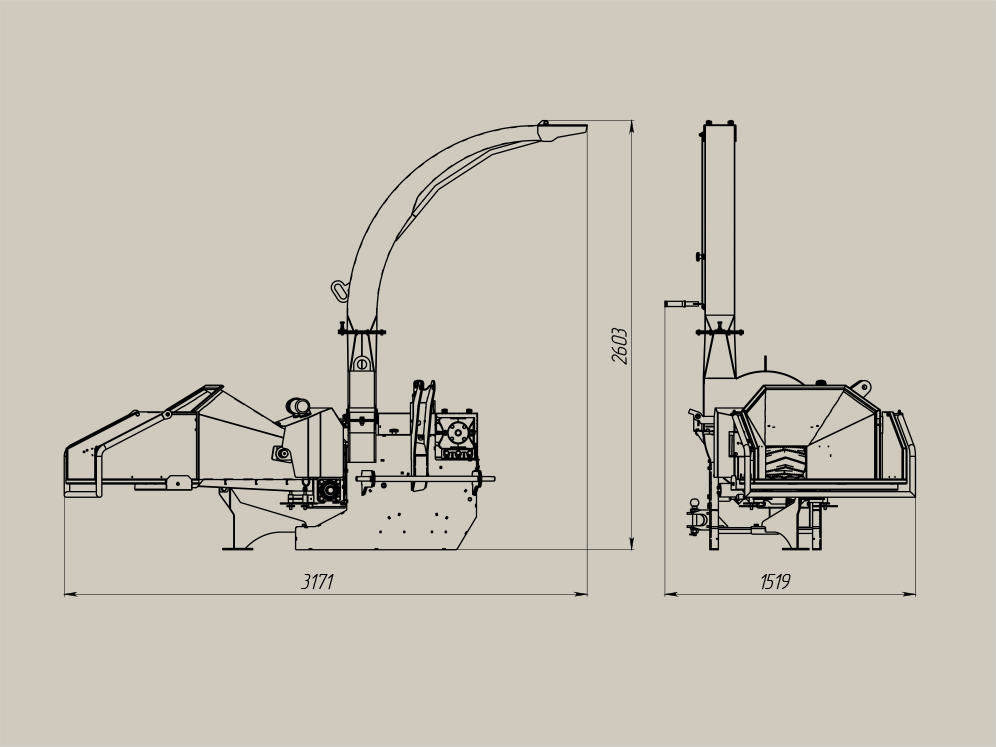

OVERALL DIMENSIONS AND WEIGHT CHARACTERISTICS
Length 3171 mm
Width 1519 mm
Height 2603 mm
Weight 688 kg
Diameter of the tractor mounting axle 28 mm
MAIN OPERATING SPECIFICATIONS
ENGINE SPECIFICATIONS

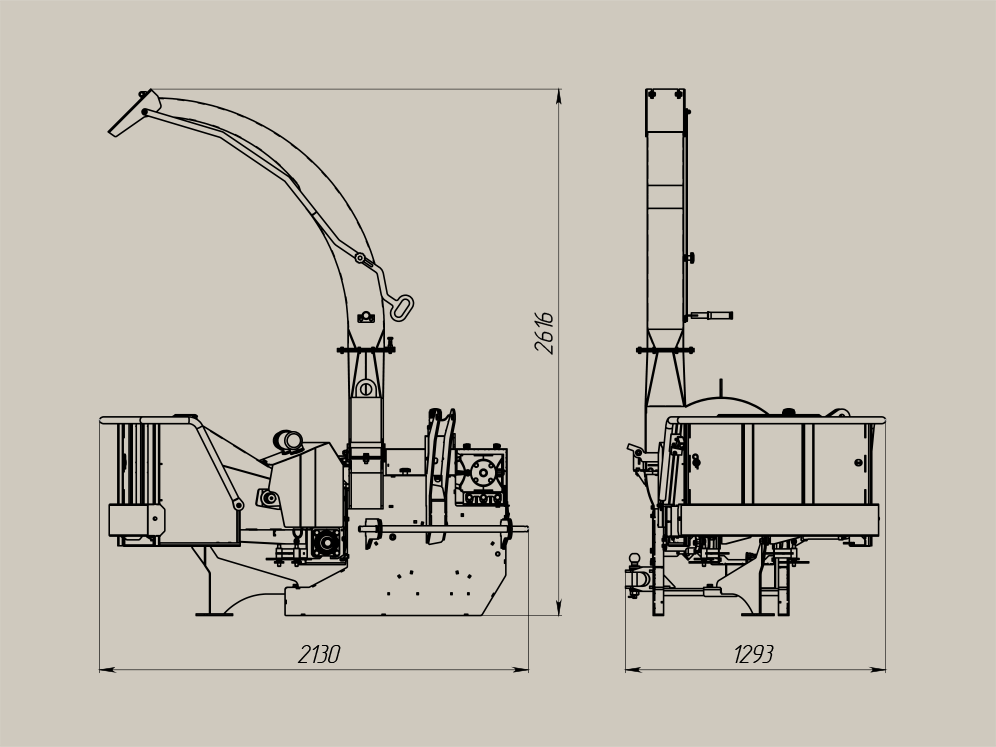

Storage specifications
Length 2130 mm
Width 1293 mm
Height 2616 mm
Weight 688 kg
Diameter of the tractor mounting axle 28 mm

Related products

0%
Installment Plan
25%
Compensation
Wood Shredder ARPAL Light

with a gasoline engine

49 000₴
0%
Installment Plan
25%
Compensation
Wood Shredder ARPAL Classic

with a gasoline engine

67 000₴
0%
Installment Plan
25%
Compensation
Wood Shredder ARPAL PRO

with a gasoline engine

104 000₴
99 000₴
0%
Installment Plan
25%
Compensation
Wood Shredder ARPAL PRO

for a tractor

76 000₴
69 000₴
0%
Installment Plan
25%
Compensation
Wood Shredder ARPAL PRO

with a gasoline engine on a trailer

143 000₴
0%
Installment Plan
25%
Compensation
Wood Shredder ARPAL MAX

with hydraulic feed for a tractors

335 000₴
0%
Installment Plan
25%
Compensation
Wood Shredder ARPAL MAX

with a gasoline engine on a trailer

520 000₴
513 000₴
Conveyor for ARPAL PRO

with a gasoline engine

100 000₴
Conveyor for ARPAL PRO

for a tractor

110 000₴
Conveyor to AM-200BD-K
Conveyor for ARPAL MAX

for a tractor

170 000₴
Dual-bagging attachment
6 000₴
Calibration sieve 20 mm

for ARPAL Classic wood shredder

700₴
Calibration sieve 15 mm

for ARPAL Classic wood shredder

700₴
LineCut knife set (drum) PRO series

2 pcs

4 000₴
CircleCut knife set for MAX series

6 pcs

12 000₴
Go to products

StormBlade Shredding Technologies

From thick branches to leaves and fine debris, it handles it all effortlessly.
This comprehensive solution combines a dual-action cutting system with high-durability blades. Together, these features ensure reliable performance, consistent chip size and comfortable operation, eliminating unnecessary downtime and hassle.

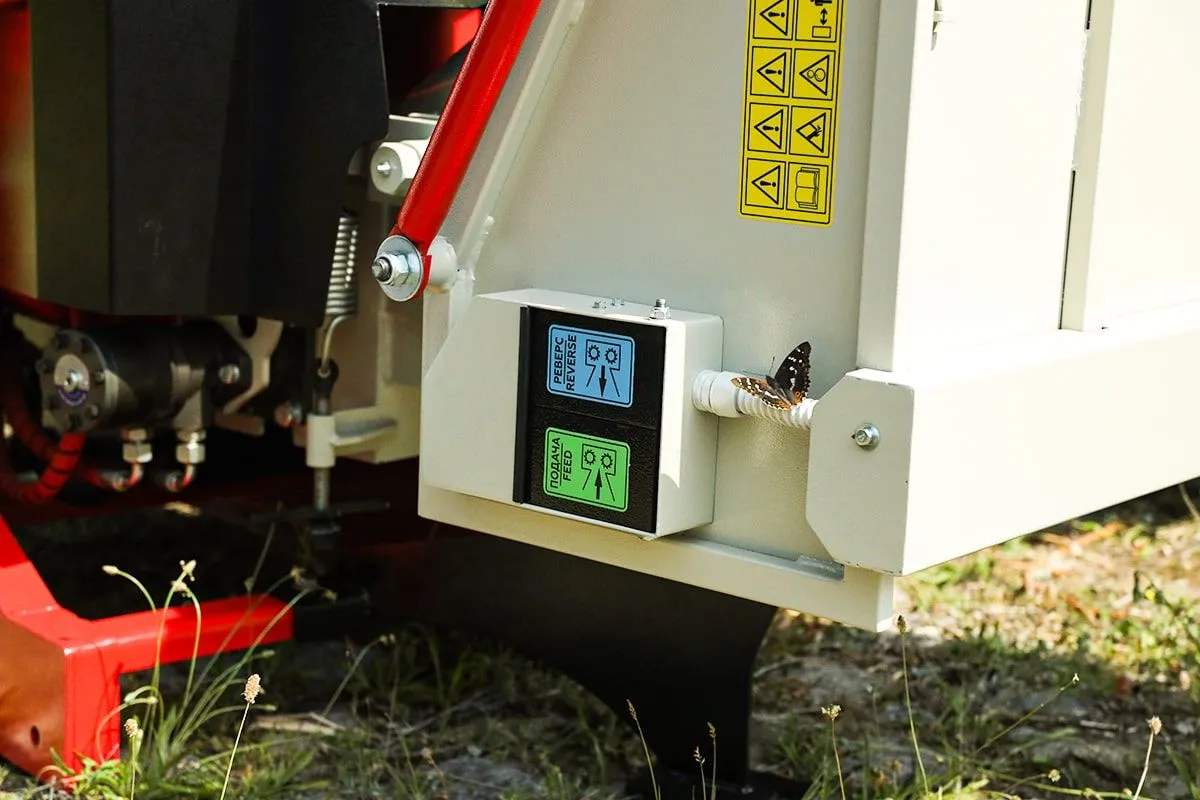

Antistress System

  • This wood chipper can think for itself! It can manage the branch feed process independently. All the operator has to do is feed the material in; the “brain” of the machine handles the rest.

  • The electronic control unit constantly monitors the RPM of the cutting disc (minimum 750 RPM) and manages the hydraulic system. If the RPM drops, the feed is automatically stopped, a short reverse engages, pulling the branch away from the blades to prevent jamming while keeping it securely held within the rollers. Once the RPM has been restored, the feed will resume. The wood shredder can easily shred branches with a diameter of up to 180 mm, regardless of the species of wood or its moisture content.

750
Minimum rpm

The feeding works perfectly – if the RPM of the tractor drops, the wood shredder adjusts everything itself. It stops, reverses the branch, and starts pulling again. No stress, no jamming – just smart machinery!

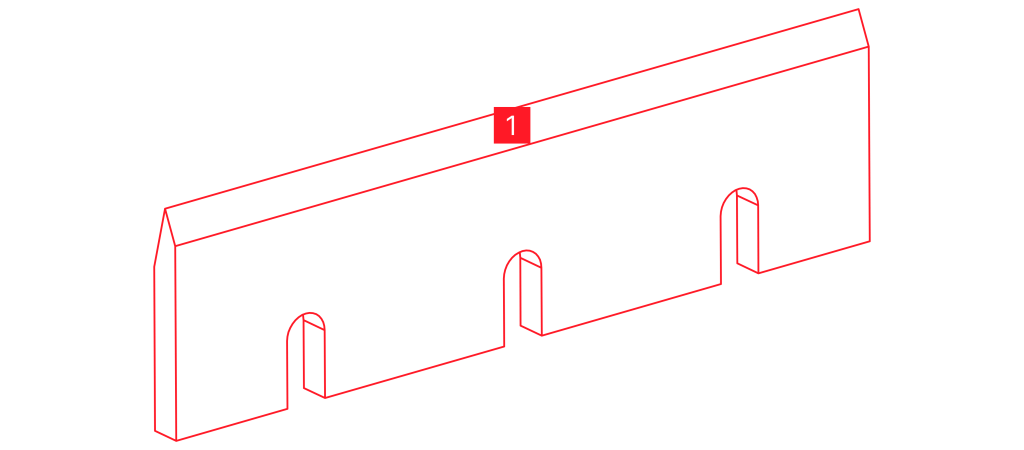

LineCut Blades

  • Cut longer. Hold their edge. Impact resistant.
    The blades are made from AISI 4140 alloy steel, which can withstand heavy loads without chipping and will stay sharp for a long time, even when processing dry hardwoods.

  • High-impact toughness AISI 4140 tool steel is used. The cutting edge undergoes heat treatment using the HFC (High-Frequency Current) induction hardening method, combining a hard surface (60 HRC) with a ductile core. This enables the blades to withstand impact without breaking and to operate stably even under intense loads. The drum blades and hammers are made of AISI 5140 steel.

  • Hardened cutting edge
    (60 HRC)

I was cutting dry hornbeam all day long—the blades are like new. They didn’t dull or chip. Extremely impressive quality.

Roman, Lviv Region

TurboCut Cutting Unit

  • Stable cutting and flywheel energy.
    The disc is equipped with four circular blades that uniformly shred branches, creating a powerful airflow that easily ejects the chips through the discharge chute.

  • The disc is made of 30 mm-thick steel and has a diameter of 730 mm and a weight of 104.5 kg. Its substantial mass enables it to function as a flywheel, accumulating kinetic energy and reducing the load on the engine. Integrated blades generate an intensive airflow based on the fan principle, ensuring that chips are discharged evenly and without clogging. After welding, the disc undergoes mandatory balancing to eliminate vibrations and prevent premature wear.

30 mm
Disc thickness

It doesn’t clog at all. It discharges the chips consistently even when the branches are wet – it’s really convenient.

Ivan, private user, Volyn Region

Adjustable Counter-blade

  • It secures the branch for precise, even cuts. The adjustable, ground counter-blade holds the branch firmly in place during the cutting process, ensuring clean cuts without “chewing”, particularly when processing thin or flexible wood.

  • Thanks to its precision-ground surface, the counter-blade is installed with minimal clearance to the main blades. The counter-blade can be moved closer to the drum as the blades wear down via slots on the body. This design ensures secure branch fixation and consistent shredding quality.

12.9
Bolt grade

ARPAL Total Protect Security Package

Security isn’t a luxury — it’s a standard.
ARPAL Total Protect offers comprehensive solutions to safeguard you and your equipment, ensuring a safe and worry-free work environment.

Certificates
of conformity
to EU standards

  • We are a trusted brand in Germany, the UK, Switzerland, Ireland, and Australia. ARPAL is available in over 20 countries, thanks to its compliance with strict EU safety standards. This technology is rigorously tested — and it truly sets the standard.

Ensuring the chipper meets occupational health and safety standards is crucial for us. Thanks to ARPAL’s certification, we can confidently put it into operation.

Serhiy, agricultural company, Lviv region.

The machinery complies with
a number of standards, including:

  • EN 13525:2020 — protection against accidental contact with blades
  • EN ISO 12100:2010 — designed for safety with minimal risk
  • EN ISO 13854:2019 — optimal clearances to safeguard hands
  • EN 1005-4:2008 — ergonomic design to prevent physical overload
  • EN ISO 4413:2010 — stable hydraulics, without leaks
  • EN ISO 3744:2010 — noise levels below 80 dB, ensuring comfort during extended use
  • EN 55012:2009 — electromagnetic compatibility; does not cause radio interference

These standards are more than just a formality. They ensure safe operation, precise control, hand protection, and consistent material feeding. ARPAL represents a mindset that values not just productivity, but also the people who operate the machine every day.

Using a Cardan Shaft
With a Friction Clutch

  • For optimal safety and performance, we recommend connecting the wood shredder to the tractor using a Class T5 cardan shaft equipped with a friction clutch.

    At a critical moment, this system absorbs the impact, preventing damage. Instead of the tractor breaking down or coming to a halt, the wood shredder stops, keeping your equipment safe and intact.

  • The clutch is composed of friction discs compressed by spring-loaded bolts. The force of the springs determines the moment of operation. Operating principle: when the shredder blades become jammed, the clutch discs begin to rotate, disengaging the load from the tractor.

  • ⚠️ The cardan shaft is not included with the wood chipper, but it is available for purchase separately from us.

A few times it happened so that the branch was just too big. The engine didn’t stall – it simply idled. I stopped the PTO, removed the branch and carried on. It’s smooth and stress-free.

Mykola, private gardener.

An Extended Hopper

  • You simply can’t reach the blades — the hopper is designed to make it physically impossible.

  • The input hopper’s depth and design comply with European safety standards for garden machinery.

Finally, a device that truly keeps everything safe. You don’t have to worry about it catching your sleeve or glove. The protection is designed down to the smallest detail, so you can work calmly.

Maksym, Equipment Operator.

Protective shields and curtains

  • All hazardous elements are fully protected with guards, preventing accidental contact with the belt or flywheel. Yet, when maintenance is required, accessing these parts is quick and convenient.

  • The transmission components (clutch, belt, and pulley-flywheel) are enclosed within a double-sided casing for enhanced safety. The hopper allows crushed raw materials to be ejected in one direction only, minimizing the risk of injury. Additionally, the input is equipped with a protective curtain to guard against flying chips.

When I work, I don’t worry about my hands or clothes. Everything is closed. If I need to remove the casing, it’s quick and easy — I don’t have to spend an hour disassembling the equipment.

Taras, landscape designer.

ErgoBase functional design

ARPAL shredders are designed with convenience, durability, and smart functionality in mind. Simply switch it on, and it works — no complicated settings or adjustments needed.

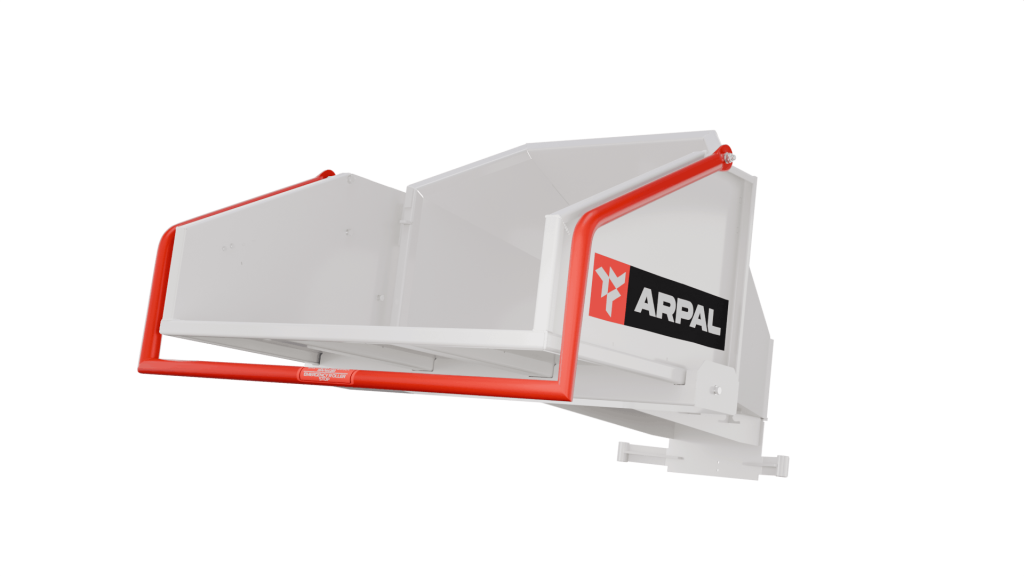

Reinforced Input Hopper

  • A robust bunker built to withstand impacts. During operation, branches frequently hit the bunker walls. Therefore, we designed it to be as rigid and deformation-resistant as possible.

  • The hopper is reinforced with additional stiffening ribs around the perimeter and has a thickened base for protection against impacts from branches. Thanks to its solid, rigid design, it remains stable even when carrying heavy loads for long periods of time. High durability that can support the weight of an adult – you can comfortably sit or stand on top of it.

Not some flimsy tin shed — the bunker is solid. It can take a hit and hold.

Vasyl, homeowner

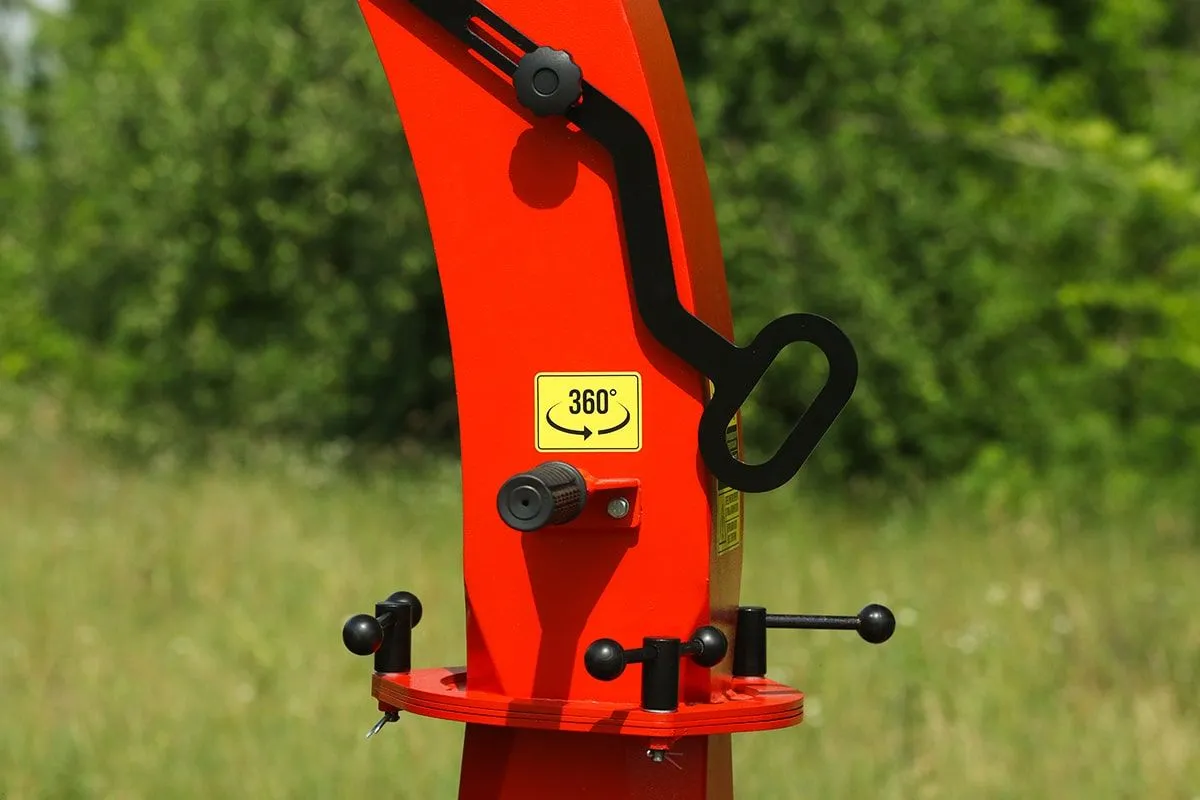

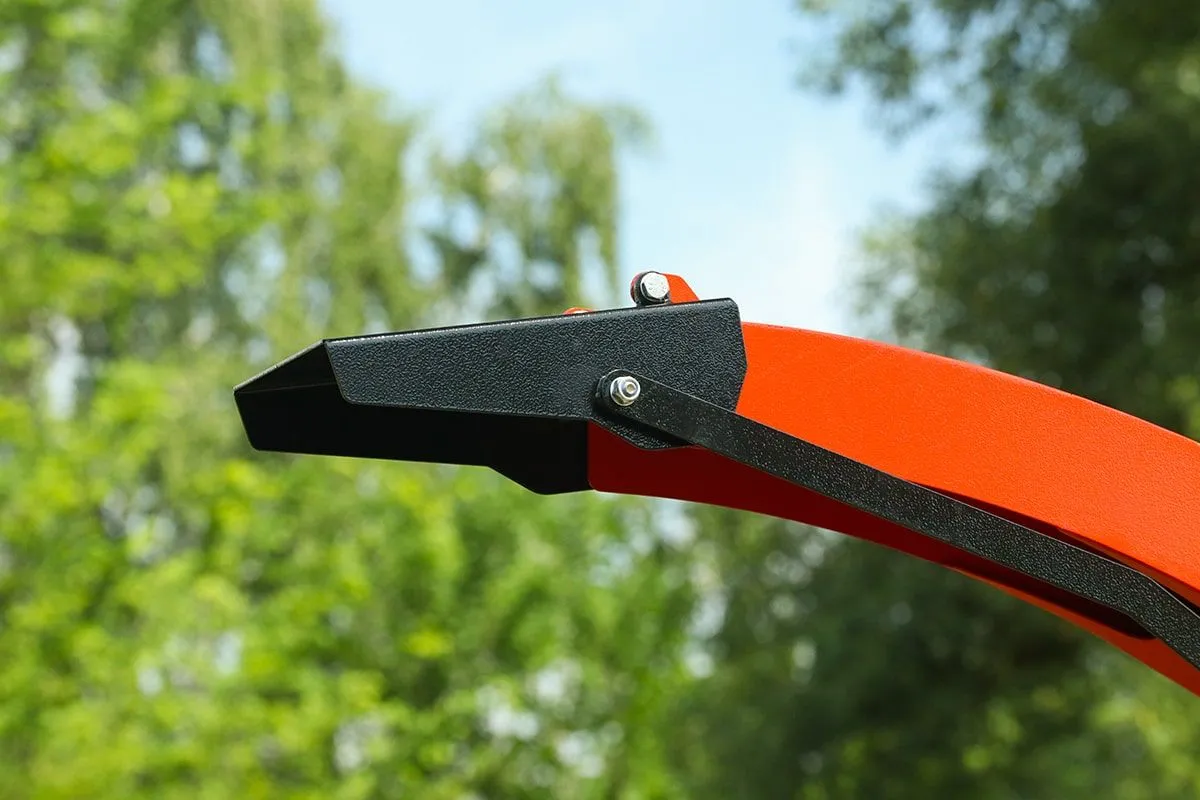

Adjustable Discharge Deflector

  • The wood chips land exactly where you need them. Thanks to the adjustable deflector on the discharge chute, you can set the discharge direction precisely — into a cart, a container or directly onto the ground. You can change the angle in seconds without any tools.

  • The deflector is secured by two hand knobs for easy manual adjustment of the discharge angle. The discharge chute can rotate through 360° and provides an ejection height of up to 2700 mm, allowing you to direct the chip flow in any direction without having to reposition the wood shredder. This significantly simplifies the process of loading into various containers and saves time during operation.

Simple and convenient. I set the direction, and all the chips fly straight into the cart. No need to clean up after the job is done.»

Vitaliy, “Yablunevyi Sad” Household, Vinnytsia Region

2700 mm
Discharge height

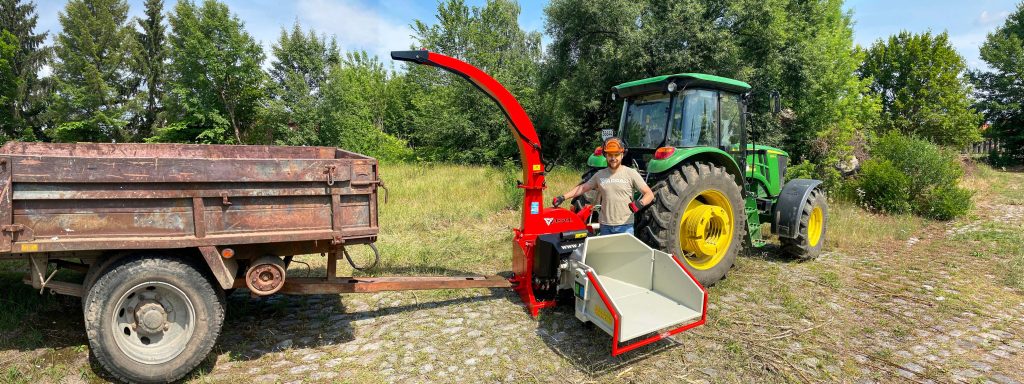

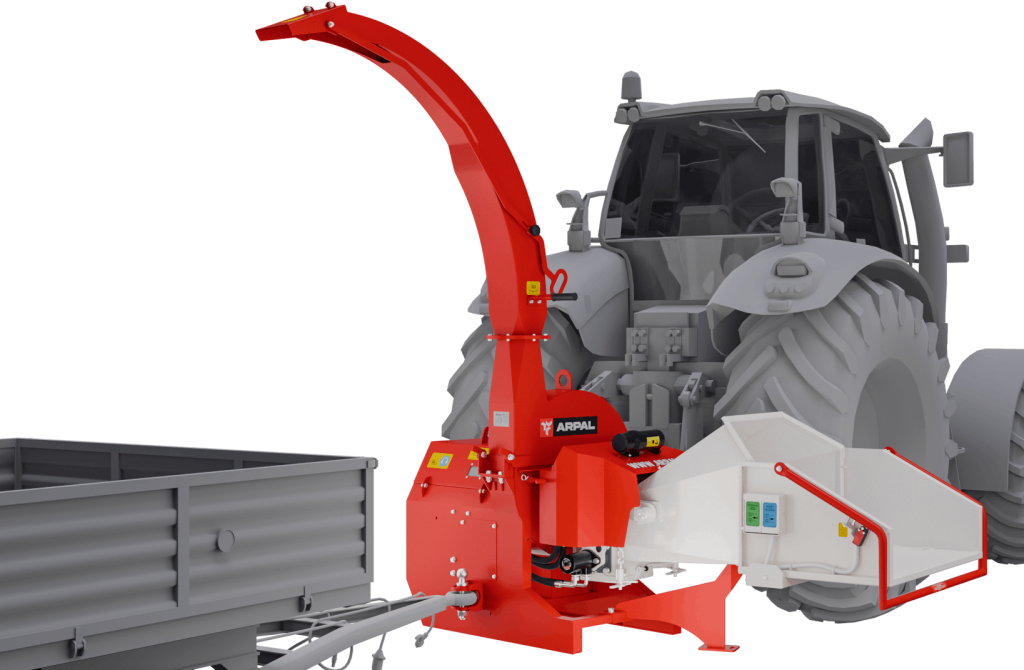

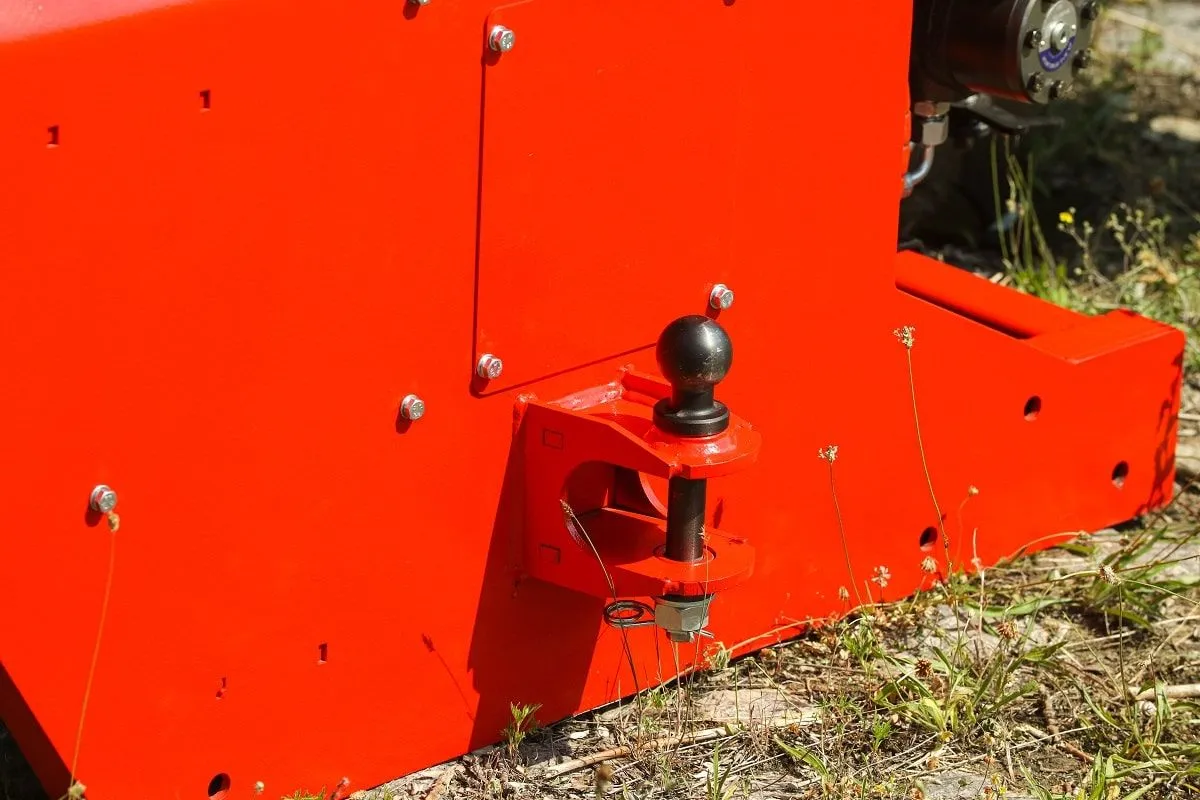

Rigid Frame With a Tow Bar

  • A solid base for long-term loads. The wood chipper can be easily transported being hitched to a tractor or trailer, thanks to its universal hitch compatible with both a towbar and a tractor trailer.

  • The frame is constructed from thick-walled pipe, designed to handle constant working loads. Its reinforced design effortlessly supports the weight of the entire chipper while withstanding the dynamic forces of operation. The universal hitch lets you connect the trailer directly to the shredder, enabling a seamless tractor–chipper–trailer setup.

I hitch everything at once: tractor, wood shredder, and trailer. I get the work done and drive on. It saves so much time.

Vasyl, farmer from Vinnytsia region.

Powder coating

  • Long-lasting protection — no rust or peeling. The coating stays strong, vibrant, and intact without fading or cracking over time.

  • Polymer powder paint is applied using a static charge and then baked at high temperatures, forming a dense, durable, and long-lasting protective coating.

Customers often send us videos after 3–4 years of use and it is hard to believe the feedback — the wood chipper still looks as if it just rolled off the production line.

Not a single tool needed

  • All components are easily unscrewed and removed by hand — no keys or screwdrivers required. Maintenance can be carried out effortlessly, without any additional tools.

here isn’t always a tool set handy when you are on the go  —
and that might really save the day.

0
tools needed

Advantages that speak
for themselves

A 3-Year Warranty

Work with complete peace of mind — we stand behind the quality of our products.

Our warranty covers all major components and mechanisms for three years, excluding consumables such as knives, belts, and friction clutch cams.

The engine carries a separate 1-year warranty from the manufacturer.

Even if an original paint defect appears, we are ready to fix it. Our commitment to reliability means your equipment will perform season after season, without issues.

Durability

The first ARPAL wood chipper was delivered to a client 12 years ago—and it’s still running flawlessly.

Enjoy a 3-year warranty, with post-warranty care available throughout the equipment’s entire service life.

Owning ARPAL equipment means you always have access to genuine spare parts and expert service. We maintain full specifications, carefully select parts, and provide support whenever you need it.
