ARPAL Classic wood chipper for tractor
AM-80TR

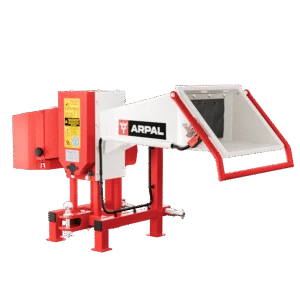

ARPAL Classic wood chipper for tractor
49 000₴
Wood Chippers

ARPAL Classic wood chipper for tractor

for tractor

SKU: AM-80TR
Availability: On backorder
49 000₴
Delivery:
Store Pickup, Nova Poshta
Payment:
Cash, Visa/Mastercard
Warranty:
3 years
Installment plan:
5 months interest-free
Up to 36 months with a fee
State Compensation:
25% for agribusinesses
Description Specifications Manual Warranty Installment plan Compensation Technologies Service and support Wholesale purchases Payment and delivery

Description

Compactness with impressive performance
Perfect choice for households, farms, and small enterprises. Proven over time and trusted by thousands..

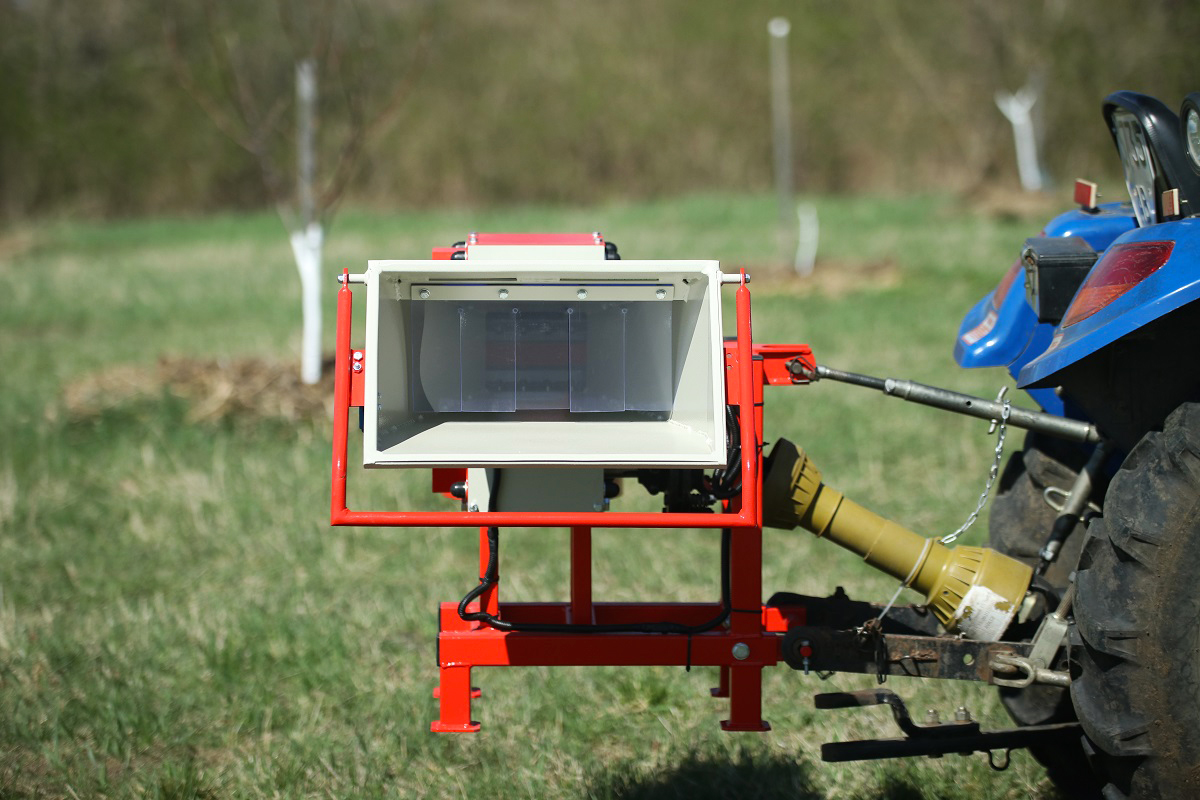

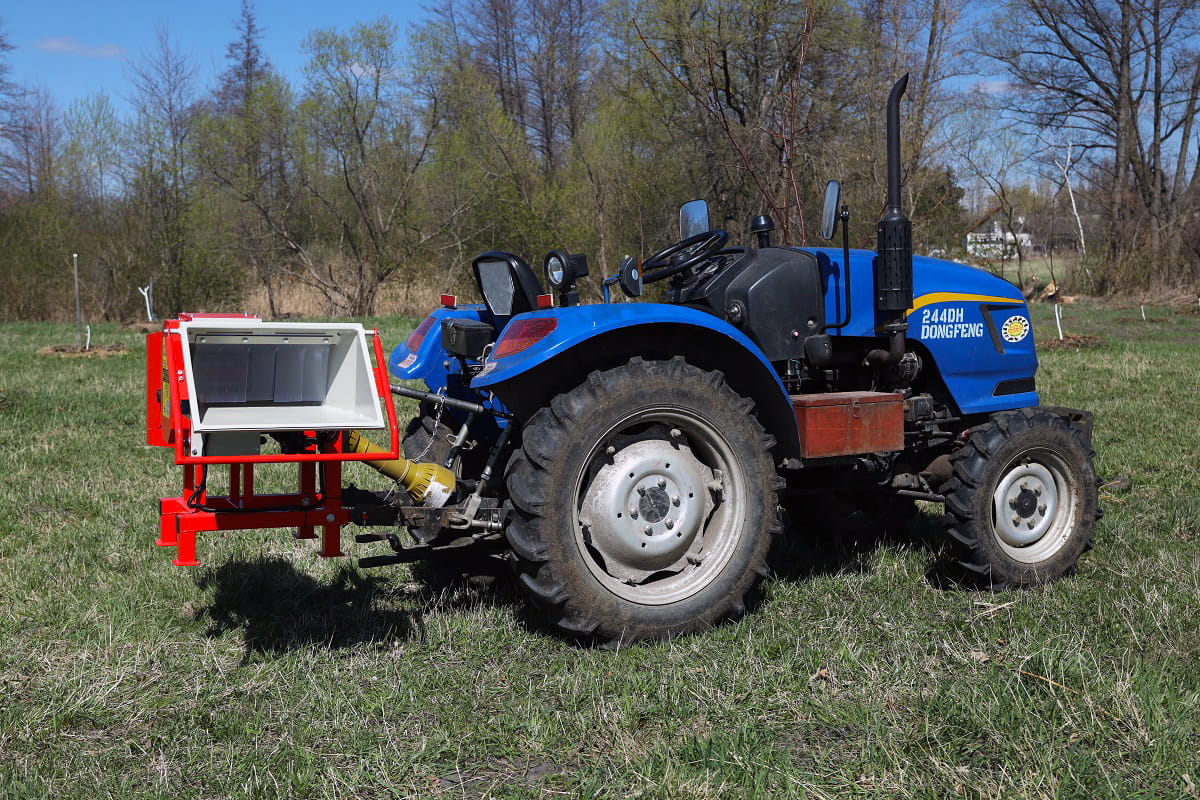

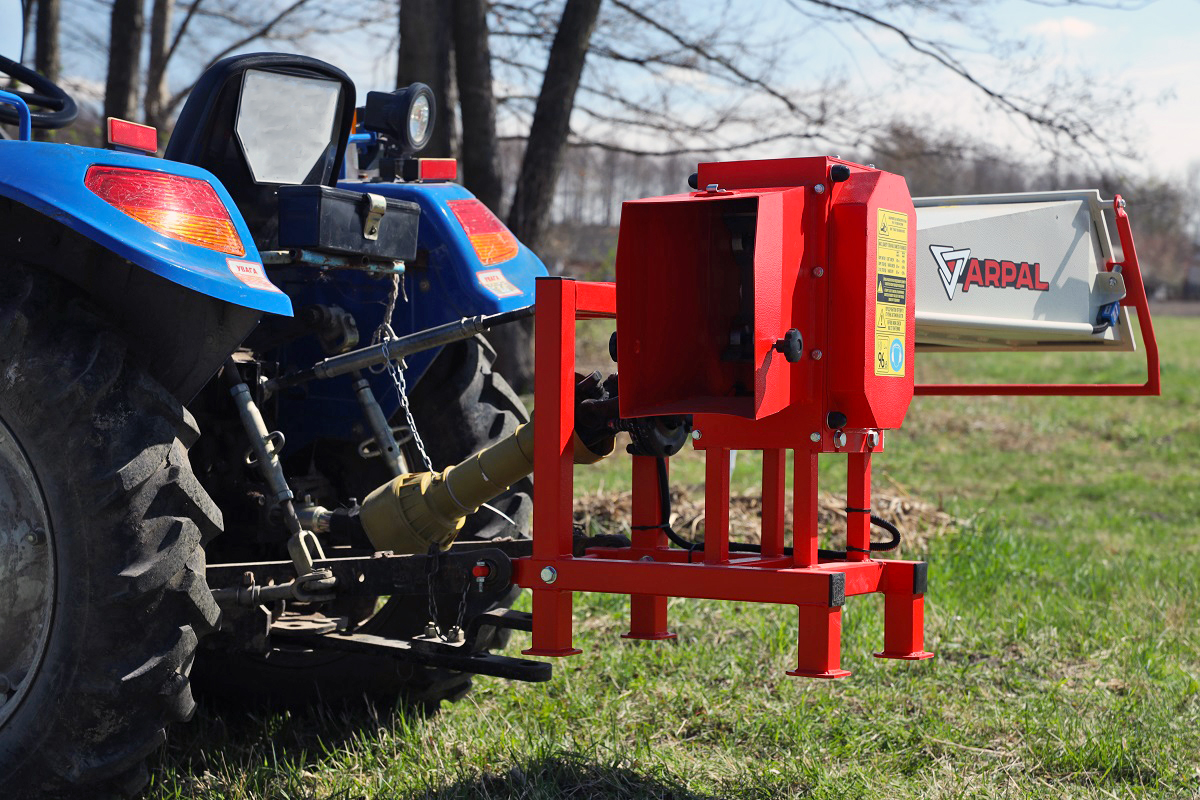

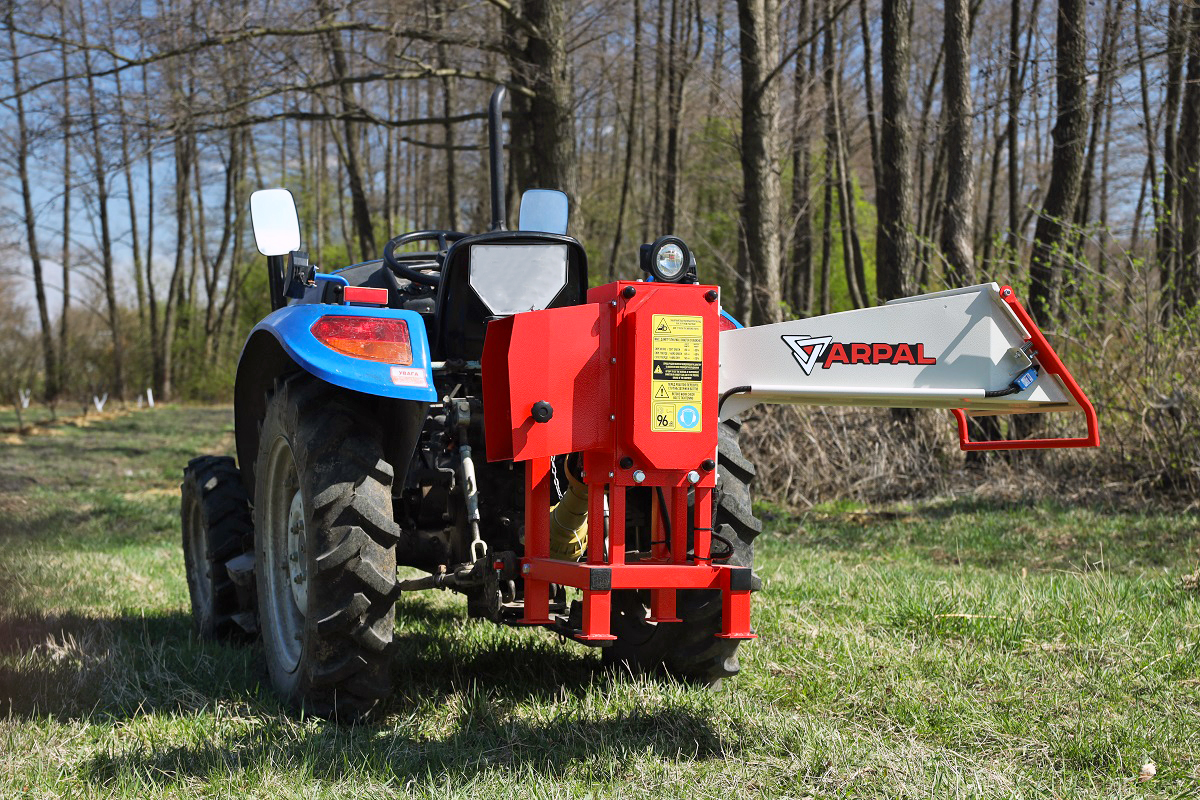

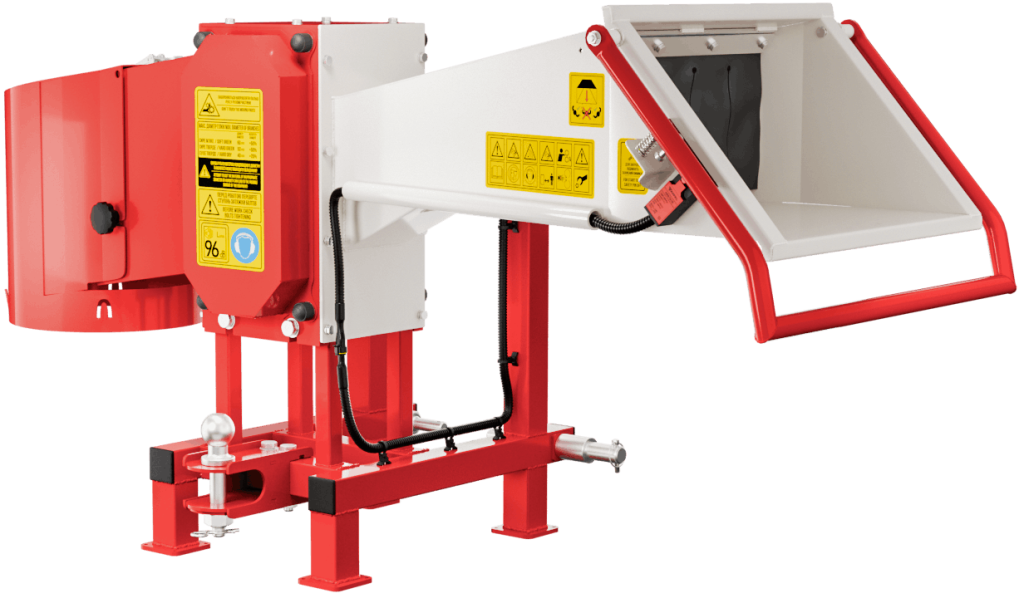

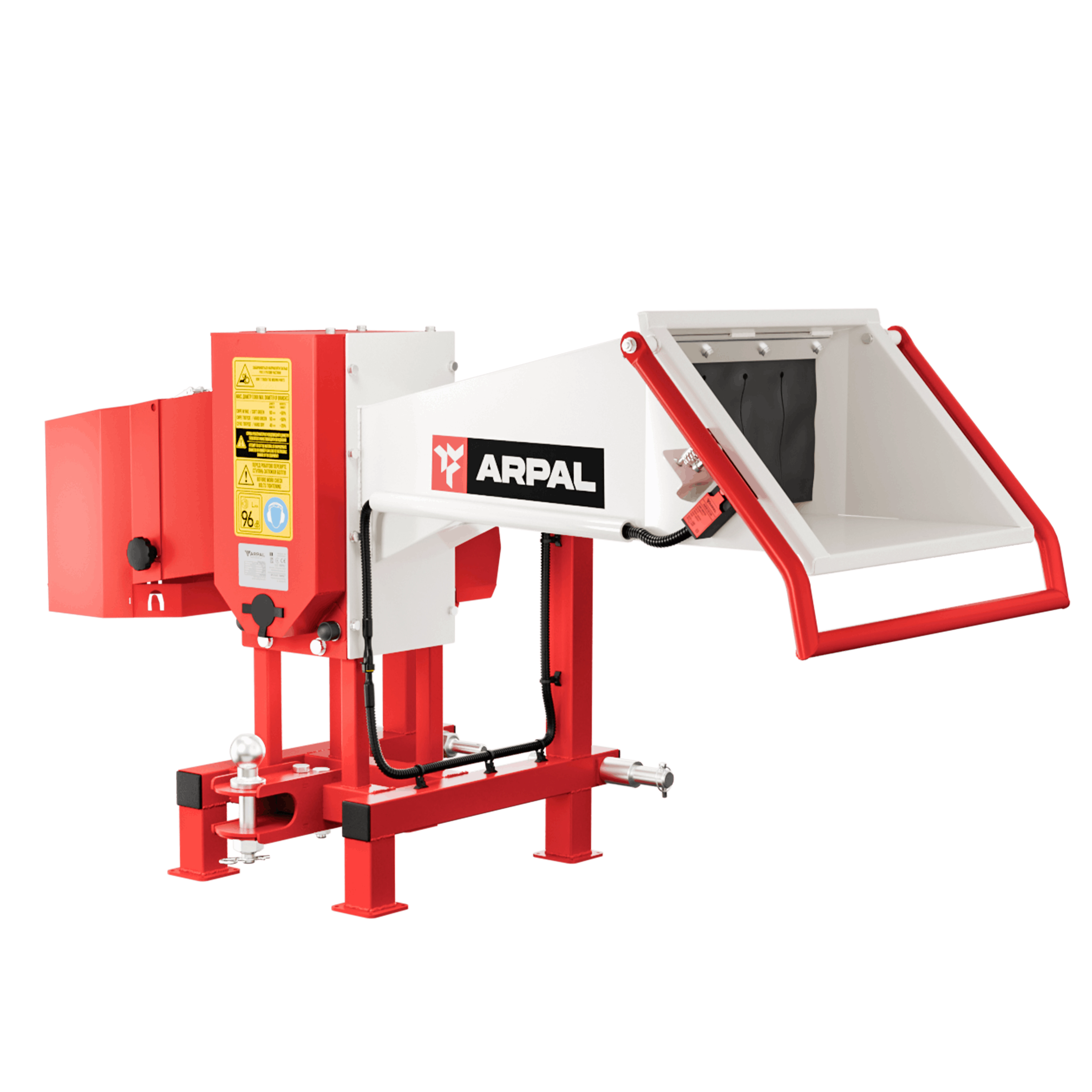

The AM-80TR, part of the ARPAL Classic line, is a tractor-mounted chipper designed for fast and efficient processing and disposal of branches up to 80 mm in diameter. It is a perfect choice for private homeowners, cottage house residents, and garden plot owners. It is the go-to choice for anyone who needs a convenient, affordable, and effective solution for post-pruning cleanup, shrub trimming, and seasonal garden work. Combining compact size with ease of use, this model delivers reliable, safe operation while fully complying with European quality and safety standards..

Download Manual

Detailed steps for connection,
setup, and maintenance.

Download

It is a wonderful choice if you want to

Receive up to 200 m³ of firewood with one sharpening of the knives.

Effortlessly cut even the thinnest branches — neatly and without chipping and splintering.

Operate with peace of mind — thoughtful protection and strict compliance with EU regulations ensure safe and reliable performance.

Have a chipper that is compatible with tractors and minitractors with a power of 16 HP or more.

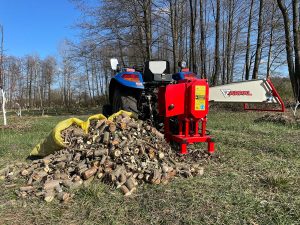

Discharge firewood into a bag, a trailer, or directly onto the ground — whichever works best for you!

Have a reliable assistant with a 3-year warranty and friendly support that is always just a call away.

Specifications

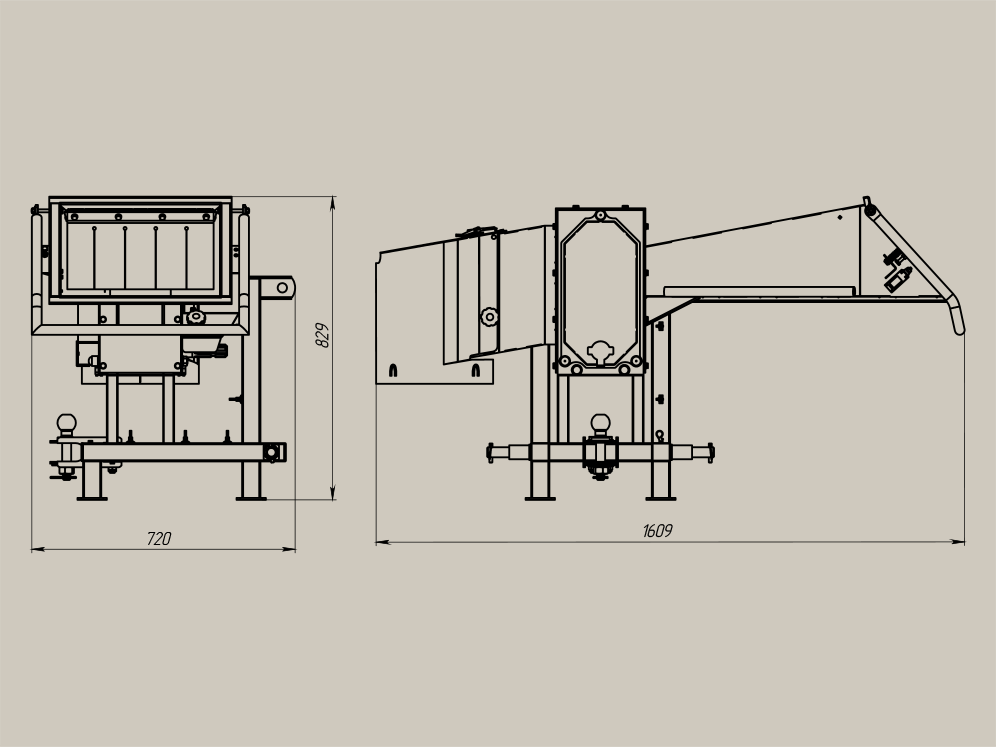

OVERALL DIMENSIONS AND WEIGHT CHARACTERISTICS
Length 1609 mm
Width 720 mm
Height 829 mm
Weight 120 kg
Input dimensions 165х133 mm
Diameter of the tractor mounting axle 28 and 19 mm
MAIN OPERATING SPECIFICATIONS
ENGINE SPECIFICATIONS

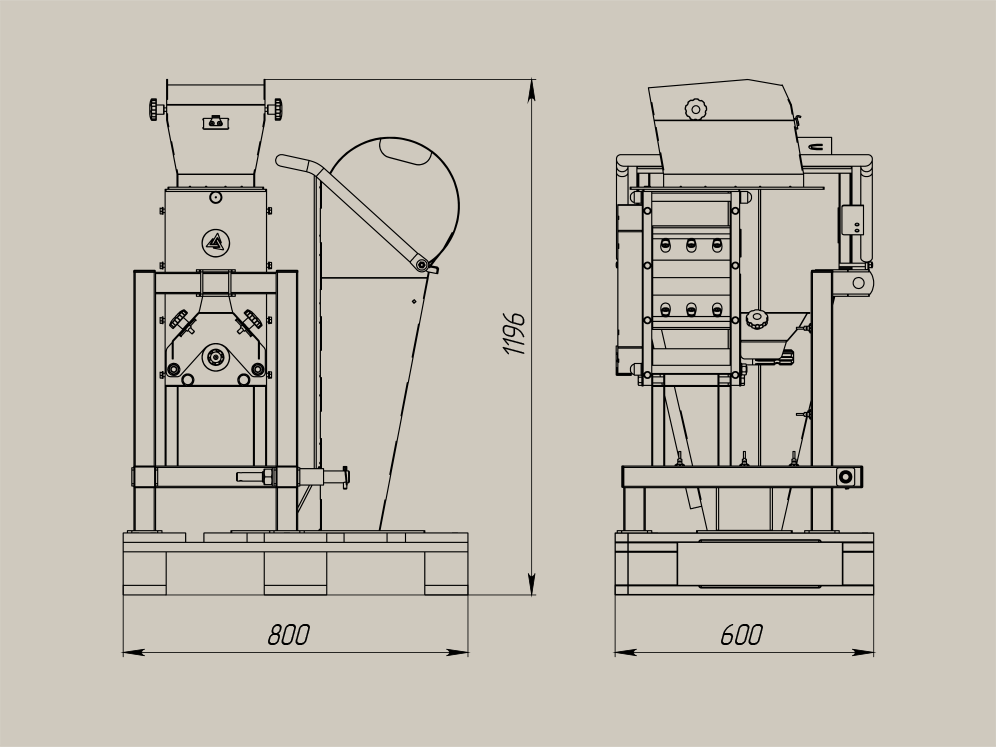

Transport Specifications
Length 800 mm
Width 600 mm
Height 1196 mm
Weight 130 kg
Input dimensions 165х133 mm
Diameter of the tractor mounting axle 28 and 19 mm

Related products

0%
Installment Plan
25%
Compensation
Wood chipper ARPAL Light

with gasoline engine

49 500₴
43 000₴
0%
Installment Plan
25%
Compensation
Wood chipper ARPAL Classic

with a gasoline engine

69 000₴
0%
Installment Plan
25%
Compensation
ARPAL PRO wood chipper for tractor

for tractor

75 000₴
0%
Installment Plan
25%
Compensation
ARPAL PRO Wood chipper

with gasoline engine on wheels

162 000₴
0%
Installment Plan
25%
Compensation
ARPAL MAX wood chipper for tractor

for a tractor

159 000₴
0%
Installment Plan
25%
Compensation
ARPAL PRO wood chipper for tractor

for tractor with a transporter

185 000₴
0%
Installment Plan
25%
Compensation
ARPAL MAX wood chipper for tractor

for tractor with a transporter

329 000₴
0%
Installment Plan
25%
Compensation
ARPAL PRO Wood chipper

with gasoline engine on a trailer with a transporter

259 000₴
0%
Installment Plan
25%
Compensation
ARPAL MAX Wood chipper

with a gasoline engine on a trailer with a rotating platform and a conveyor transporter

542 000₴
Conveyor to AM-120BD-K
100 000₴
Conveyor to AM-120TR-K
110 000₴
Conveyor to AM-200BD-K
Conveyor to AM-200TR-K
135 000₴
Dual-bagging attachment
6 000₴
Calibration sieve 20 mm

for ARPAL Classic wood shredder

700₴
Calibration sieve 15 mm

for ARPAL Classic wood shredder

700₴
Go to products

PureCut shredding technologies

From delicate twigs to hefty branches, it handles it all effortlessly.
A set of technical solutions that provide an accurate, powerful and reliable chipping system. These knives stay sharp for years, never breaking on twigs or nails. One sharpening is enough for up to 200 m³ of wood! They deliver precise cuts and consistent, reliable performance.

ARPAL ExtraCut Knives

  • Processes up to 200 m³ of wood per sharpening. Equipped with reliable knives made from durable AISI 5140 steel, featuring a double sharpening angle and a hardened cutting edge for consistently long-lasting, stable performance.

    The knives undergo precise heat treatment: the outer layer is hardened to 50 HRC on the Rockwell scale for exceptional durability, while the inner layer remains elastic to prevent chipping. A double sharpening angle further extends their lifespan, allowing for up to six re-sharpenings.

200 m³
per sharpening
  • Hardened cutting edge 50 HRC
  • Double bevel sharpening

I’ve chopped more times than I can count, and I still haven’t had to sharpen them. They cut just like new.

Vladislav, fuel harvesting

KineticCore 3.2 Gearbox

  • Even the thickest branches are no challenge.
    Thanks to a gearbox that boosts torque by 3,2 times, you can cut through them with ease and confidence, even under heavy load.

  • The design incorporates three heat-treated gears that enhance knife traction, ensuring the cutting mechanism runs smoothly and reliably—even when processing tough, irregular raw materials.

3.2x
torque increase

I pushed in an entire bush, and it sliced through like butter. More power than I ever expected.

Andriy, STOP-Lis, Ternopil region

SmartFix cone clutches

  • Precision in every cut.
    Tapered couplings allow the blades to be aligned perfectly in one plane, enabling the shredder to handle even the thinnest branches with ease.

  • Unlike rigid connections (splines, keys), tapered couplings do not wear out over time. They eliminate backlashes and allow for precise adjustment of the gap between the blades. In case of overload (over 2000 Nm), the coupling slips, protecting the mechanism from damage.

I saw how it shredded a business card at the exhibition — after that, no one had any questions about its ability to handle branches.

Ideal fastening of knives

  • The knives are held firmly in place and remain stable even under load.
    Unlike many models where the knives are simply screwed onto a flat surface, ours are set into precision-milled grooves — ensuring exceptional reliability and accuracy.

  • The fastening system uses a groove fit and high-strength class 12.9 bolts with sealant. This design ensures even load distribution along the shaft and allows for quick, precise knife adjustment after sharpening.

In standard shredders, knives tend to shift over time, affecting performance. Our design locks them precisely in keyways and secures them with high-strength bolts, ensuring absolute stability — no shifting, ever.

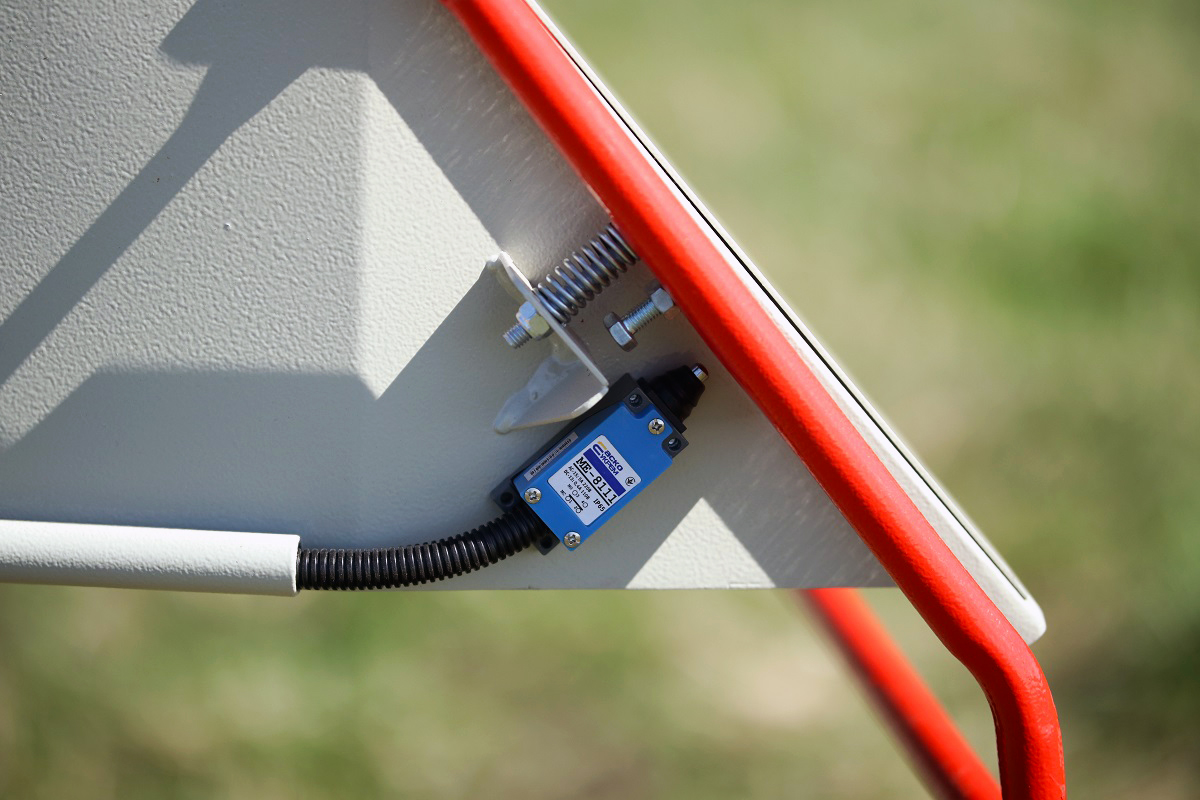

ARPAL Total Protect security package

Security isn’t a luxury — it’s a standard.
ARPAL Total Protect offers comprehensive solutions to safeguard you and your equipment, ensuring a safe and worry-free work environment.

Certificates
of conformity
to EU standards

  • We are a trusted brand in Germany, the UK, Switzerland, Ireland, and Australia. ARPAL is available in over 20 countries, thanks to its compliance with strict EU safety standards. This technology is rigorously tested — and it truly sets the standard.

Ensuring the chipper meets occupational health and safety standards is crucial for us. Thanks to ARPAL’s certification, we can confidently put it into operation.”

Serhiy, agricultural company, Lviv region.

The machinery complies with
a number of standards, including:

  • EN 13525:2020 — protection against accidental contact with knives
  • EN ISO 12100:2010 — designed for safety with minimal risk
  • EN ISO 13854:2019 — optimal clearances to safeguard hands
  • EN 1005-4:2008 — ergonomic design to prevent physical overload
  • EN ISO 4413:2010 — stable hydraulics, without leaks
  • EN ISO 3744:2010 — noise levels below 80 dB, ensuring comfort during extended use
  • EN 55012:2009 — electromagnetic compatibility; does not cause radio interference

These standards are more than just a formality. They ensure safe operation, precise control, hand protection, and consistent material feeding. ARPAL represents a mindset that values not just productivity, but also the people who operate the machine every day.

Using a cardan shaft with a friction clutch

  • For optimal safety and performance, we recommend connecting the wood chipper to the tractor using a Class T2 cardan shaft fitted with a friction clutch.

  • At a critical moment, this system absorbs the impact, preventing damage. Instead of the tractor breaking down or coming to a halt, the wood chipper stops, keeping your equipment safe and intact.

  • The clutch is composed of friction discs compressed by spring-loaded bolts. The force of the springs determines the moment of operation. Operating principle: when the chipper knives become jammed, the clutch discs begin to rotate, disengaging the load from the tractor.

    ⚠️The cardan shaft is not included with the wood chipper, but it is available for purchase separately from us.

A few times it happened so that the branch was just too big. The engine didn’t stall — it simply idled. I stopped the PTO, removed the branch and carried on. It’s smooth and stress-free.

Mykola, private gardener.

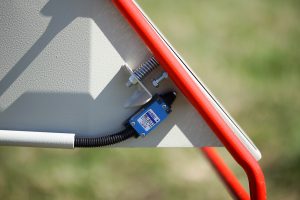

An extended hopper

  • You simply can’t reach the knives — the hopper is designed to make it physically impossible.

  • The input hopper’s depth and design comply with European safety standards for garden machinery.

Finally, a device that truly keeps everything safe. You don’t have to worry about it catching your sleeve or glove. The protection is designed down to the smallest detail, so you can work calmly.

Maksym, Equipment Operator.

Protective shields and curtains

  • All hazardous elements are fully protected with guards, preventing accidental contact with the belt or flywheel. Yet, when maintenance is required, accessing these parts is quick and convenient.

  • The transmission components are enclosed within a double-sided casing for enhanced safety. The hopper allows crushed raw materials to be ejected in one direction only, minimizing the risk of injury. Additionally, the input is equipped with a protective curtain to guard against flying chips.

When I work, I don’t worry about my hands or clothes. Everything is closed. If I need to remove the casing, it’s quick and easy — I don’t have to spend an hour disassembling the equipment.

Taras, landscape designer.

ErgoBase functional design

ARPAL shredders are designed with convenience, durability, and smart functionality in mind. Simply switch it on, and it works — no complicated settings or adjustments needed.

Reinforced input hopper

  • A robust bunker built to withstand impacts. During operation, branches frequently hit the bunker walls. Therefore, we designed it to be as rigid and deformation-resistant as possible

  • The hopper structure is reinforced along its perimeter with additional stiffening ribs and a supporting channel, while the attachment to the cutting module features a 5 mm-thick steel flange. This design prevents deformation or settling over time.

5 mm
steel flange
thickness

Not some flimsy tin shed — the bunker is solid. It can take a hit and hold.

Vasyl, homeowner

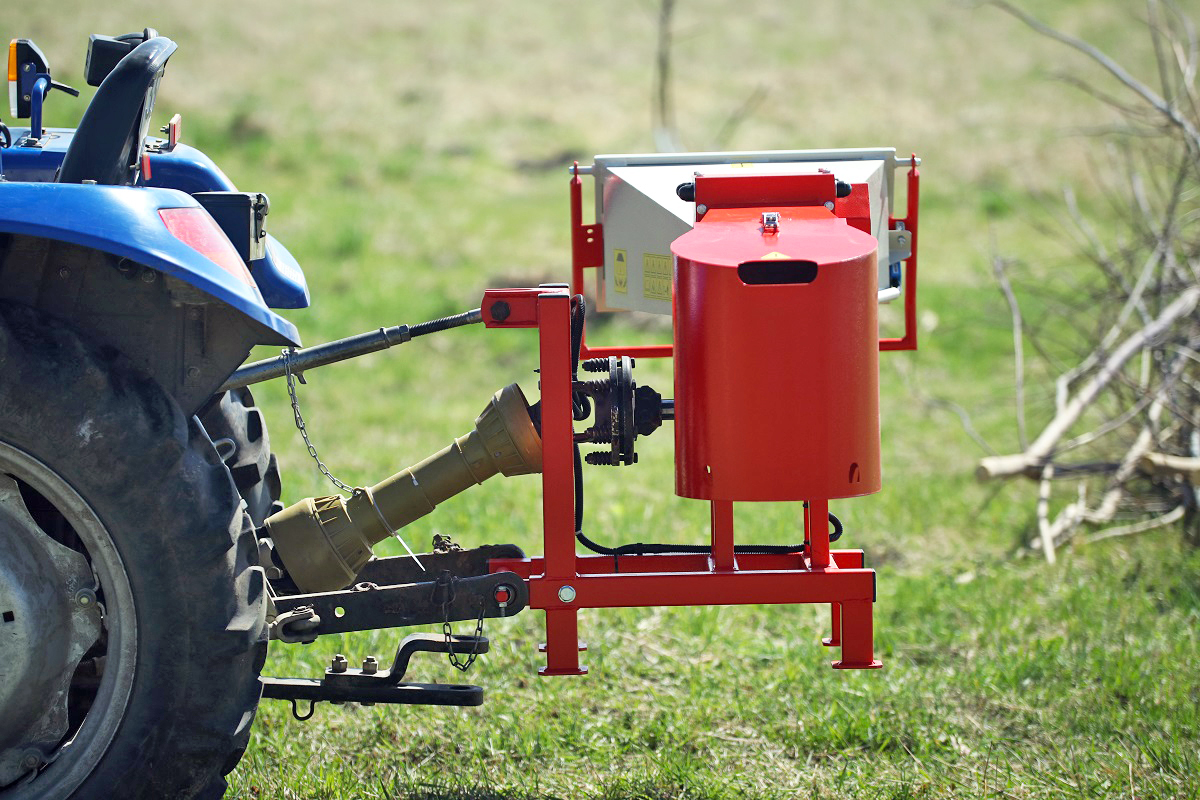

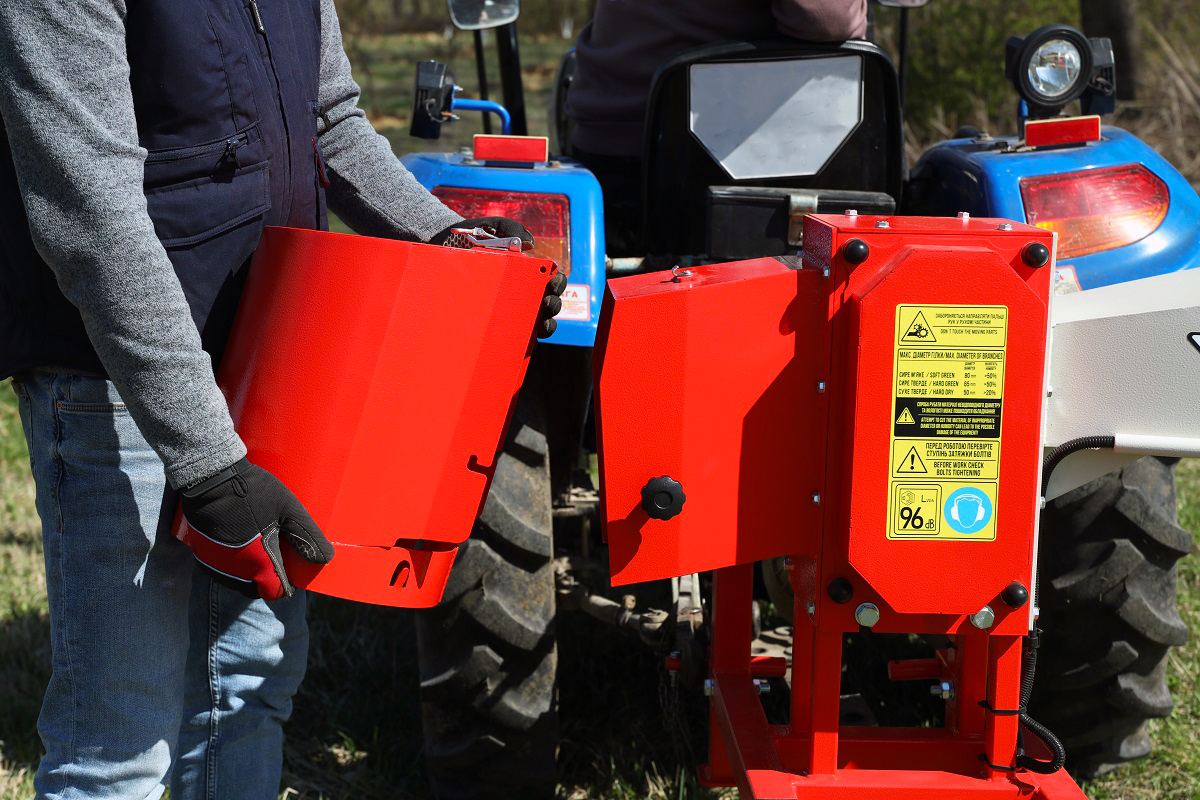

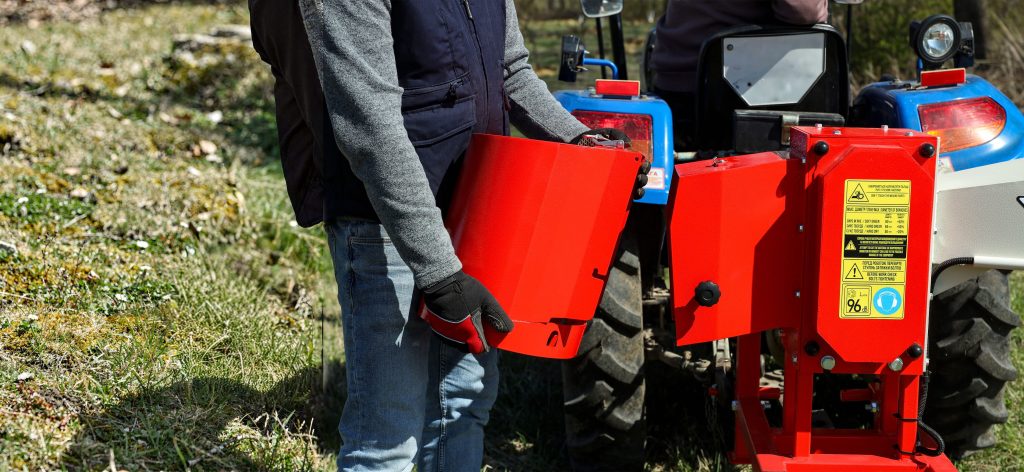

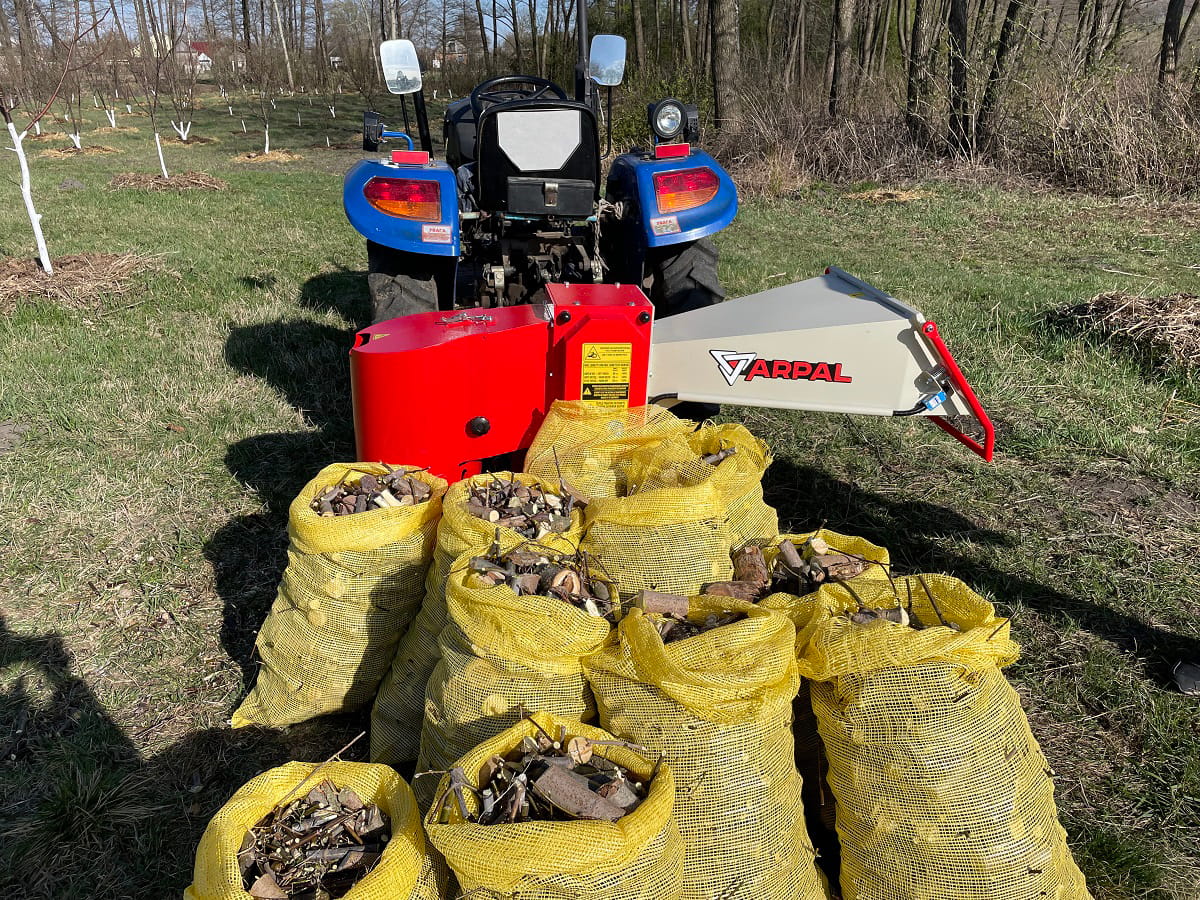

Combined output hopper

  • Pack the firewood as you like.
    In a bag or simply in a pile – thanks to the versatile output hopper.

  • The packer can be easily attached or removed by hand, with no tools required. Firewood can be loaded either in bags or in a pile.

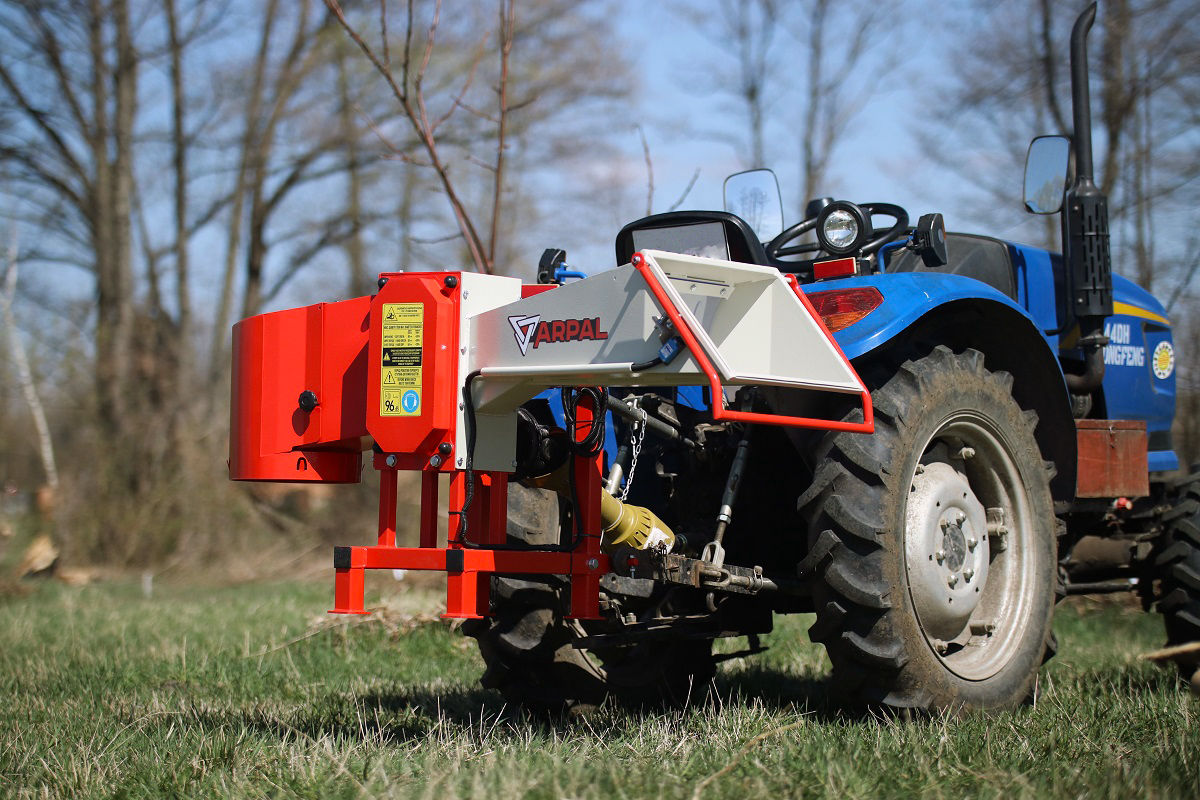

Rigid frame with a towbar

  • A solid base for long-term loads.
    The wood chipper can be easily transported being hitched to a tractor or trailer, thanks to its universal hitch compatible with both a towbar and a tractor trailer.

The frame is constructed from thick-walled pipe, designed to handle constant working loads. Its reinforced design effortlessly supports the weight of the entire chipper while withstanding the dynamic forces of operation. The universal hitch lets you connect the trailer directly to the shredder, enabling a seamless tractor–chipper–trailer setup.

I hitch everything at once: tractor, wood chipper, and trailer. I get the work done and drive on. It saves so much time.

Vasyl, farmer from Vinnytsia region.

Powder coating

  • Long-lasting protection — no rust or peeling. The coating stays strong, vibrant, and intact without fading or cracking over time.

  • Polymer powder paint is applied using a static charge and then baked at high temperatures, forming a dense, durable, and long-lasting protective coating.

Customers often send us videos after 3–4 years of use and it is hard to believe the feedback — the wood chipper still looks as if it just rolled off the production line.

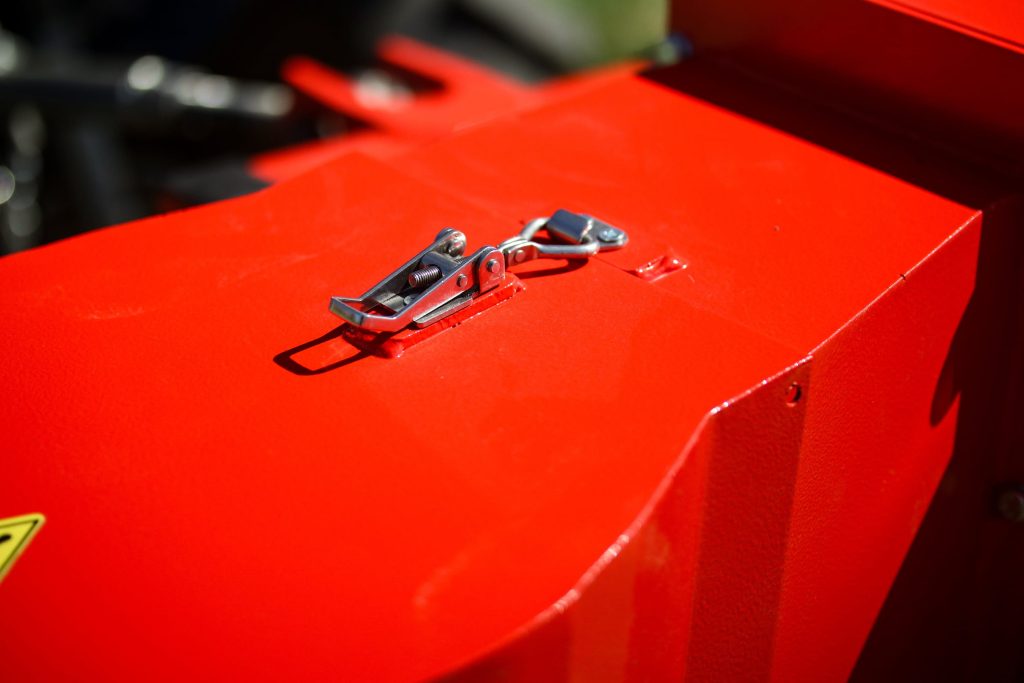

Not a single tool needed

  • All components are easily unscrewed and removed by hand — no keys or screwdrivers required. Maintenance can be carried out effortlessly, without any additional tools.

here isn’t always a tool set handy when you are on the go  —
and that might really save the day.

0
tools needed

Advantages that speak
for themselves

A 3-Year Warranty

Work with complete peace of mind — we stand behind the quality of our products.

Our warranty covers all major components and mechanisms for three years, excluding consumables such as knives, belts, and friction clutch cams.

The engine carries a separate 1-year warranty from the manufacturer.

Even if an original paint defect appears, we are ready to fix it. Our commitment to reliability means your equipment will perform season after season, without issues.

Durability

The first ARPAL wood chipper was delivered to a client 12 years ago—and it’s still running flawlessly.

Enjoy a 3-year warranty, with post-warranty care available throughout the equipment’s entire service life.

Owning ARPAL equipment means you always have access to genuine spare parts and expert service. We maintain full specifications, carefully select parts, and provide support whenever you need it.
