Wood chippers
АМ-80BD-M
Gasoline
80 mm
4 m3/h

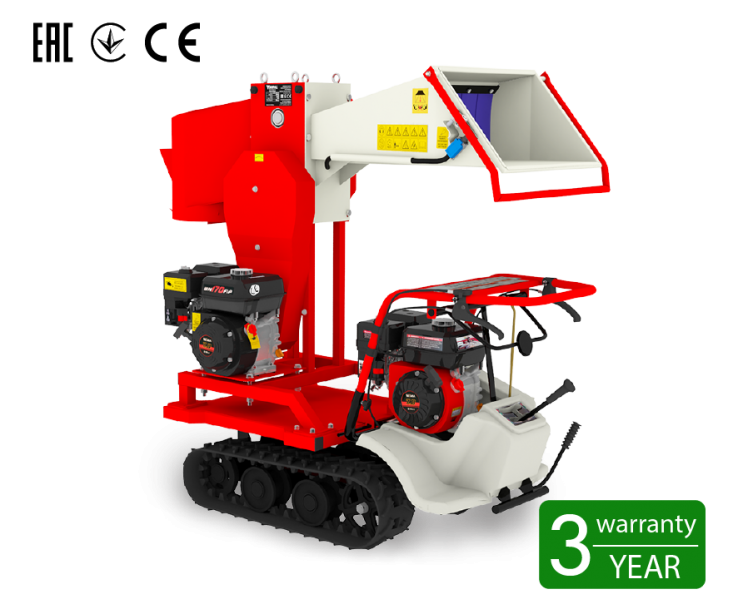

Wood chipper AM-80BD-M is chopping branches, slats, and other wood waste into billets 60-120 mm in length. A feature of the model is a self-propelled chassis with a tracked drive, which increases the mobility and maneuverability of the wood chipper on difficult landscapes and uneven surfaces. The maximum diameter of the branches is 80 mm, depending on the species and the humidity of the tree. Finished firewood enters the hopper which has the ability to package the product into a 500x800 mm gri…
Price: 2 546 Euro
Technical parameters
Extended description
OVERALL DIMENSIONS AND MASS CHARACTERISTICS
Length:
1685 mm
Width:
745 mm
Height:
1400 mm
Weight:
267 kg
Inlet slot size:
130х165 mm
MAIN WORKING CHARACTERISTICS
Max. productivity:
4 m3/h
Soft wood max. diameter:
80 mm
Hard wood max. diameter:
60 mm
Length of ready pieces:
60...120 mm
Quantity of knives:
6 pcs
Max. turns on cutting knives:
360 rpm
ENGINE CHARACTERISTICS
Engine power:
7 h.p.
Max. turns on engine shaft:
3600 rpm
Fuel type:
А-92
Fuel expenditure:
400 g/h

The wood chipper AM-80BD-M is designed for processing and utilization by cutting branches, rods, dallets, lamellas and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 6 ... 12 cm, this size is not regulated but depends on the diameter (thickness) of the raw materials. Wood chipper AM-80BD-M is capable of cutting branches with a diameter of up to 8 cm, depending on the humidity and wood species. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating appliances, as well as for the production of charcoal.

The productivity of the wood chipper AM-80BD-M is 4 cubic meters of finished products per hour. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work. Wood chipper AM-80BD-M is equipped with a gasoline engine WEIMA 7 hp. whose fuel consumption is only 400 g / h. This engine is one of the most high-quality on the territory of Ukraine, service centers are located in each region. The engine is protected against overload by a special friction clutch of our design. The engine has a separate warranty from the manufacturer for a period of 12 months.

The working element of the wood chipper is knives. The wood chipper AM-80BD-M has 6 knives, the knives are made of 40H steel, have a double grinding angle and necessarily pass the heat treatment process on a modern HIGH FREQUENCY INDUCTION HEATING MACHINE installation. Cutting knives are inserted into the milled groove of the working shaft, this technology significantly reduces the load on the fixing bolts of the knives.

The wood chipper AM-80BD-M is installed on the self-propelled chassis with the caterpillar drive. The platform allows you to move the wood chipper for poorly prepared places, parks, fields, forests, gardens, plantings, etc. Forward movement has 6 gears with a speed from 0.5 to 5.5 km / h. For reverse, there are 2 gears, with a maximum speed of 2.3 km / h. The minimum turning radius of the AM-80BD-M wood chipper is 1.15 m. The chassis is set in motion by a 7-hp gasoline 4-stroke engine.

On the wood chipper AM-80BD-M an unloading hopper is installed that can pack finished products into grids. The unloading hopper has one attachment under the mesh. For wood chipper AM-80BD-M, standard mesh sizes of 50x80 cm are suitable.

The input hopper of the branch chipper is equipped with a curtain made of transparent PVC to protect the operator from chips during operation.

The wood chipper AM-80BD-M is completely produced at our enterprise. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all constructions are stripped. The shredder is covered with powder paint, which significantly extends the life of the constructions.

We are confident in our products; therefore, we provide a 36-month guarantee for the AM-80BD-M. In addition, we, as a manufacturer, produce both guarantee and post-warranty maintenance of the wood chipper AM-80BD-M.

By purchasing a wood chipper from us you get a reliable assistant on the way to your energy independence!
