Wood chipper
Wood chippers
AM-160TR
Tractor PTO
160 mm
12 m3/h

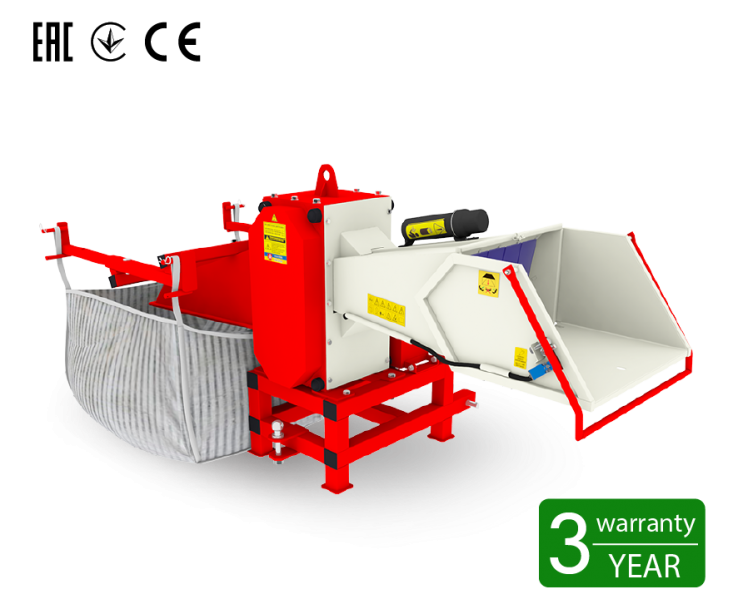

Wood chipper AM-160TR cut branches, slats, drifts and other wood waste into billets 120-240 mm long. The maximum diameter of the branches is 160 mm, depending on the species and moisture of the tree. The shredder is driven by a PTO of a minimum power tractor of 80 h.p. and mounted on a three-point hitch. To connect the shredder to the tractor, a cardan shaft T5 with a friction and overrunning clutch is necessary.
Price: 2 150 Euro
Technical parameters
Extended description
OVERALL DIMENSIONS AND MASS CHARACTERISTICS
Length:
2107 mm
Width:
1267 mm
Height:
1237 mm
Weight:
450 kg
Inlet slot size:
200x280 mm
Axle mounting diameter to tractor:
28 mm
MAIN WORKING CHARACTERISTICS
Max. productivity:
12 m3/h
Soft wood max. diameter:
160 mm
Hard wood max. diameter:
140 mm
Length of ready pieces:
120...240 mm
Quantity of knives:
6 pcs
Max. turns on cutting knives:
220 rpm
TRACTOR CHARACTERISTICS
Engine min. power:
80 h.p.
Max. turns on PTO:
540 rpm

Wood chipper AM-160TR is designed for processing and recycling by cutting branches, rods, duplexes, lamellas and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 12 ... 240 cm, this size is not regulated but depends on the diameter (thickness) of the raw material. The wood chipper AM-160TR is capable to cut branches up to 16 cm in diameter depending on humidity and wood species. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating appliances, as well as for the production of charcoal.

The productivity of the AM-160TR is up to 12 cubic meters of finished products per hour. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work. The wood chipper AM-160TR is driven from the tractor PTO shaft and mounted on a standard three-point linkage. The minimum required power of the tractor for working with the chopper branches is 80 hp. To connect the tractor to the chopper, we recommend using a cardan shaft of class T5 with a friction and overrunning clutch that protects the chaff from the branches and the tractor from overloading.

The working element of the wood chipper is knives. The wood chipper AM-160TR has 6 knives, the knives are made of 40H steel, have a double grinding angle and necessarily pass the heat treatment process on a modern HIGH FREQUENCY INDUCTION HEATING MACHINE  installation. Cutting knives are inserted into the milled groove of the working shaft, this technology significantly reduces the load on the fixing bolts of the knives.

The crushed branches can be loaded into the big bag, with a special mount on the output bunker.

The wood chipper AM-160TR is completely produced at our enterprise. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all constructions are stripped. The shredder is covered with powder paint, which significantly extends the life of the constructions.

We are confident in our products; therefore, we provide a 36-month guarantee for the AM-160TR. In addition, we, as a manufacturer, produce both guarantee and post-warranty maintenance of the wood chipper AM-160TR.

By purchasing a wood chipper from us you get a reliable assistant on the way to your energy independence!
