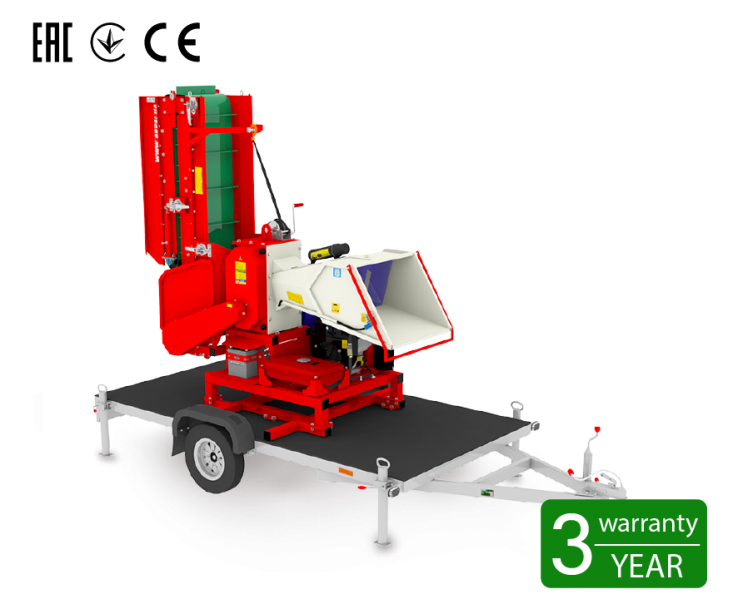

Wood chippers
AM-160BD-K
Gasoline
160 mm
12 m3/h
Wood chipper AM-160BD-K is designed for processing and recycling by cutting branches, rods, duplexes, lamellas and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 12 ... 240 cm. The wood chipper AM-160BD-K is capable to cut branches up to 16 cm in diameter depending on humidity and wood species. Wood chipper AM-160BD-K is equipped with a gasoline engine WEIMA 24 hp. The wood chipper AM-160BD-K is equipped with a conveyor which allows feeding the…
Price: 7 280Euro
Price without trailer: 5 920Euro
Technical parameters
Extended description
OVERALL DIMENSIONS AND MASS CHARACTERISTICS
Length:
2250 mm
Width:
997 mm
Height:
2300 mm
Weight:
830 kg
Inlet slot size:
200x280 mm
MAIN WORKING CHARACTERISTICS
Height of the conveyor:
3,5 m
Max. productivity:
12 m3/h
Soft wood max. diameter:
160 mm
Hard wood max. diameter:
140 mm
Length of ready pieces:
120...240 mm
Quantity of knives:
6 pcs
Max. turns on cutting knives:
220 rpm
ENGINE CHARACTERISTICS
Engine power:
24 h.p.
Max. turns on engine shaft:
3600 rpm
Fuel type:
А-92

Wood chipper AM-160BD-K is designed for processing and recycling by cutting branches, rods, duplexes, lamellas and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 12 ... 240 cm, this size is not regulated but depends on the diameter (thickness) of the raw material. The wood chipper AM-160BD-K is capable to cut branches up to 16 cm in diameter depending on humidity and wood species. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating appliances, as well as for the production of charcoal.

The productivity of the wood chipper AM-160BD-K is 4 cubic meters of finished products per hour. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.

Wood chipper AM-160BD-K is equipped with a gasoline engine LIFAN 24 hp. This engine is one of the most high-quality on the territory of Ukraine, service centers are located in each region. The engine is protected against overload by a special friction clutch of our design. The engine has a separate warranty from the manufacturer for a period of 12 months.

The working element of the wood chipper is knives. The wood chipper AM-160BD-K has 6 knives, the knives are made of AISI 5140 steel, have a double grinding angle and necessarily pass the heat treatment process on a modern HIGH FREQUENCY INDUCTION HEATING MACHINE  installation. Cutting knives are inserted into the milled groove of the working shaft, this technology significantly reduces the load on the fixing bolts of the knives.

The wood chipper AM-160BD-K is equipped with a conveyor which allows feeding the chopped raw material directly to the car trailer or to a special container (container, big bag). The conveyor allows you to significantly increase labor productivity and reduce the number of personnel when working. In conveyors we use only quality PVC tapes produced in Poland and Holland.

The wood chipper AM-160BD-K is equipped with a special safety handle which is located on the edge of the input hopper and serves for an emergency stop of the grinder of branches during operation. Also, the input hopper is equipped with a curtain made of transparent PVC to protect the operator from chips during operation.

The wood chipper AM-160BD-K is completely produced at our enterprise. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all constructions are stripped. The shredder is covered with powder paint, which significantly extends the life of the constructions.

We are confident in our products; therefore, we provide a 36-month guarantee for the AM-160BD-K. In addition, we, as a manufacturer, produce both guarantee and post-warranty maintenance of the wood chipper AM-160BD-K.

By purchasing a wood chipper from us you get a reliable assistant on the way to your energy independence!
