Wood chippers
AM-120TR MAX
Tractor PTO
120 mm
6 m3/h

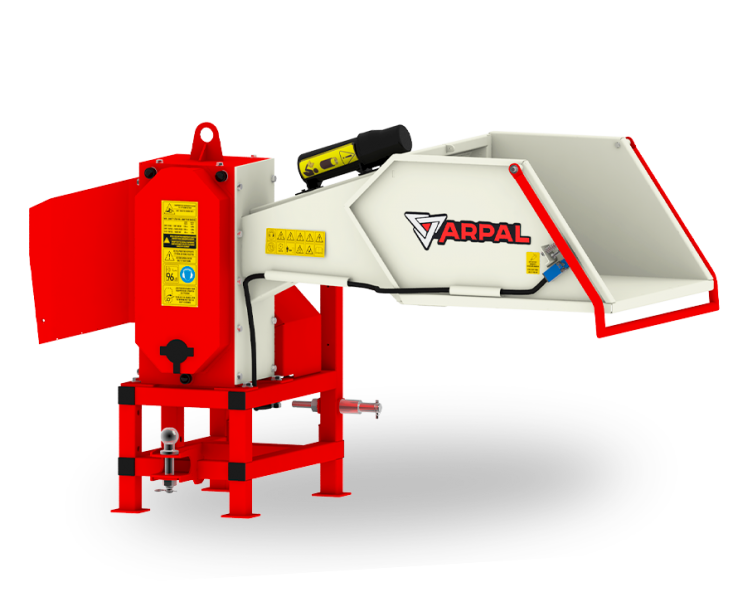

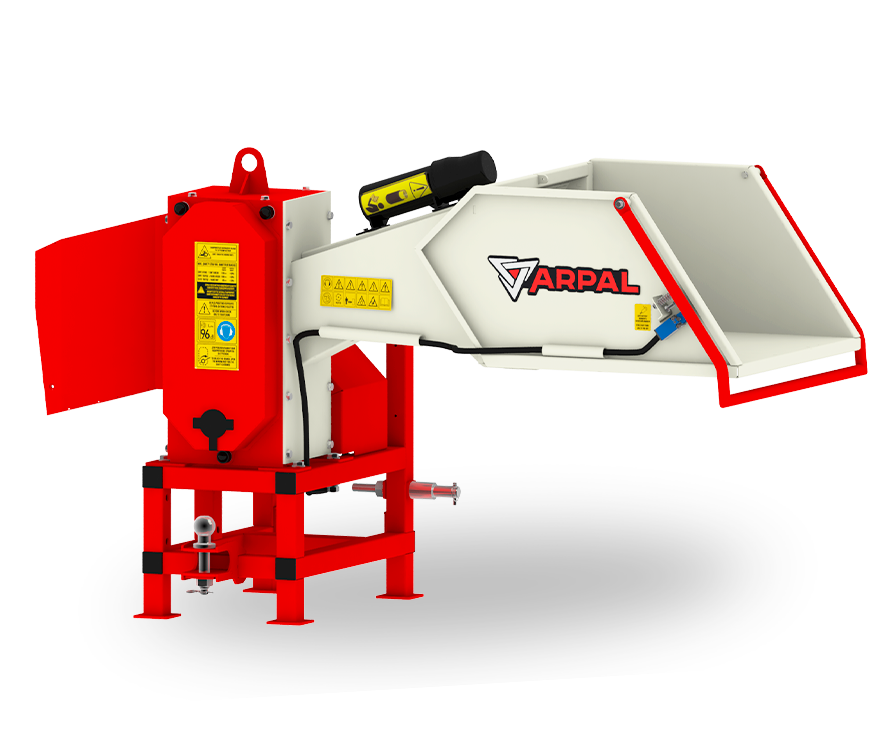

Wood chipper AM-120TR cuts branches, slats, drifts and other wood waste into billets 90-180 mm long. The maximum diameter of the branches is 120 mm, depending on the species and moisture of the tree. Ready wood chips go into the hopper which pack them into sacks the size of which is 500x800mm.The shredder is driven by a PTO of a minimum power of tractor of 24 h.p. and mounted on a three-point hitch. To connect the shredder to the tractor, a cardan shaft T5 with a friction clutch is necessary.
Price: 1 400Euro
Technical parameters
Extended description
OVERALL DIMENSIONS AND MASS CHARACTERISTICS
Length:
1730 mm
Width:
890 mm
Height:
1200 mm
Weight:
220 kg
Inlet slot size:
160х280 mm
Axle mounting diameter to tractor:
28 mm
MAIN WORKING CHARACTERISTICS
Max. productivity:
6 m3/h
Soft wood max. diameter:
120 mm
Hard wood max. diameter:
100 mm
Length of ready pieces:
90...180 mm
Quantity of knives:
6 pcs
Max. turns on cutting knives:
220 rpm
TRACTOR CHARACTERISTICS
Engine min. power:
25 h.p.
Max. turns on PTO:
540 rpm

Wood chipper AM-120TR MAX is designed for processing and recycling by cutting branches, rods, duplexes, lamellas and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 9 ... 18 cm, this size is not regulated but depends on the diameter (thickness) of the raw material. The wood chipper AM-120TR MAX is capable to cut branches up to 12 cm in diameter depending on humidity and wood species. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating appliances, as well as for the production of charcoal.

The productivity of the AM-120TR MAX is up to 6 cubic meters of finished products per hour. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.

 The wood chipper AM-120TR MAX is driven from the tractor PTO shaft and mounted on a standard three-point linkage. The minimum required power of the tractor for working with the chopper branches is 25 hp. To connect the tractor to the chopper, we recommend using a cardan shaft of class T5 with a friction and overrunning clutch that protects the chaff from the branches and the tractor from overloading.

The working element of the wood chipper is knives. The wood chipper AM-120TR MAX has 6 knives, the knives are made of AISI 5140 steel, have a double grinding angle and necessarily pass the heat treatment process on a modern HIGH FREQUENCY INDUCTION HEATING MACHINE  installation. Cutting knives are inserted into the milled groove of the working shaft, this technology significantly reduces the load on the fixing bolts of the knives.

On the wood chipper AM-120TR MAX, an outlet hopper is installed that can pack finished products into sacks. The unloading hopper has two fasteners under the mesh and a slide switch which allows you to select the desired direction of discharge. This design allows you to significantly accelerate the process of packing chopped firewood. For the AM-120DTR MAX chopper, standard mesh sizes of 50x80 cm are suitable. Also, you can order a complete set with a direct bunker.

Also, the input hopper is equipped with a curtain made of transparent PVC to protect the operator from chips during operation

The wood chipper AM-120TR MAX is completely produced at our enterprise. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all constructions are stripped. The shredder is covered with powder paint, which significantly extends the life of the constructions.

We are confident in our products; therefore, we provide a 36-month guarantee for the AM-120TR MAX. In addition, we, as a manufacturer, produce both guarantee and post-warranty maintenance of the wood chipper AM-120TR MAX.

By purchasing a wood chipper from us you get a reliable assistant on the way to your energy independence!
