Wood chippers
AM-120D MAX
Diesel
120 mm
6 m3/h

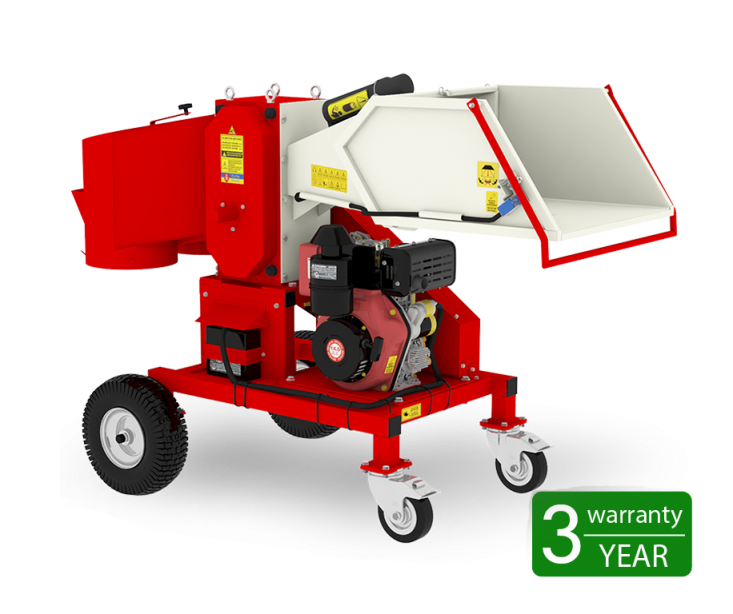

The wood chipper AM-120D MAX is designed for processing and utilization by cutting branches, laths, boards, slats and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 9 ... 18 cm, this size is not regulated but depends on the diameter (thickness) of the raw material.
Price: 3 020Euro
Technical parameters
Extended description
OVERALL DIMENSIONS AND MASS CHARACTERISTICS
Length:
1730 mm
Width:
1080 mm
Height:
1450 mm
Weight:
340 kg
Inlet slot size:
160х280 mm
MAIN WORKING CHARACTERISTICS
Max. productivity:
6 m3/h
Soft wood max. diameter:
120 mm
Hard wood max. diameter:
100 mm
Length of ready pieces:
90...180 mm
Quantity of knives:
6 pcs
Max. turns on cutting knives:
360 rpm
ENGINE CHARACTERISTICS
Engine power:
14 h.p.
Max. turns on engine shaft:
3600 rpm
Fuel type:
Diesel fuel

The wood chipper AM-120D MAX is designed for processing and utilization by cutting branches, laths, boards, slats and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 9 ... 18 cm, this size is not regulated but depends on the diameter (thickness) of the raw material. The chopper AM-120D MAX is able to cut branches up to 12 cm in diameter, depending on the moisture and wood species. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating appliances, as well as for the production of charcoal.

The productivity of wood chipper AM-120D MAX is 6 cubic meters of ready products per hour. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.

The grinder of branches AM-120BD is equipped with a diesel engine of the brand WEIMA with a capacity of 14 hp. and equipped with an electric starter. This engine is one of the most high-quality on the territory of Ukraine, service centers are located in each region. The engine is protected against overload by a special friction clutch of our design. The engine has a separate warranty from the manufacturer for a period of 12 months.

The working element of the chopper is knives. The AM-120D MAX grinder has 6 knives, the knives are made of AISI 5140 steel, have a double angle of grinding and necessarily pass the heat treatment process on a modern HDTV installation. Cutting knives are inserted into the milled groove of the working shaft, this technology significantly reduces the load on the fixing bolts of the knives.

The wood chipper AM-120D MAX is installed on a rigid frame from a profile pipe that has paws with which it is possible to fix the grinder of branches on any convenient surface (for example, an automobile trailer). In the configuration AM-120D MAX the frame is additionally equipped with removable wheels. Front mounted swivel wheels with fixtures, rear pneumatic wheels. You can order AM-120D MAX in a complete set without wheels, or order them separately.

On the wood chipper AM-120D MAX, an outlet hopper is installed that can pack finished products into sacks. The unloading hopper has two fasteners under the mesh and a slide switch which allows you to select the desired direction of discharge. This design allows you to significantly accelerate the process of packing chopped firewood. For the AM-120D MAX chopper, standard mesh sizes of 50x80 cm are suitable. Also, you can order a complete set with a direct bunker.

Also, the input hopper is equipped with a curtain made of transparent PVC to protect the operator from chips during operation

The wood chipper AM-120D MAX is completely produced at our enterprise. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all constructions are stripped. The shredder is covered with powder paint, which significantly extends the life of the constructions.

We are confident in our products; therefore, we provide a 36-month guarantee for the AM-120D MAX. In addition, we, as a manufacturer, produce both guarantee and post-warranty maintenance of the wood chipper AM-120D MAX.

By purchasing a wood chipper from us you get a reliable assistant on the way to your energy independence!
