DK-640 Combined
Wood splitters
DK-640 Combined
Price:
1 550 Euro
read more
Drive type: Gasoline
Productivity: 30 m3/work shift
Diameter of the branches: 500 mm
Engine power: 7 h.p.
Warranty: 12 months
DK-640BD
Wood splitters
DK-640BD
Price:
1 250 Euro
read more
Drive type: Gasoline
Productivity: 30 m3/work shift
Diameter of the branches: 500 mm
Engine power: 7 h.p.
Warranty: 12 months
DK-640E-220
Wood splitters
DK-640E-220
Price:
1 250 Euro
read more
Drive type: Electric
Productivity: 30 m3/work shift
Diameter of the branches: 500 mm
Engine power: 2,2 kW
Warranty: 12 months
DK-640E-380
Wood splitters
DK-640E-380
Price:
1 250 Euro
read more
Drive type: Electric
Productivity: 30 m3/work shift
Diameter of the branches: 500 mm
Engine power: 2,2 kW
Warranty: 12 months
* PRICES ARE GIVEN WITHOUT VAT

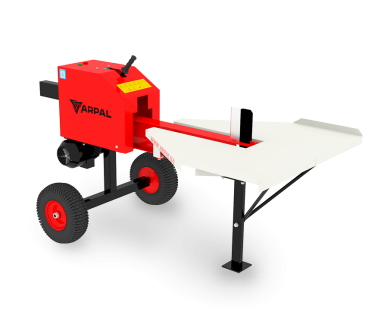

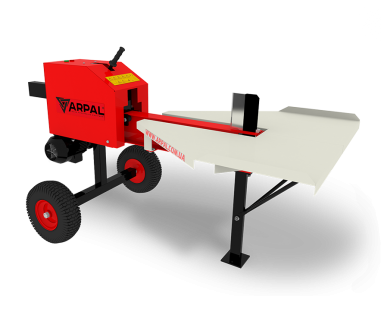

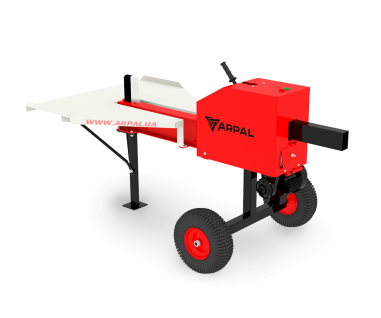

The machanic wood splitter is a device for fast and efficient wood splitting. The tools for cutting are designed to simplify manual labor and increase the productivity of work when harvesting firewood.Wood splitters produced by Arpal are designed for splitting logs up to 500 mm in diameter and up to 640 mm in length.Splitters of firewood are widely used in farms, communal services, private farms, in the mass harvesting of firewood, in forestry, woodworking enterprises, etc.

We produce machines for cutting firewood of mechanical type, the main working element of such equipment is the rack on which the pusher is located, when pushing the handle of the rack is fed forward and pushes the log on the knife-splitter about which the logging process takes place. The speed of the rail is only 1.5 seconds, which allows you to split the logs almost instantly. The productivity of a wood-chipper makes from 15 to 30 m3 firewood per shift, it is much faster than similar hydraulic-type machines.The productivity of the device for chipping wood depends directly on the type of wood shredder and moisture of the tree and also on the number of personnel who work with the equipment.The force that creates the pusher is 12 tons, which allows splitting any knots and seals in the logs.Wood splitters are produced with a drive from an electric motor or from a gasoline engine, and a combination of a wood splitter with electric and gasoline engines is also possible.

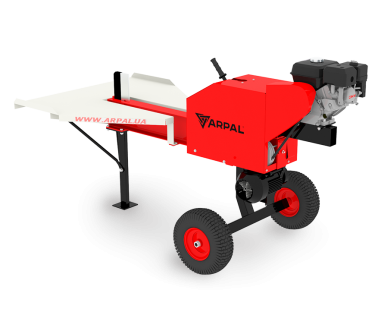

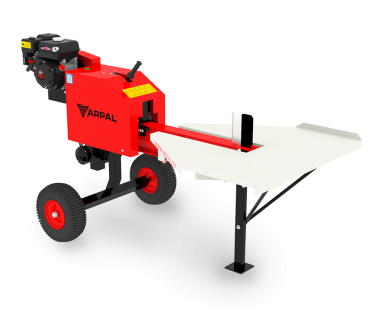

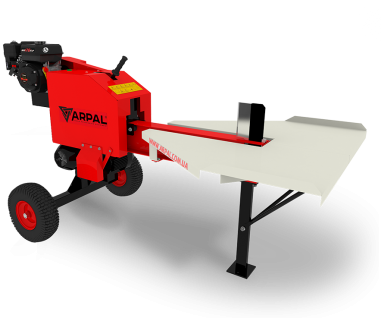

Gasoline wood splitters are designed for use in places where there is no possibility of connection to electricity. The gasoline engine allows the use of wood splitter for firewood directly at the place of work (for example, in a forest). The fuel consumption of the gasoline engine of the machine for cutting wood is only 400 grams of gasoline per hour of operation. For gasoline woodcutters we install engines with a capacity of 6.5 horsepower with a friction clutch to protect the unit and the engine from critical loads. Electric wood splitters are used in places that have access to a power source. Such wood splitters can be used indoors without fear of harmful exhaust gases. Electric cars are supplied with engines with a power of 2.2 kW and the motor can be powered from a 380 V or 220 V network without loss of power. Electric motors are connected to the network via a magnetic starter with a thermal relay, which is triggered when the wood splitter is overloaded. Also all electric motors are equipped with friction clutches of our design.

There are also combined rack wood splitters, which are equipped with two drives. On such wood splitters we install a gasoline engine at 6.5 hp. and at the same time an electric motor with a power of 2,2 kW with 220 V or 380 V power supply. Such a wood splitter is convenient in that it can be used both directly in the forest and indoors. Both engines of the combined wood splitter are protected by friction clutches from overloads during operation.The details of the wood splitter are produced by our specialists at the plant. In the production of tools, a wide group of machines is involved, including machines with numerical program control. The assembly of the wood splitters is subject to quality control.The frame of the device for chopping firewood is equipped with two pneumatic wheels for the convenience of moving through the territory. Two knobs are made on the table of the cleaver, with the help of which it is possible to easily operate the machine for cutting wood while moving through the territory.

The wood splitter has a rigid and reliable construction, the surface of the wood cutting machine is powder coated, all the production stages undergo thorough quality control. We provide a warranty for all firewood splitting devices of our production for a period of 12 months, and we also perform warranty and post-warranty maintenance of the equipment!
