Wood shredders
100 mm
6 m3/h

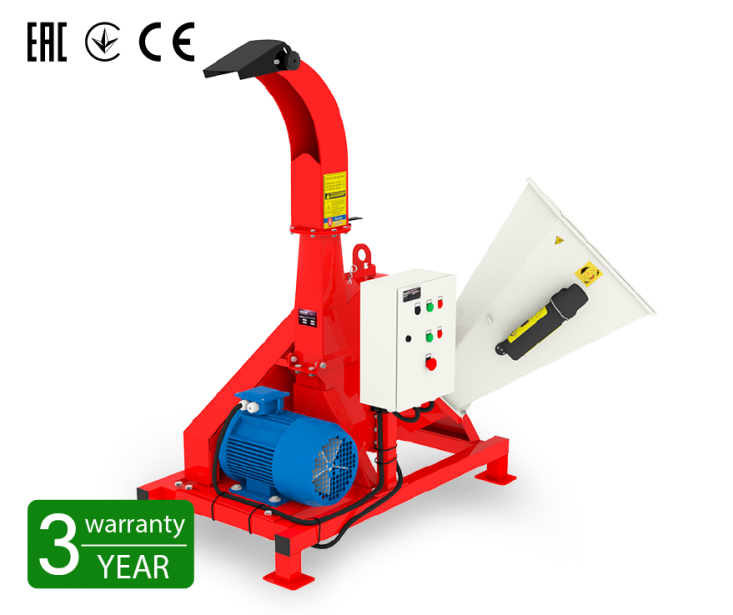

Wood shredder MK-100E disk type chopps branches, slats, drifts and other wood waste into the technological chips with a size of 5..50 mm. The maximum diameter of the branches is 100 mm, depending on the species and humidity of the tree. Finished chips are fed through the outlet socket under pressure. The wood shredder can change the direction of the chip flow by 360 degrees. The wood shredder is powered by an 11 kW electric motor.
Technical parameters
Extended description
1700 mm
1290 mm
1650 mm
295 kg
Max. productivity:
6 m3/h
Soft wood max. diameter:
100 mm
Hard wood max. diameter:
80 mm
Size of splinter:
5...50 mm
Quantity of knives:
4 pcs
Max. turns on cutting knives:
835 rpm
Engine power:
11 kW
Max. turns on engine shaft:
3000 rpm
380 V

Wood shredder MK-100E disk type is designed for processing and utilization by grinding branches, rods, duplexes, lamellas and other wood waste. Wood shredder turns raw materials into technological chips. Up to 90% of the resulting chips will be 5 ... 50 mm in size, 10% in free size, when grinding thin branches, it is possible to increase or decrease the fraction. The size of the chips is not regulated and basically depends on the type of feed material. Wood shredder MK-100BD is capable of cutting branches up to 10 cm in diameter, depending on the moisture and wood species. Finished chips can be used for heating in solid fuel and pyrolysis boilers, fireplaces, stoves and other heating appliances.
Also, wood splinter can be used as mulch material for plants or fertilizer. With further processing from wood chips, it is possible to obtain fuel pellets or granules.

The working body of the MK-100E is a disk on which 4 knives are located, on the opposite side of the disk there are blades which create the necessary air pressure to feed the chips on the unloading funnel. The knives are made of 55WCrV8 steel and are double-sided which significantly extends the life of the knives of the chipper. Necessarily the knives undergo the heat treatment process on a modern HIGH FREQUENCY INDUCTION HEATING MACHINE installation.  The productivity of the MK-100E chipper is as much as 6 cubic meters of finished chips per hour of operation. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.

The wood shredder MK-100E is equipped with an electric motor of 11 kW power 380V. On the cutting station there is a control panel of the engine which has a system of engine protection against overloads. The installation of the electric motor makes it possible to use the spinning of branches inside the premises without fear of the harmful exhaust gases of gasoline drives.

Wood shredder MK-100E is installed on a rigid frame of a profile pipe that has paws with which it is possible to fix the chopper on any convenient surface (for example, an automobile trailer). On the chopper there is an outlet hopper that allows you to change the direction of the flow of chips in two planes and rotates by 360˚.

The wood shredder MK-100E is completely manufactured at our enterprise. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all structures are stripped. The wood shredder is covered with powder paint, which significantly extends the service life of the structures.We are confident in our products, so we provide a 36-month guarantee for wood shredder MK-100E. In addition, we, as a manufacturer, produce both warranty and post-warranty maintenance of the wood shredder MB-100BD.

By purchasing a chipper from us you get a reliable assistant on the way to your energy independence!
