Wood splitters
DK-640BD
Gasoline
500 mm
30 m3/work shift

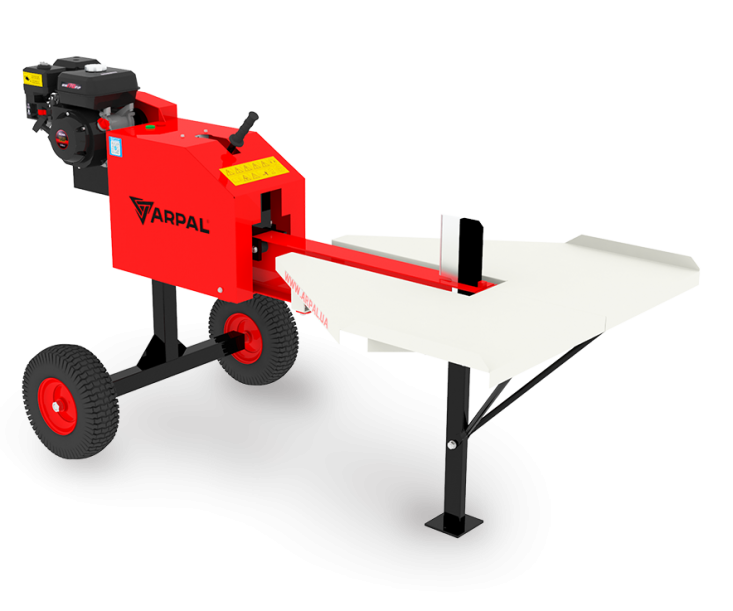

The wood splitter DK-640BD rail type is designed for chopping firewood of any kind of wood and any humidity up to 640 mm. The wood splitter is powered by a 6.5-horsepower gasoline engine. The woodcutter pusher acts on the log with a force of 12 tons so the wood splitter is not afraid of any boughs. The travel time of the wood splitter is 1.5 s, which makes it possible to work with high productivity. The wood splitter frame has wheels for easy moving.
Price: 1 400Euro
Technical parameters
Extended description
OVERALL DIMENSIONS AND MASS CHARACTERISTICS
Length:
2200 mm
Width:
1200 mm
Height:
1200 mm
Weight:
250 kg
MAIN WORKING CHARACTERISTICS
Max. productivity:
30 m3/work shift
Log max. length:
640 mm
Log max. diameter:
500 mm
Force of splitting:
12 t
Speed of rod move:
1,5 s
ENGINE CHARACTERISTICS
Engine power:
7 h.p.
Max. turns on engine shaft:
3600 rpm
Fuel type:
А-92
Fuel expenditure:
500 g/h

The wood splitter DK-640 combined mechanical is designed for chopping firewood of any kind of wood and any humidity up to 500 mm in diameter and up to 640 mm in length. The wood splitter operates according to the principle of operation of the pusher driven by a rack. When working, the wood splitter can develop a force of up to 12 tons, which allows it to cope with any kind of wood and any knots. The speed of the wood splitter is only 1.5 seconds, which is much higher than the speed of the splitting of hydraulic splitters. Due to these characteristics, the productivity of the wood splitter lies in the range from 15 to 30 m3 per shift. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.

The main working element of the wood splitter is a knife on which the process of cutting is directly passing. The woodcutter knife is made of high-quality steel which necessarily passes the heat treatment process at our enterprise with the help of modern HIGH FREQUENCY INDUCTION HEATING MACHINE installation.

On a wood-splitter DК-640BD the petrol drive by capacity of 6,5 hp is establishe (brand Sadko), fuel consumption of this engine is only 500 grams of gasoline A-92 for 1 hour of operation. The engine is equipped with a friction clutch of our design that protects the whole mechanism of the wood splitter from excessive loads.

The woodcutter DK-640BD is installed on a rigid frame made of I-beam and profile pipe. On the frame there are two pneumatic wheels for the convenience of moving the wood splitter through the territory. The wood splitter table has special stiffeners that allow you to withstand large logs.

The wood shredder DK-640 BD is completely manufactured at our enterprise. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all structures are stripped. The wood shredder is covered with powder paint, which significantly extends the service life of the structures.We are confident in our products, so we provide a 12-month guarantee for wood shredder DK-640BD. In addition, we, as a manufacturer, produce both warranty and post-warranty maintenance of the wood splitter DK-640BD.

By purchasing a chipper from us you get a reliable assistant on the way to your energy independence!
