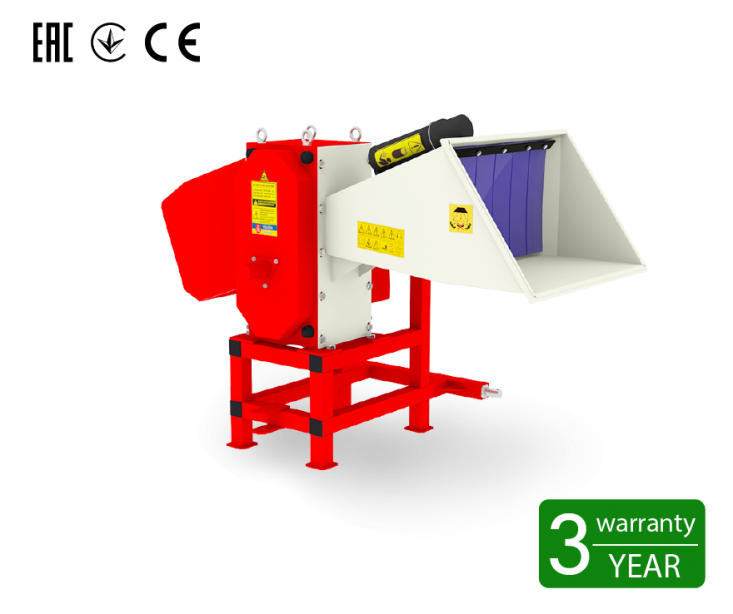

Wood chipper AM-120TR is designed for processing and recycling by cutting branches, rods, duplexes, lamellas and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 9 ... 18 cm, this size is not regulated but depends on the diameter (thickness) of the raw material. The wood chipper AM-120TR is capable to cut branches up to 12 cm in diameter depending on humidity and wood species. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating appliances, as well as for the production of charcoal.
The productivity of the AM-120TR is up to 6 cubic meters of finished products per hour. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.
The wood chipper AM-120TR is driven from the tractor PTO shaft and mounted on a standard three-point linkage. The minimum required power of the tractor for working with the chopper branches is 25 hp. To connect the tractor to the chopper, we recommend using a cardan shaft of class T5 with a friction and overrunning clutch that protects the chaff from the branches and the tractor from overloading.
The working element of the wood chipper is knives. The wood chipper AM-120TR has 6 knives, the knives are made of AISI 5140 steel, have a double grinding angle and necessarily pass the heat treatment process on a modern HIGH FREQUENCY INDUCTION HEATING MACHINE installation. Cutting knives are inserted into the milled groove of the working shaft, this technology significantly reduces the load on the fixing bolts of the knives.
A direct discharge hopper is installed on the branch grinder AM-120TR for bulk shipment of crushed raw materials. Additionally, you can order a complete set with an output hopper. The discharge hopper has two grid mounts and a slide switch that allows you to select the desired discharge direction. This design allows you to significantly speed up the process of packing chopped firewood. For the chopper AM-120TR branches suitable standard mesh size 50x80cm.
Also, the input hopper is equipped with a curtain made of transparent PVC to protect the operator from chips during operation
The wood chipper AM-120TR is completely produced at our enterprise. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all constructions are stripped. The shredder is covered with powder paint, which significantly extends the life of the constructions.
We are confident in our products; therefore, we provide a 36-month guarantee for the AM-120TR. In addition, we, as a manufacturer, produce both guarantee and post-warranty maintenance of the wood chipper AM-120TR.
By purchasing a wood chipper from us you get a reliable assistant on the way to your energy independence!
