Wood chippers
AM-120SH
Electric
120 mm
12 m3/h

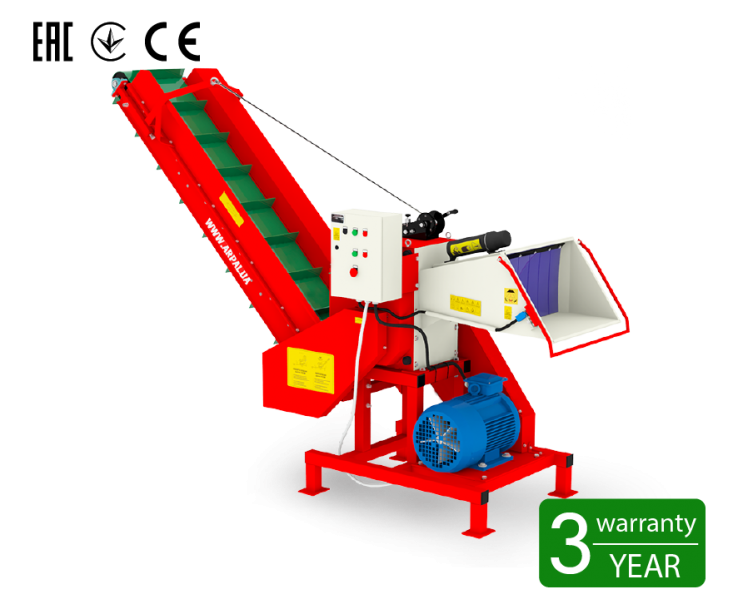

Wood chipper AM-120SH cut branches, rails, drifts and other wood waste on pieces of 90-180 mm long. The feature of the wood hipper is a reinforced cutting module with the ability to cut wide materials such as duplexes, the maximum width of the raw material is 280 mm. The maximum diameter of the branches is 120 mm, depending on the species and moisture of the tree. The wood chipper is equipped with an electric motor with a power of 18 kW and operates on a 380 V power grid.
Price: 3 460Euro
Technical parameters
Extended description
OVERALL DIMENSIONS AND MASS CHARACTERISTICS
Length:
1570 mm
Width:
890 mm
Height:
2760 mm
Weight:
600 kg
Inlet slot size:
160х280 mm
MAIN WORKING CHARACTERISTICS
Height of the conveyor:
2,5 m
Max. productivity:
12 m3/h
Soft wood max. diameter:
120 mm
Hard wood max. diameter:
100 mm
Length of ready pieces:
90...180 mm
Quantity of knives:
6 pcs
Max. turns on cutting knives:
360 rpm
ENGINE CHARACTERISTICS
Engine power:
18 kW
Max. turns on engine shaft:
3000 rpm
Voltage:
380 V

Wood chipper AM-120SH is designed for processing and utilization by cutting branches, rods, duplexes, lamellas and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 9 ... 18 cm, this size is not regulated but depends on the diameter (thickness) of the raw material. Wood chipper AM-120SH is capable of cutting branches with a diameter of up to 12 cm, depending on the moisture and wood species. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating appliances, as well as for the production of charcoal.  A special feature of the AM-120SH is the reinforced cutting module with increased blade width. Thus, the chopper AM-120SH is able to cope with a wide material such as duplexes and boards, with a width of up to 280 mm.

The productivity of the wood chipper AM-120 SH makes up to 12 cubic meters of finished products per hour. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work. The grinder of branches AM-120SH is equipped with an electric motor of 18 kW. On the wood chipper is installed the engine control panel which has a system of engine protection against overloads. The installation of the electric motor makes it possible to use the chopper of the branches inside the premises without fear of the harmful exhaust gases of the gasoline drives.

The working element of the chopper is knives. On the shredder of AM-120SH 6 knives are installed. The knives are made of AISI 5140 steel, they have a double angle of grinding and necessarily pass the heat treatment process on a modern High Frequency
Induction Heating Machine. Cutting knives are inserted into the milled groove of the working shaft, this technology significantly reduces the load on the fixing bolts of the knives. The AM-120 SH is installed on a rigid frame of profile pipe which has paws with which it is possible to fix the chopper of branches on any convenient surface.

The wood chipper AM-120 SH is equipped with a conveyor that allows you to send the chopped material directly to the car trailer or to a special container (container, big bag). The conveyor allows you to significantly increase labor productivity and reduce the number of personnel when working with wood chipper. In conveyors we use only high-quality PVC tapes produced in Poland or Holland.The chopper AM-120SH is equipped with a special safety knob that is located on the edge of the input hopper and serves for an emergency stop of the chopper branches during operation. Also, the input hopper is equipped with a curtain made of transparent PVC to protect the operator from chips during operation.

Wood chipper AM-120SH is completely produced in our company. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all constructions are stripped. The shredder is covered with powder paint, which significantly extends the life of the constructions.

We are confident in our products; therefore, we provide a 36-month guarantee for the AM-120SH. In addition, we, as a manufacturer, produce both guarantee and post-warranty maintenance of the wood chipper AM-120SH.

By purchasing a wood chipper from us you get a reliable assistant on the way to your energy independence!
