Wood chippers
АМ-120Е
Electric
120 mm
6 m3/h

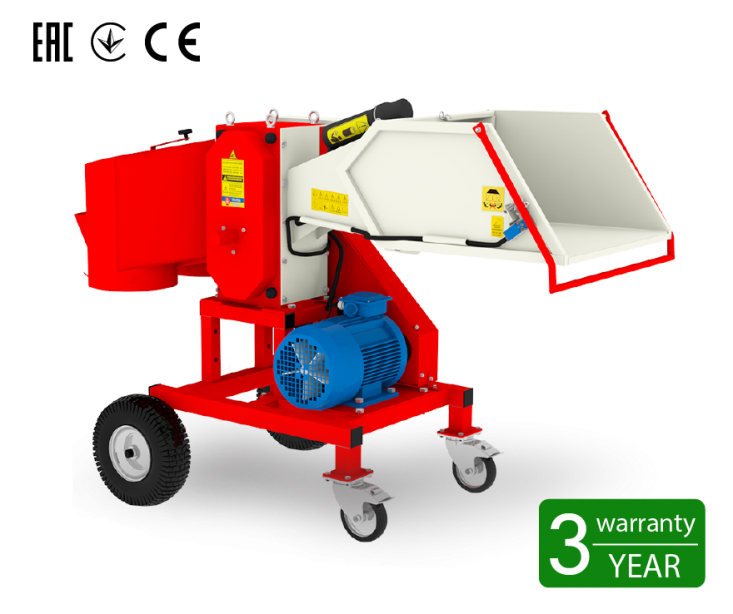

Wood chipper AM-120E is chopping branches, slats, drifts and other wood waste into billets 90-180 mm long. The maximum diameter of the branches is 120 mm, depending on the species and moisture of the tree. Finished firewood enters the bunker which has the ability to pack the product into the sacks of 500x800 mm. The wood chipper is equipped with an electric motor with a power of 11 kW and operates on a 380 V network.
Price: 2 100 Euro
Technical parameters
Extended description
OVERALL DIMENSIONS AND MASS CHARACTERISTICS
Length:
1750 mm
Width:
980 mm
Height:
1320 mm
Weight:
295 kg
Inlet slot size:
160х180 mm
MAIN WORKING CHARACTERISTICS
Max. productivity:
6 m3/h
Soft wood max. diameter:
120 mm
Hard wood max. diameter:
100 mm
Length of ready pieces:
90...180 mm
Quantity of knives:
6 pcs
Max. turns on cutting knives:
360 rpm
ENGINE CHARACTERISTICS
Engine power:
11 kW
Max. turns on engine shaft:
3000 rpm
Voltage:
380 V

The wood chipper AM-120Е is intended for processing and recycling by a method of cutting of branches, rails, duplexes, lamellas and other wood waste. The shredder of the branches turns the raw material into pieces with a length of 9 ... 18 cm, this size is not regulated but depends on the diameter (thickness) of the raw material. Branch chopper AM-120E is capable of cutting branches with a diameter of up to 12 cm, depending on the humidity and wood species. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, stoves and other heating appliances, as well as for the production of charcoal. The productivity of the AM-120 is 6 cubic meters of finished products per hour. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.The wood chipper AM-120E is equipped with an electric motor with a power of 11 kW with a power of 380V. On the shredder is installed the engine control panel which has a system of engine protection against overloads. The installation of the electric motor makes it possible to use the chopper of the branches inside the premises without fear of the harmful exhaust gases of the gasoline drives.

The working element of the wood chipper is knives. The wood chipper AM-120E has 6 knives, the knives are made of 40H steel, have a double grinding angle and necessarily pass the heat treatment process on a modern HIGH FREQUENCY INDUCTION HEATING MACHINE installation. Cutting knives are inserted into the milled groove of the working shaft, this technology significantly reduces the load on the fixing bolts of the knives.

Wood chipper AM-120E is installed on a rigid frame from a profile pipe that is equipped with wheels for the convenience of moving the shredder branches through the territory. Two pneumatic wheels and two turning wheels with a brake are mounted on the frame for the convenience of maneuvering and fixing the chopper in place. On the wood chipper AM-120E, an outlet hopper is installed that can pack finished products into sacks. The unloading hopper has two fasteners under the mesh and a slide switch which allows you to select the desired direction of discharge.

This design allows you to significantly accelerate the process of packing chopped firewood. For the AM-120E chopper, standard mesh sizes of 50x80 cm are suitable. The AM-120E branch chopper is equipped with a special safety knob which is located on the edge of the input hopper and serves for an emergency stop of the chopper branches during operation. Also, the input hopper is equipped with a curtain made of transparent PVC to protect the operator from chips during operation

The wood chipper AM-120E is completely produced at our enterprise. We control the quality of all stages of our production, all landing surfaces are obligatory grinding. Quality control of welded joints is carried out. Before painting, all constructions are stripped. The shredder is covered with powder paint, which significantly extends the life of the constructions.

We are confident in our products; therefore, we provide a 36-month guarantee for the AM-120E. In addition, we, as a manufacturer, produce both guarantee and post-warranty maintenance of the wood chipper AM-120E.

By purchasing a wood chipper from us you get a reliable assistant on the way to your energy independence!
